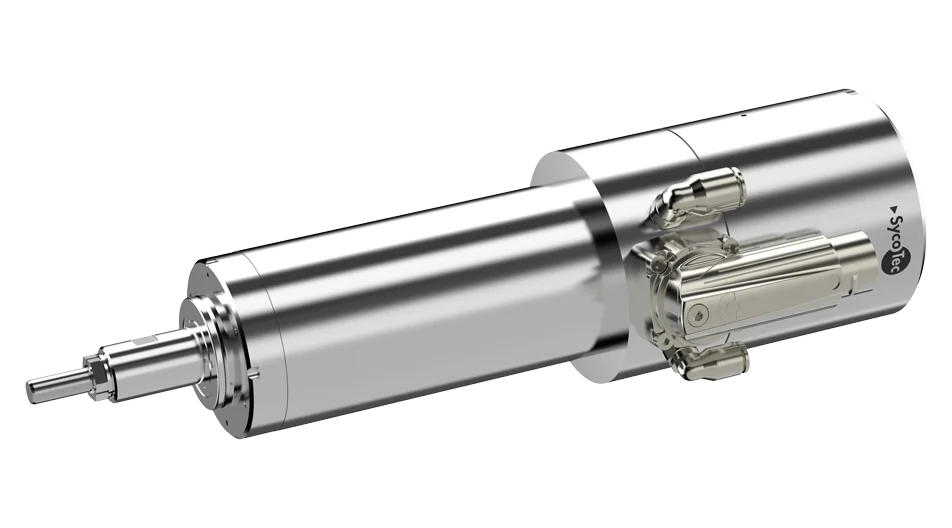

6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55
6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

Vendor: Sycotec
SKU: 20034445
Availability: In Stock
Dhs. 21,592.00 AED
Dhs. 21,592.00 AED
Subtotal: Dhs. 21,592.00
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

Sycotec

6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

Dhs. 21,592.00
6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55
6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

Sycotec

6045 DC-C5-80-20-EP4 HF Motor Spindle – 80,000 RPM, 172V, IP55

Dhs. 21,592.00
Products Specifications
Products Specifications
x
Application Drilling, milling, grinding
Housing diameter 45 mm
Motor type Brushless DC motor (BLDC)
Speed range 5,000 – 80,000 min-1
Frequency 83 – 1,333 Hz
Voltage 172 V
Current S1: 10.3 A, max. 17 A
Torque S1: 24.5 Ncm, max. 44.5 Ncm
Power S1: 2,000 W, max. 3,700 W
Motor protection PTC
Weight 1,85 kg
Bearing 2 x hybrid, lifetime lubricated
Run-out (taper) ≤ 1.0 µm
Chuck clamping range Ø max. 6 mm
Collet type C5
Tool change Pneumatic Direct 4 -4.5 bar
(hose Ø 4 mm)
Collet stop Yes
Taper cleaning Yes
Cooling system Cooling through clamping device
Integrated cooling channels for external
Tool cooling
Protection class IP 55
Protected against dirt and cooling lubricants Yes
Housing material Stainless steel
Sensors Motor temperature sensor
Cable / connector type 915
Inverter recommendation e@syDrive 4638 + Choke
Overview
Overview
x

Discover the first-class HF motor spindle for industrial applications in CNC systems with outstanding parameters. Our high-frequency motor spindle offers precise performance, reliability and efficiency to meet the requirements of demanding manufacturing processes. Learn more about the optimal integration of this spindle into your CNC system and increase the productivity of your operation with state-of-the-art technology.

Accessories
Accessories
x
Cursor
Collet Chuck C5 – Draw-In Type, DLC Coated, Ø3–6mm (1/8″)
Sycotec

Collet Chuck C5 – Draw-In
Type, DLC Coated, Ø3–6mm (1/8″)

Dhs. 1,083.00
Frequency inverter e@syDrive 4638
Sycotec

Frequency inverter e@syDrive 4638

Dhs. 19,526.00
Product Part
Product Part
x
Cursor
Document
Document
x

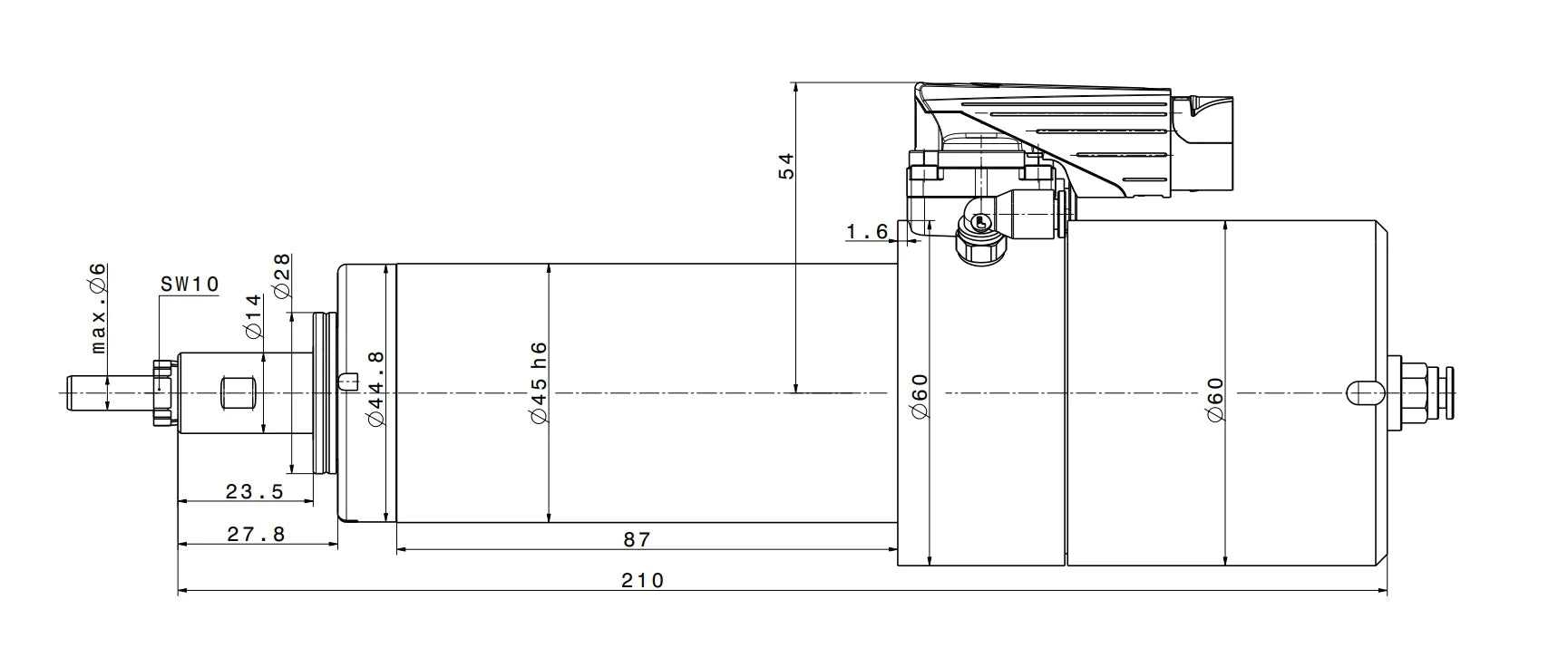

  • CAD

    2.003.4445_6045-DC-C5-80-20-EP4.stp–\t9.09 MB

  • Data sheet

    DS_6045-DC-C5-80-20-EP4_2.003.4445_2025-01.pdf–\t262.96 KB

  • Certificates

    KE_Spindel_6045_7366-06.pdf–\t306.07 KB
