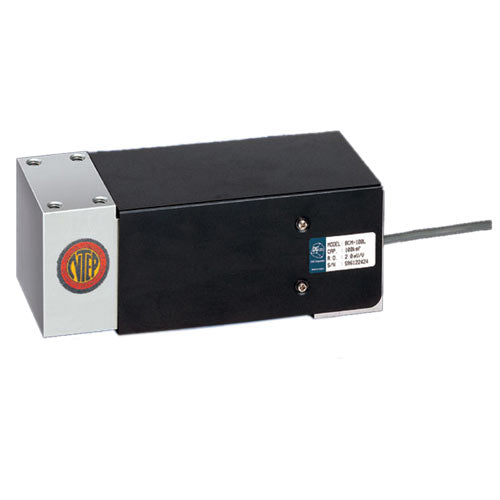

BCM Series

BCM Series

Single Point Load Cell
Vendor: CAS
SKU: BCM-50L
Availability: In Stock
Product Type: Single Point
Dhs. 984.00 AED
Dhs. 984.00 AED
Subtotal: Dhs. 984.00
Model: Default Title
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

BCM Series

CAS

BCM Series

Dhs. 984.00
BCM Series

CAS

BCM Series

Dhs. 984.00
Model: Default Title
Products Specifications
Products Specifications
x
SKU BCM Series
Rated Output 2 mV/V ± 10%
Combined Error < 0.02% R.O.
Repeatability < 0.01% R.O.
Creep < 0.017% R.O.
Temperature Effect on Zero 0.014
Recommended Excitation Voltage DC 10V
Maximum Excitation Voltage DC 15V
Zero Balance ± 5% R.O.
Input Resistance 400 ± 20 ohms
Output Resistance 350 ± 3.5 ohms
Insulation Resistance > 2000 Megohms
Cable Length 10’ / 3.3m - 4 or 6 conductor with shield
Compensated Temp Range -10°C - +40°C
Safe Overload 150% Rated Capacity
Protection Class IP 65
Country of Manufacture South Korea
Capacity 3K , 75 kg , 100 kg
Overview
Overview
x

Features

  • 50 kgf (100 lb) up to 500 kgf (1000 lb) versions
  • Aluminum Alloy Construction
  • Compatible with Other Sources
  • Legal for Trade

Applications

  • Bench Scales
  • Platform Scales
  • Check Weighing Systems
