Free Shipping

CC-805

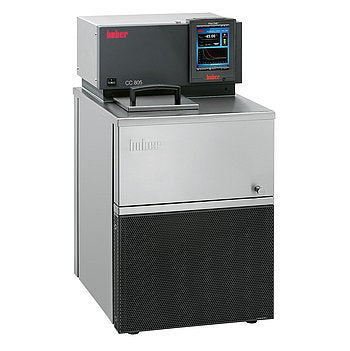

Name: CC-805
Brand: Huber
SKU: 2024.0002.01
Price: 156012.0 USD
Availability: InStock

Performance Characteristics Refrigeration bath circulators are suitable for controlling the temperature of externally connected applications and thermoregulation...

Vendor: Huber

SKU: 2024.0002.01

Availability: In Stock

Product Type: CC models, to -90°C

Dhs. 156,012.00 AED; Dhs. 156,012.00 AED
Unit price: per

Quantity:

Subtotal: Dhs. 156,012.00

I agree with Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

Vendor: Huber

CC-805

Dhs. 156,012.00

I agree with

Quantity:

Vendor: Huber

CC-805

Dhs. 156,012.00

Products Specifications
Overview
Accessories
Product Part
Document

Temperature range	-80...100 °C
Temperature stability	±0,02 K
Controller	Pilot ONE
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	410 x 480 x 764 mm
Weight, net	91 kg

Heating capacity

1,2 kW

Cooling capacity

100	0,5
20	0,5
0	0,5
-20	0,4
-40	0,3
-60	0,3
-80	0,06
°C	kW

Refrigeration machine

air-cooled, CFC- and HCFC-free

Refrigerant 1st stage

R-452A (A1, H280)

Refrigerant quantity 1st stage

0,51 kg

Refrigerant 2nd stage

R-23 (A1, H280)

Refrigerant quantity 2nd stage

0,26 kg

Delivery capacity pressure pump max.	25 l/min; 0,7 bar
Delivery capacity suction pump max.	18,5 l/min; 0,4 bar
Pump connection	M16x1 AG male
Max. permissible viscosity	50 mm²/s
Pump speed adjustable	Yes
Pump characteristics	Pressure and suction pump, variable speed

External sensor connection	Pt100
Interface digital	Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature	5...40 °C
Sound pressure level	58 dB(A)
Bath opening WxD/BD	120 x 110 / 150
Bath volume	5 l
Filling volume min.	4 l
Power supply	208V 2~ 60Hz
Current consumption max.	13,5 A
Fuse	2x16 A

Functions overview

Pilot ONE controller with Plug & Play technology

Precise temperature control

5.7“ touchscreen and comfortable menu navigation

Overtemperature and low level protection

Safety class III/FL (DIN 12876)

Powerful pressure/suction pump

Programmer with calendar and clock functions

2-point calibration

RS232 interface and Pt100 connection

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
