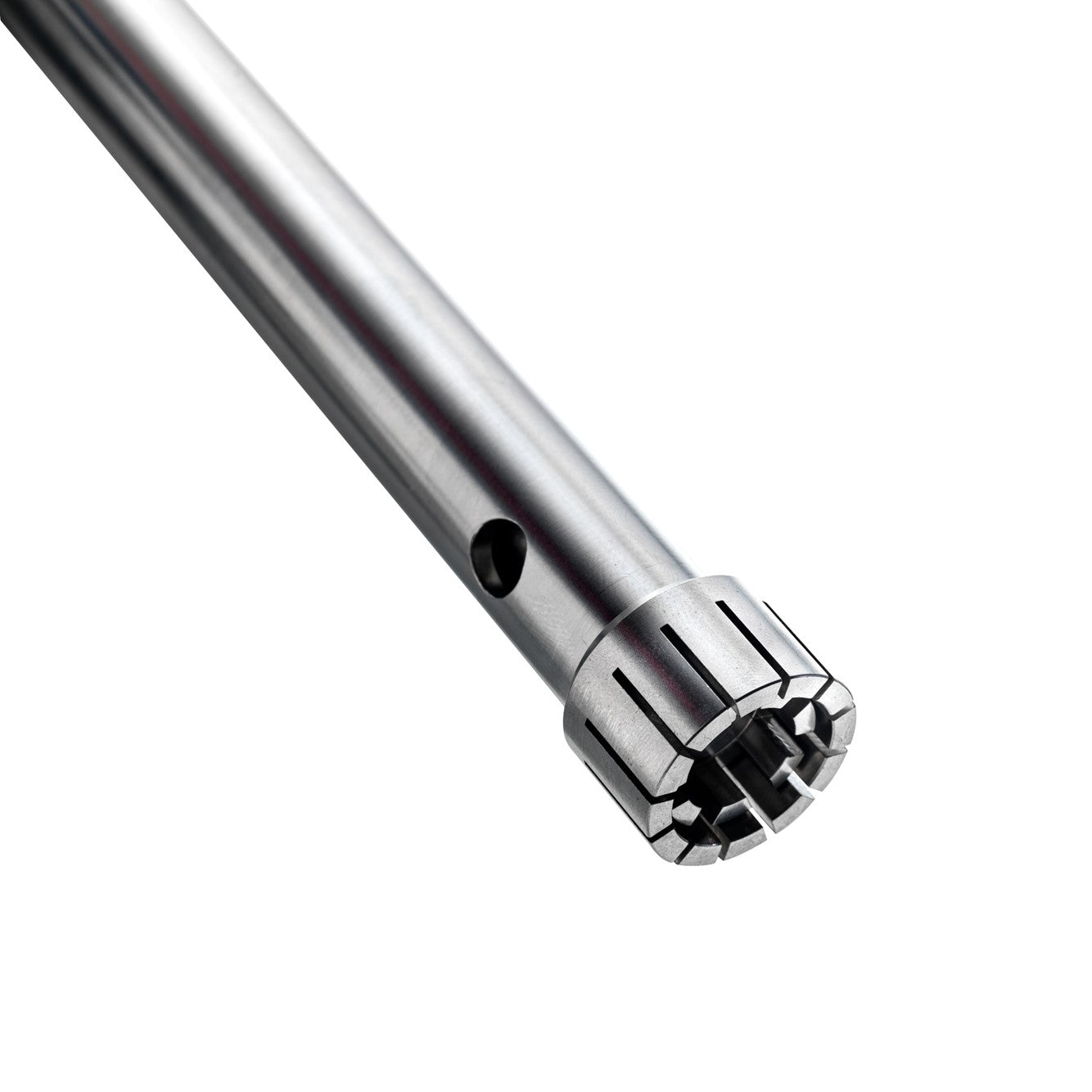

D20-S25F-P-R25E Dispersing tool

D20-S25F-P-R25E Dispersing tool

High peripheral speed emulsifying tool suitable for particularly fine liquid-liquid dispersions.
Vendor: Velp Scientifica
SKU: A00000480
Availability: In Stock
Product Type: Dispersers
Dhs. 7,815.00 AED
Dhs. 7,815.00 AED
Subtotal: Dhs. 7,815.00

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

D20-S25F-P-R25E Dispersing tool

Velp Scientifica

D20-S25F-P-R25E Dispersing tool

Dhs. 7,815.00
D20-S25F-P-R25E Dispersing tool

Velp Scientifica

D20-S25F-P-R25E Dispersing tool

Dhs. 7,815.00
Products Specifications
Products Specifications
x
Rotor diameter 18 mm
Stator diameter 25 mm
Stator/rotor gap 0.5 mm
Volume (H2O) 100 - 2,500 ml
Immersion depth 40 - 175 mm
Max. speed 25,000 rpm
Max. circumferential speed 23.6 m/s
Ultimate fineness, emulsions 1 - 5 µm
Ultimate fineness, suspensions 5 - 25 µm
Max. allowable working temperature 180 °C
Materials in contact with the medium AISI 316L, PTFE
Suitable for solvents Yes
Overview
Overview
x

Samples and applications

  • Preparation of spreadable creams and soluble powders (tea, coffee, milk)
  • Suspensions/emulsions for infusion/injection
  • Preparation of pharmaceutical ointments and creams
  • Preparation of (soap, shampoo, conditioner, and creams)
  • Water analysis
  • Preparation of pigments, inks and paints
  • Preparation of liquid crystals for displays
  • Preparation of biodiesel

Key features

  • Volume range (H2O): 100 - 2,500 ml
  • Stator diameter: 25 mm
  • Rotor diameter: 18 mm
  • Stator/rotor gap: 0.5 mm
  • Immersion depth: 40 - 175 mm
  • Max. allowable working temperature: 180 °C
  • Materials in contact with medium: PTFE, AISI 316L
  • Suitable for solvents
  • Sterilization and cleaning methods: it is possible to sterilize all the components of the dispersing tool in different ways according to the construction materials and the sample processed
For further information and details, see the section 'TECHNICAL DATA'.
