ELVAS-1

Vendor: IKA
SKU: 25000390
Availability: In Stock
Product Type: Viscometers
Dhs. 5,809.00 AED
Dhs. 5,809.00 AED
Subtotal: Dhs. 5,809.00

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

Ramo Trading

IKA

ELVAS-1

Dhs. 5,809.00

IKA

ELVAS-1

Dhs. 5,809.00
Products Specifications
Products Specifications
x
Spindle geometryCylinder
ConnectionThread M2.5 LH
Diameter25.15 mm
Spindle length161 mm
Sample volume16 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi1 mPa.s
Max. FSR match ROTAVISC lo-vi2000 mPa.s
Min. FSR match ROTAVISC me-vi3.2 mPa.s
Max. FSR match ROTAVISC me-vi2000 mPa.s
Min. FSR match ROTAVISC hi-vi I6.4 mPa.s
Max. FSR match ROTAVISC hi-vi I2000 mPa.s
Min. FSR match ROTAVISC hi-vi II25.6 mPa.s
Max. FSR match ROTAVISC hi-vi II2000 mPa.s
Material in contact with mediumstainless steel 1.4404, LDPE
Dimensions (W x H x D)300 x 110 x 275 mm
Weight1.753 kg
Overview
Overview
x

ELVAS-1

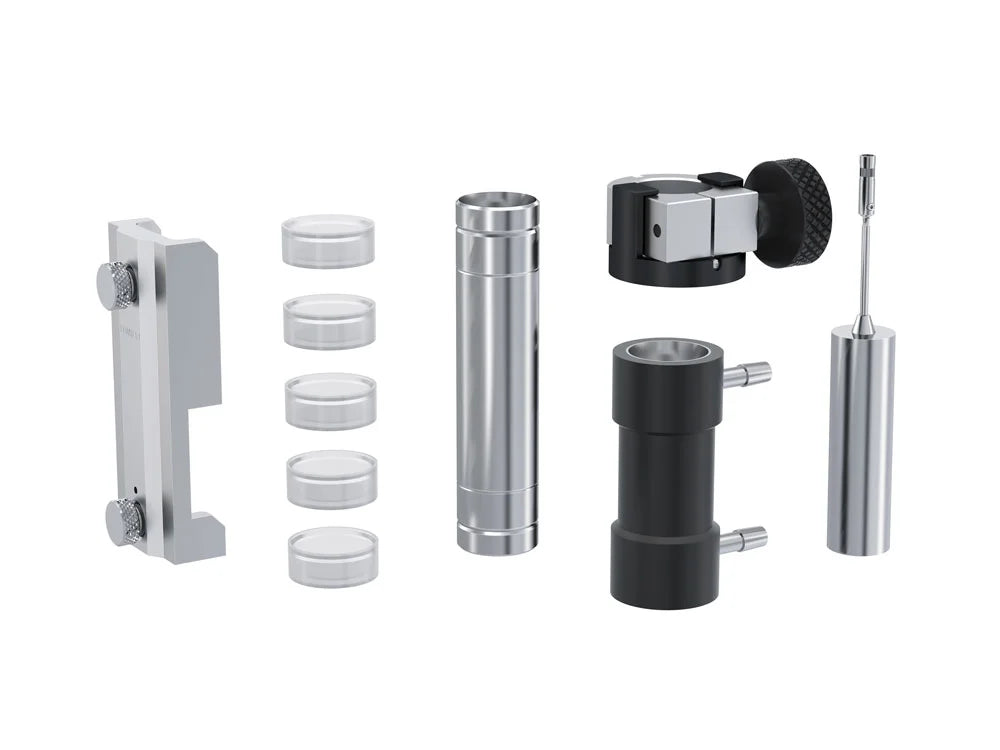

The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels. The maximum measurable viscosity is 2000 mPas.
