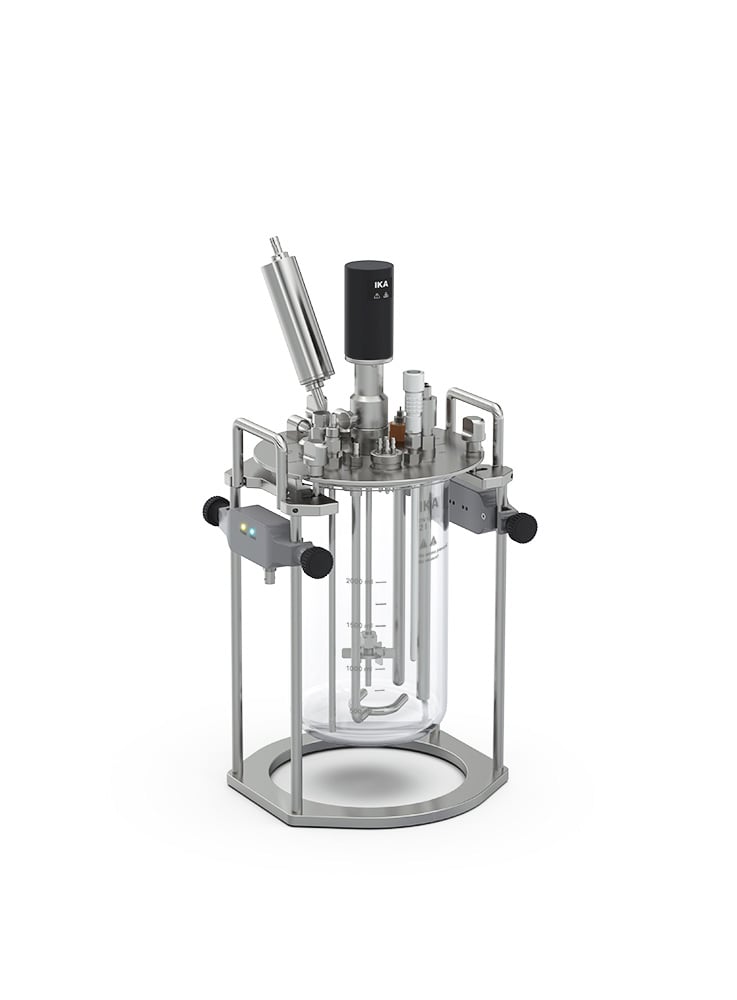

| Reactor | Fermenter |
| Volume | 2 l |
| Type | single wall |
| Multi use | yes |
| Autoclavable | yes |
| Inner diameter | 130 mm |
| Ratio = height / inner diameter | 2 |
| Useable volume min. | 0.6 l |
| Useable volume max. | 3.0 l |
| Reactor vessel material | borosilicate glass |
| Reactor lid material | stainless steel 1.4404 |
| Net weight reactor vessel | 1.42 kg |
| Net weight reactor assembled | 9.11 kg |
| Number lid ports | 14 |
| Lid ports (Baffle) | 1 |
| Lid ports (pH) | 1 |
| Lid ports (Reserve) | 3 |
| Lid ports (Condenser) | 1 |
| Lid ports (Cooling Finger) | 1 |
| Lid ports (Inoculation) | 1 |
| Lid ports (Harvest Pipe) | 1 |
| Lid ports (Sparger) | 1 |
| Lid ports (Feed) | 0 |
| Lid ports (4in1) | 1 |
| Lid ports (Temperature) | 1 |
| Lid ports (DO) | 1 |
| Lid ports (Level) | 1 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Motor coupling | shaft feedthrough |
| Harvest pipe outer diameter | 6 mm |
| Harvest pipe inner diameter | 4 |
| Harvest pipe design | straight |
| Harvest pipe, height adjustable | yes |
| Feeding port, outer diamter | 4.5 mm |
| Feeding port, inner diamter | 2 mm |
| Feeding port, amount | 4 |
| Inoculation port, outer diamter | 6 mm |
| Inoculation port, inner diameter | 4 mm |
| Sparger | Ring sparger |
| Sparger, outer diameter | 8 mm |
| Sparger, inner diameter | 6 mm |
| Sparger pore size | 500 üm |
| Cooling finger | yes |
| Cooling finger connection threat | M27x3 mm |
| Cooling finger water connection, outer diamter | 8 mm |
| Stirrer design | Propeller stirrer, 6-bladed |
| Stirrer diameter 6 blade impeller | 48 mm |
| Ratio = stirrerdiameter 6blade / inner diameter reactor | 0.37 |
| Stirrer quantity | 1 |
| Condenser | yes |
| Condenser, connection threat | M16x2 |
| Type of cooling | Vertical condenser |
| Condenser Temperature min. | 5 ðC |
| Temperature min. / Condenser with Peltier | 15 ðC |
| Temperature min. / Condenser with water cooling | 5 ðC |
| Filtertype | sterile filter |
| Filtermaterial | PTFE reinforced with PP |
| Filter housing material | PP |
| Pore size | 0.22 üm |
| Filter heater | yes |
| Spin filter | 40 üm |
| Baffle | Accessory |
| Temperature measuring | yes |
| Working temperature sensor | PT1000 |
| pH sensor | yes |
| pH sensor connection threat | PG 13.5 |
| pO2 sensor | yes |
| pO2 sensor connection threat | PG 13.5 |
| Level sensor | IKA HA.s.lv |
| Foam sensor | IKA HA.s.fo |
| Turbidity sensor | Accessory |
| Conductivity sensor | Accessory |
| CO2 sensor | Accessory |
| Stirring motor | yes |
| Speed range | 1 - 2200 rpm |
| Flowrate Air min. | 100 cc/min |
| Flowrate Air max. | 20000 cc/min |
| Flowrate O2 min. | 100 cc/min |
| Flowrate O2 max. | 20000 cc/min |
| Flowrate N2 min. | 100 cc/min |
| Flowrate N2 max. | 20000 cc/min |
| Flowrate CO2 min. | 100 cc/min |
| Flowrate CO2 max. | 20000 cc/min |
| Dimensions (W x H x D) | 230 x 490 x 230 mm |
