Products Specifications
Products Specifications
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

600

kg

Minimum load

250

g

Preload range

60

kg

Readability [d]

5

g

Tare range

-600

kg

Repeatability

7.5

g

Linearity

±15

g

Stabilization time

3

s

Adjustment

internal (automatic)

Display

10.1″ graphic colour touchscreen

Weighing pan dimensions

1000×800

mm

Packaging dimensions W x D x H

1000×1200×666

mm

Net weight

126

kg

Gross weight

160

kg

Protection class

IP 66 / 67 construction, IP 66 / 67 / 69 terminal

Construction

Stainless steel AISI304

Weighing pan material

Stainless steel AISI304

Communication interface

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)

Optional interfaces

module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC)

Power supply

100 – 240 V AC 50/60 Hz

Operating temperature

+10 – +40

°C

Relative humidity

15% – 80%

Overview
Overview
x

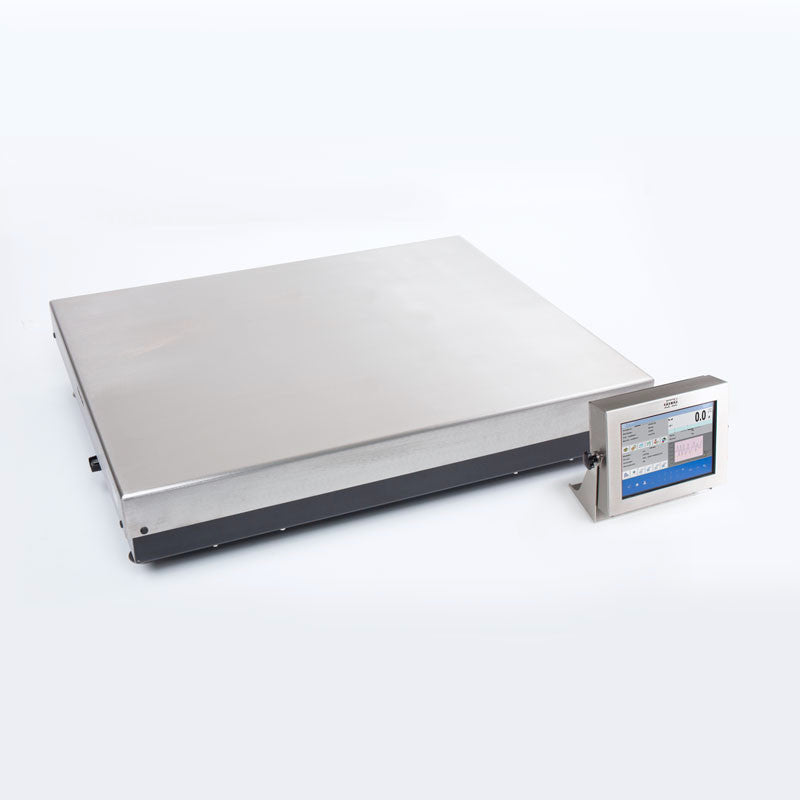

Maximum Robustness


The HRP high resolution scales are very robust. Their platforms are recognised to have an IP 67 level of protection. They feature additional sealing elements to protect against dust, dirt, and moisture and can thus be cleaned with a pressure washer.



9 advantages

9 advantages

The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved  9 advantages

MONO

BLOCK technology. The new – taller and larger – 9 advantages

MONO

BLOCK has enabled the best repeatability and speed in the class of high-resolution industrial weighing platforms.






Repeatability not repeatable by others

Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort.




For such industries as pharmaceutical, chemical, food and…

For such industries as pharmaceutical, chemical, food and…

HY10.HRP H scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries. The HY10.HRP and HX7.HRP scales whose terminals are made of stainless steel can be used even in the most demanding wet environments.



Choose a terminal

Choose a terminal

HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.

The PUE 7.1 terminal has:
  • 5.7-inch color resistive display
  • a touch-sensitive keyboard
  • ABS plastic housing
  • IP 43 protection rating
  • communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®,
  • optional additional modules: additional A/D converter module DP6.

The PUE HY10 terminal features:
  • 10.1-inch color graphic display
  • touchscreen keyboard
  • stainless steel housing
  • IP 68/69 degree of protection
  • communication interfaces:  2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
  • optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, moduł wyjść analogowych, 12 IN/ 12 OUT.



The power of steel

The power of steel

The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.





Do you need ALIBI?

There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.



Use the potential

Use the potential

Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, HY10 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.


Not just weighing

But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of HY10’s working mods.







Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications
