LR 2000.4 Reactor vessel

LR 2000.4 Reactor vessel

Vendor: IKA
SKU: 3064900
Availability: In Stock
Product Type: High Viscosity Reactors
Dhs. 69,266.00 AED
Dhs. 69,266.00 AED
Subtotal: Dhs. 69,266.00
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

LR 2000.4 Reactor vessel

IKA

LR 2000.4 Reactor vessel

Dhs. 69,266.00
LR 2000.4 Reactor vessel

IKA

LR 2000.4 Reactor vessel

Dhs. 69,266.00
Products Specifications
Products Specifications
x
Material in contact with mediumAISI 316L, AISI 316Ti, PTFE
Volume2 l
Vessel inner diameter153 mm
Vessel outer diameter194 mm
Height (room dimension)362 mm
Width (room dimension)180 mm
Depth (room dimension)230 mm
Flange dimensionDN150
Bottom shapeTorispherical head
Bottom drainyes
Bottom valveStandard valve
Bottom drain outlet inner diameter12 mm
Bottom drain outlet outer diameter18 mm
Bottom drain outlet length73 mm
Bottom drain shapestraight
Heating blanketyes
Tempering jacket inlet inner diameter6 mm
Vacuum applicationyes
Tempering jacket oulet inner diameter6 mm
Weight4.955 kg
Overview
Overview
x

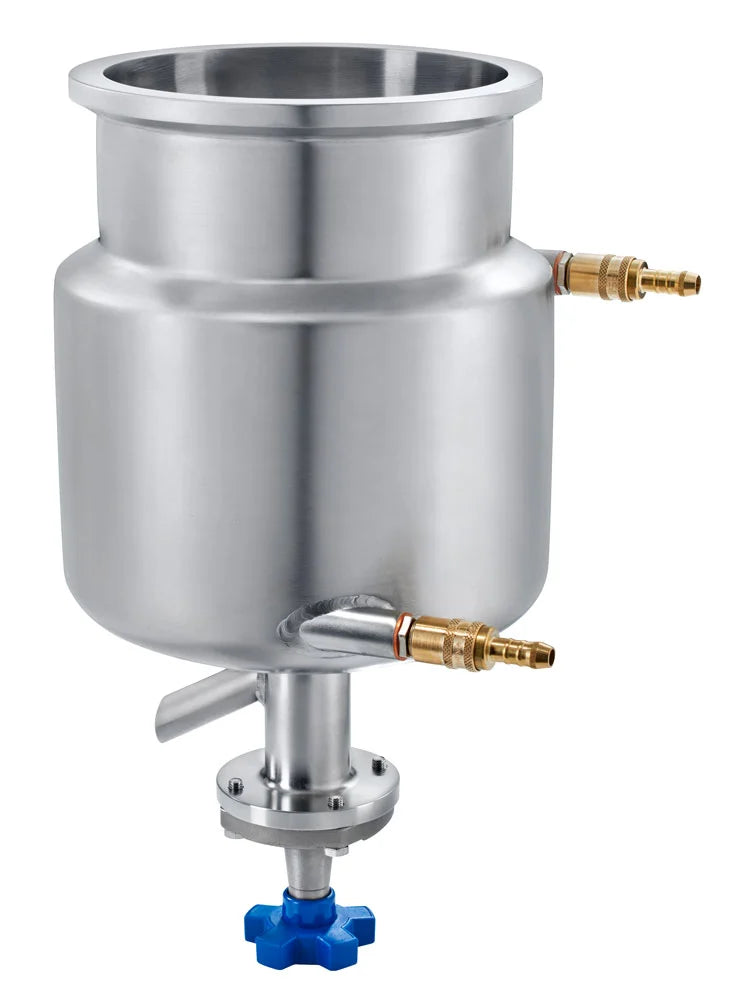

LR 2000.4 Reactor vessel

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: stainless steel 1.4571, PTFE.
Including quick connection adapters with DN 8 Olive for connection of temperature hoses.

Scope of delivery:
Stainless steel reactor incl. quick connection adapters with DN 8 olive.
