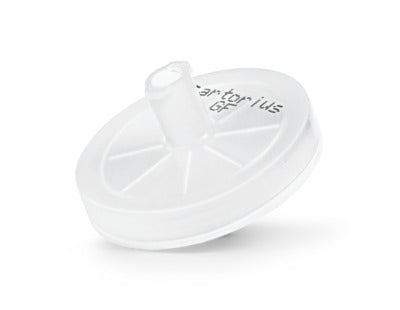

Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Non-sterile Minisart® NML Plus syringe filters are supplied in a pouch in one pack. This reduces waste...
Vendor: Sartorius
SKU: 17824----------K
Availability: In Stock
Product Type: Syringe Filters
Dhs. 445.00 AED
Dhs. 504.00 AED
Dhs. 445.00 AED
Subtotal: Dhs. 445.00
Pack Size: 50

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Sartorius

Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Dhs. 504.00 Dhs. 445.00
Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Sartorius

Minisart® NML Plus 0.7 µm2 GF Syringe Filter

Dhs. 504.00 Dhs. 445.00
Pack Size: 50
Products Specifications
Products Specifications
x

Applications

  • Application
    Sterile filtration and clarification of difficult-to-filter aqueous and organic samples
  • Application Area
    • Clarification
    • Particle removal

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Lock

Dimensions

  • Filter Diameter
    ⌀ 28 mm
  • Filtration Area
    6.2 cm²

General Specifications

  • Filter Paper/Membrane Color
    White
  • Flow Rate
    ≥ 450 mL/min for water at 1 bar (14.5 psi)
  • Total Throughput
    Up to 200 mL
  • pH Range
    4.0 – 8.0

Materials of Construction

  • Housing Material
    Methacrylate butadiene styrene (MBS)
  • Membrane Material
    Glass Fiber (GF)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)
  • Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 3.2 bar (44 psi) with water
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    0.7 µm²
  • Retention Rate
    0.7 µm²
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Minisart® NML Plus
  • Device Type
    Syringe Filters
  • Pack Size
    50
  • Packaging
    Bulk packed
  • Sample Type
    Aqueous

Sterility/Purity

  • Delivery Condition
    Non-Sterile
  • Sterilization Method
    • Ethylene oxide
    • Gamma irradiation

Volume

  • Hold-up Volume
    ≤ 100 – 150 µL
Overview
Overview
x

Non-sterile Minisart® NML Plus syringe filters are supplied in a pouch in one pack. This reduces waste and makes the handling easier whenever the application allows the removal of particles or cells from highly particle-laden liquids under non-sterile conditions. The glass fibre prefilter protects the membrane from early clogging and increases total throughput. The very low non-specific binding characteristics of the SFCA membrane makes the filters a perfect choice for biomolecule solutions. The housing is made of the acrylic resin MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. It is glueable, e.g. to tubing, what enables assembly and sterilization by the user. GF and membrane in one filter housing decrease the hold-up volume. If this is no limiting factor a GF-only version is available and can be coupled with a membrane-only syringe filter of choice.

  • A pouch in one pack for less waste
  • GF-only version for higher total throughout
  • Very low non-specific binding
  • PVC-free
Accessories
Accessories
x
Cursor
Product Part
Product Part
x
Cursor
Document
Document
x
  • Catalog

    Laboratory Filtration Products Catalog

  • User Manual

    Minisart® Chemical Compatibility Guide

  • User Manual

    Instructions for Use Minisart® NML Plus | NY Plus High-capacity Sartorius Syringe Filters
