Products Specifications
Products Specifications
x
Metrological parameters
Construction
Electrical parameters
Environmental conditions
Physical parameters
Maximum capacity [Max]

30

kg

Minimum load

5

g

Preload range

3

kg

Readability [d]

0.1

g

Tare range

-30

kg

Repeatability

0.1

g

Linearity

±0.3

g

Stabilization time

2

s

Adjustment

external

Protection class

IP 65

Power supply

100 – 240 V AC 50/60 Hz

Operating temperature

+10 – +40

°C

Relative humidity

15% – 80%

Weighing pan dimensions

212×174

mm

Device dimensions W x D x H

341×236×164

mm

Packaging dimensions W x D x H

580×413×360

mm

Overview
Overview
x

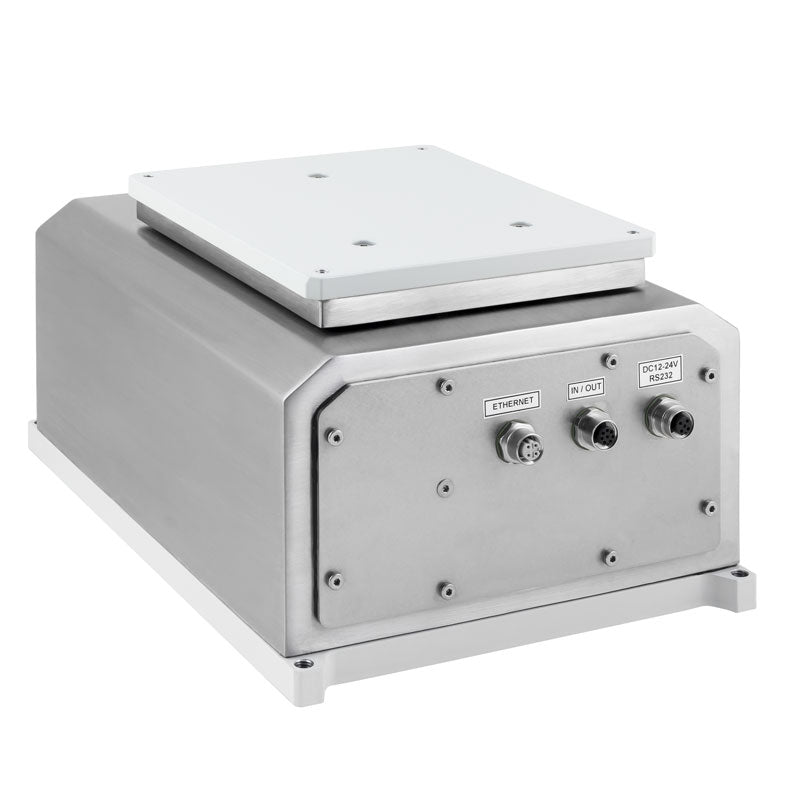

MWLH 30 Electromagnetic Compensation Weighing Module


Operation of professional MWLH electromagnetic high resolution modules is based on an electromagnetic digital converter. The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed. Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.



Design

Design

MWLH Weighing Module features integrated stainless steel housing with degree of protection classified as IP 65. It is connected to signal cables via quick coupling. The module base features four holes located in its corners allowing to fix the module to the base using M8 screws. MWLH Weighing Module comprises aluminium, painted plate with four threaded M6 holes, useful for fixing the weighing pan.

Features:
✓ Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65)
✓ Reading unit of 0,1 g
✓ Ease of adaptation to required usage area
✓ Cooperation with HY terminal
✓ Interfaces: RS 232, RS 485, Ethernet, 2xIN i 2xOUT, Profibus (option).
