Products Specifications
Products Specifications
x
Metrological parameters
Physical parameters
Construction
Components and software
Features of use
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

10100

g

Minimum load

-

Readability [d]

10

mg

Verification unit [e]

-

Tare range

-10100

g

Standard repeatability [5% Max]

5

mg

Standard repeatability [Max]

12

mg

Standard minimum weight (USP)

10

g

Standard minimum weight (U=1%, k=2)

1

g

Linearity

±20

mg

Stabilization time

1.5

s

Adjustment

internal (automatic)

OIML Class

-

Leveling system

semi-automatic – LevelSENSING

Display

10″ graphic colour touchscreen

Delivery components

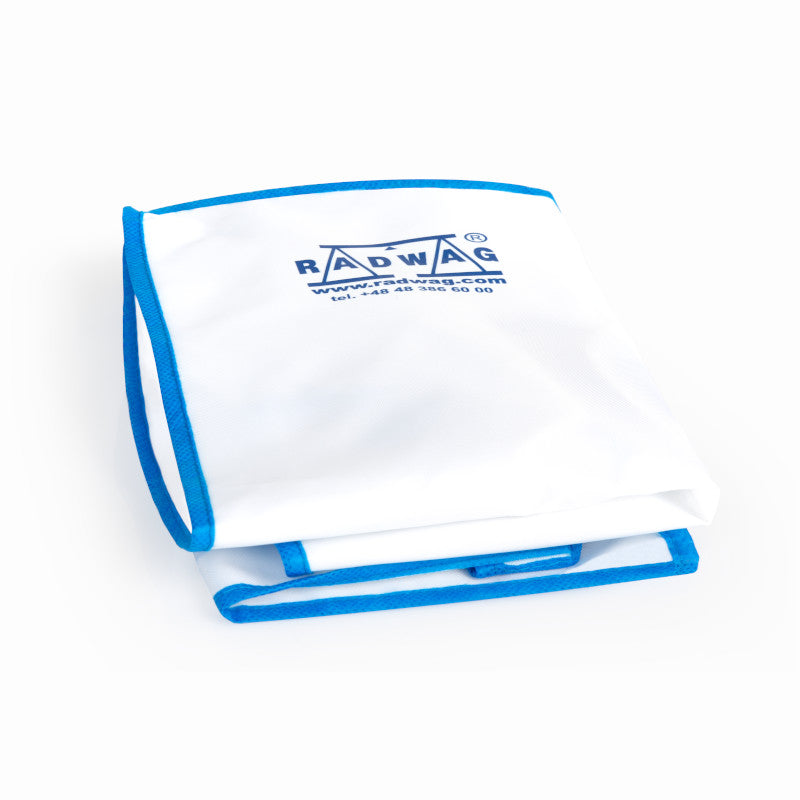

Balance, weighing pan, weighing pan shield, fabric dust cover, power supply

Weighing pan dimensions

195×195

mm

Device dimensions W x D x H

333x206x107

mm

Packaging dimensions W x D x H

720×370×274

mm

Net weight

7.2

kg

Gross weight

9.3

kg

Protection class

IP 43

Database capacity

7

Touch-free operation

2 IR Sensors

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance: 12 – 15V DC 1.6A max; 10–19W*

Operating temperature

+10 – +40

°C

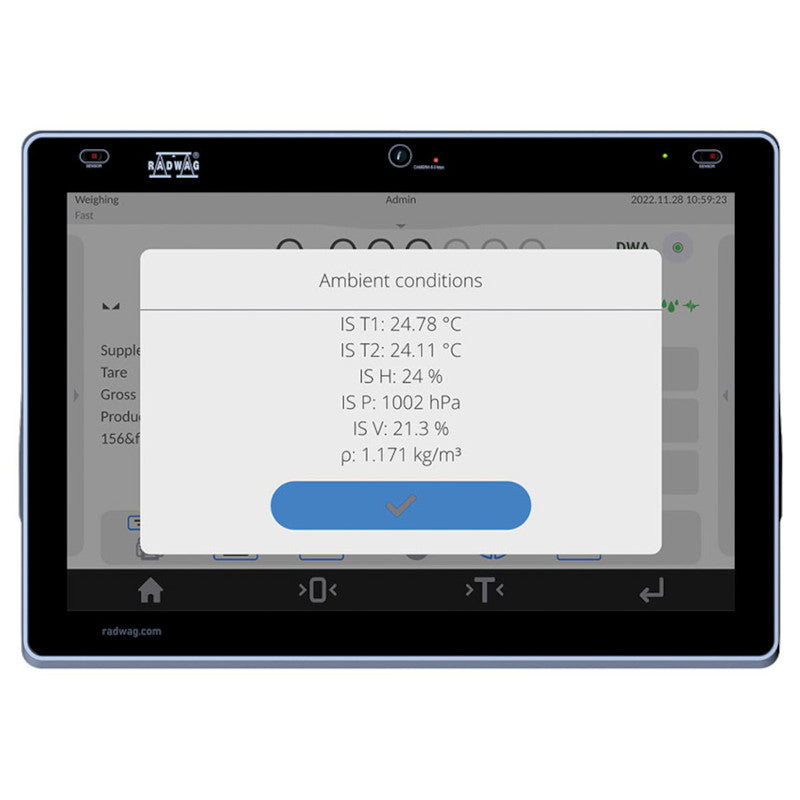

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Storage temperature

-20 – +50

°C

Relative humidity

40% – 80%

Overview
Overview
x

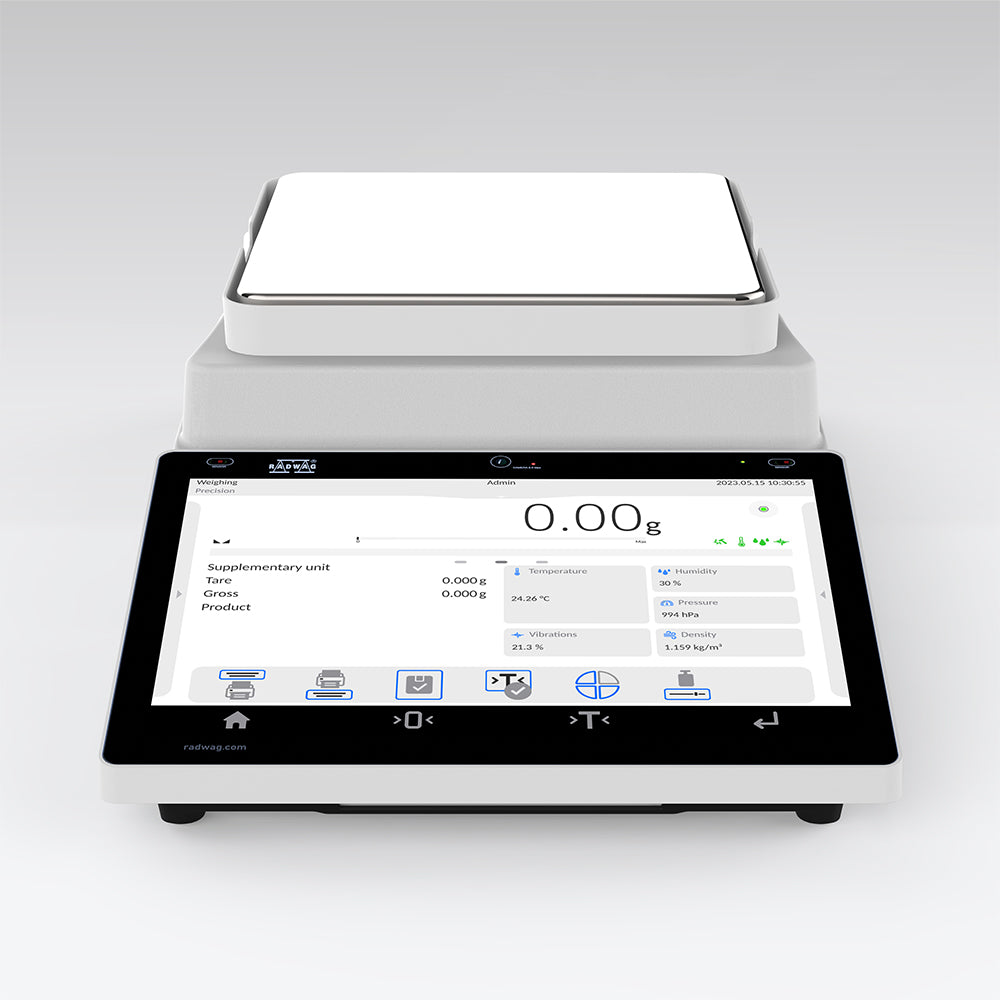

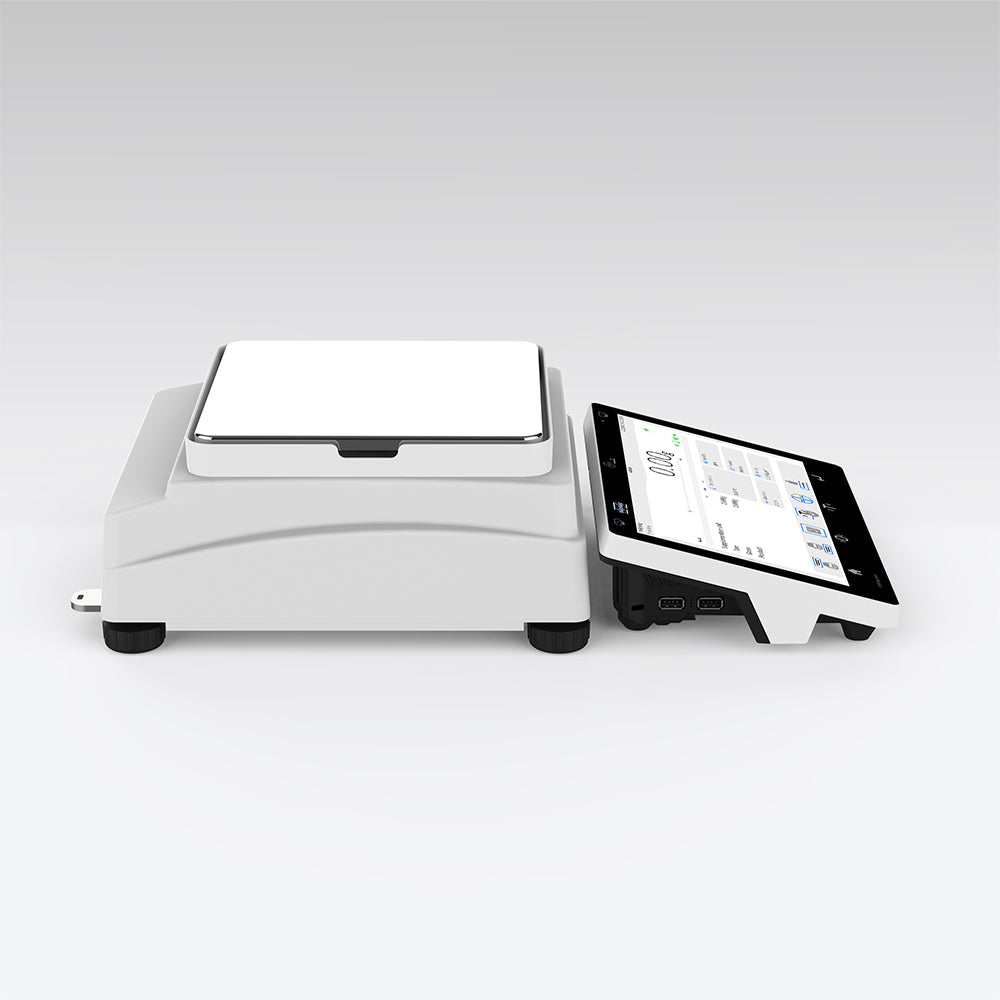

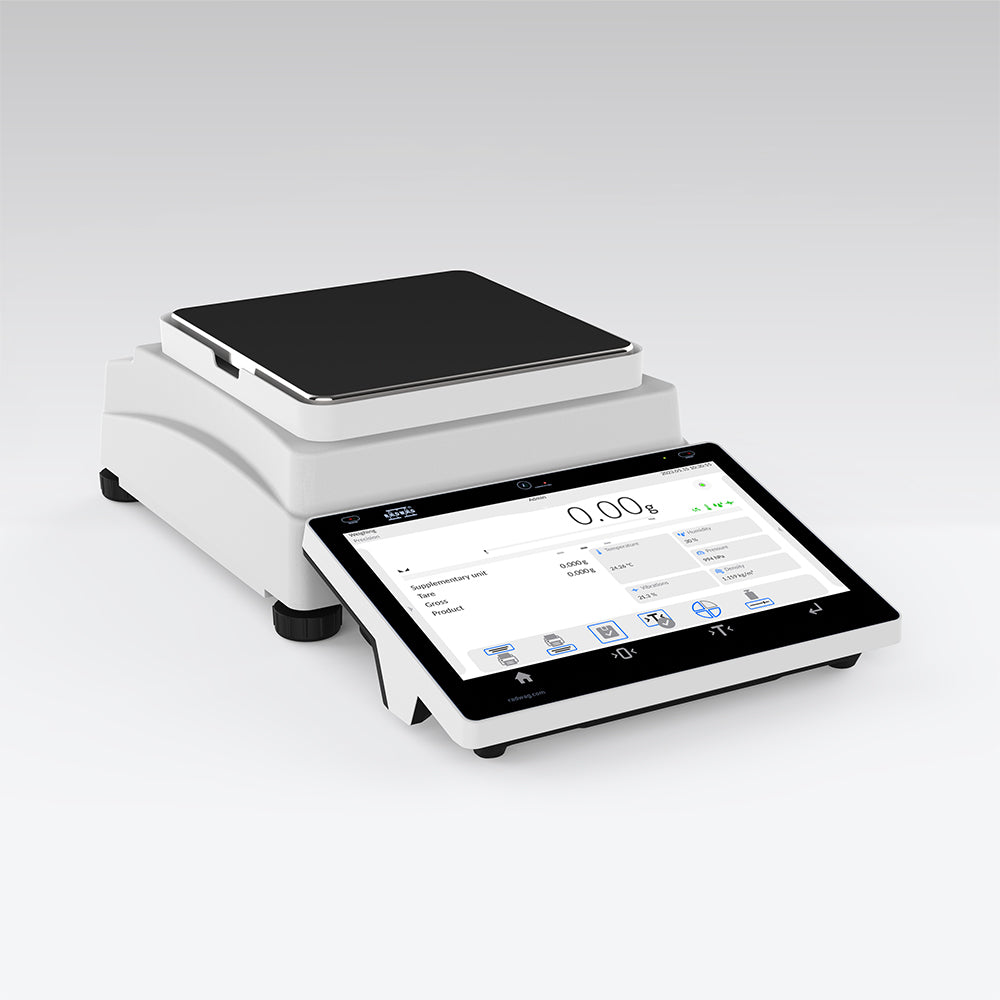

PS 10100.5Y.M Precision Balance


Are you looking for a balance that not only weighs accurately, but also performs a digital audit, responds to your voice and sends light messages?

If so, find out what the PS 5Y balances have to offer:


Digital Weighing Auditor

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

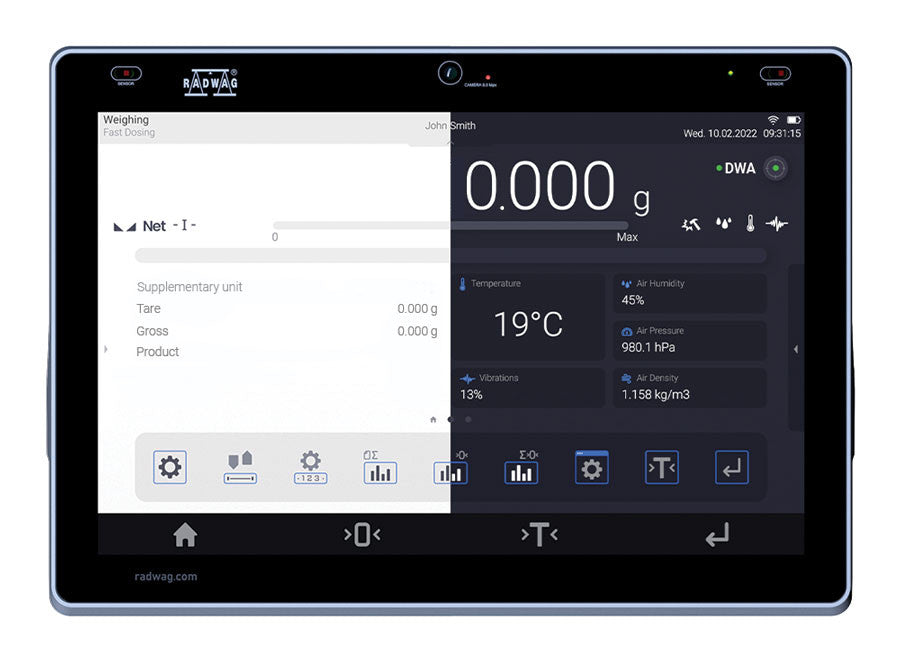

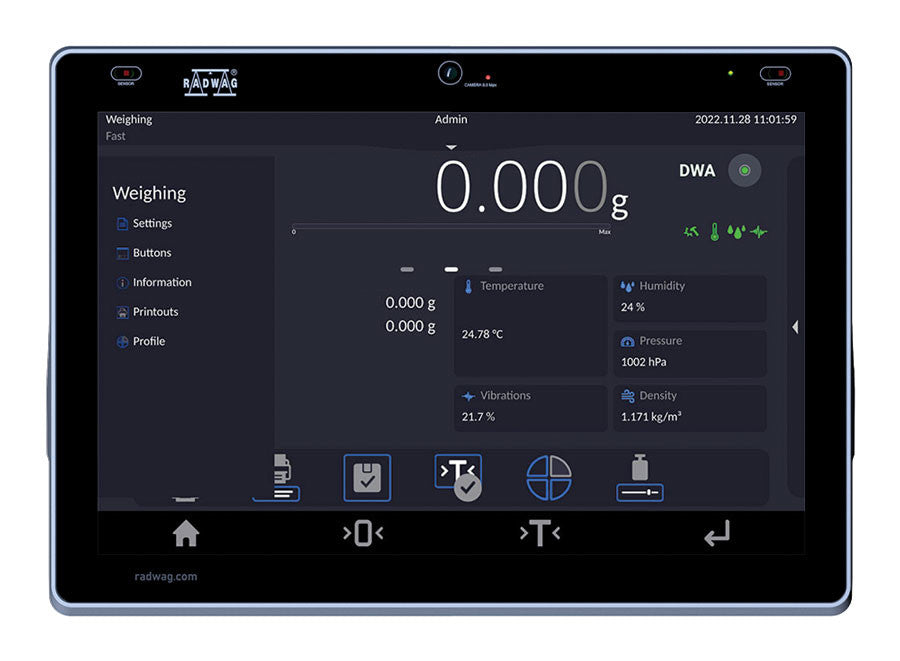

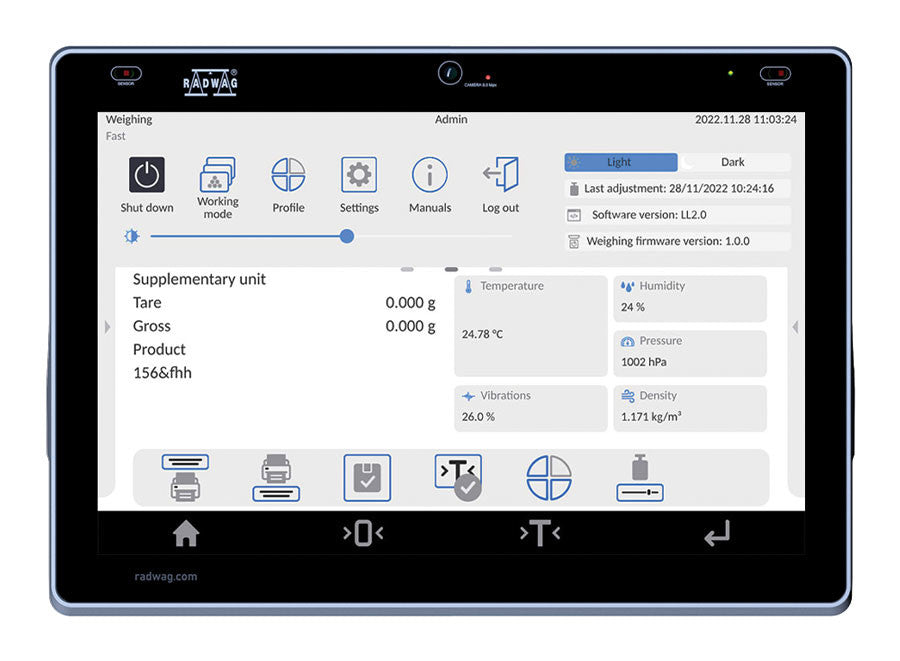

10-Inch Display

10-Inch Display

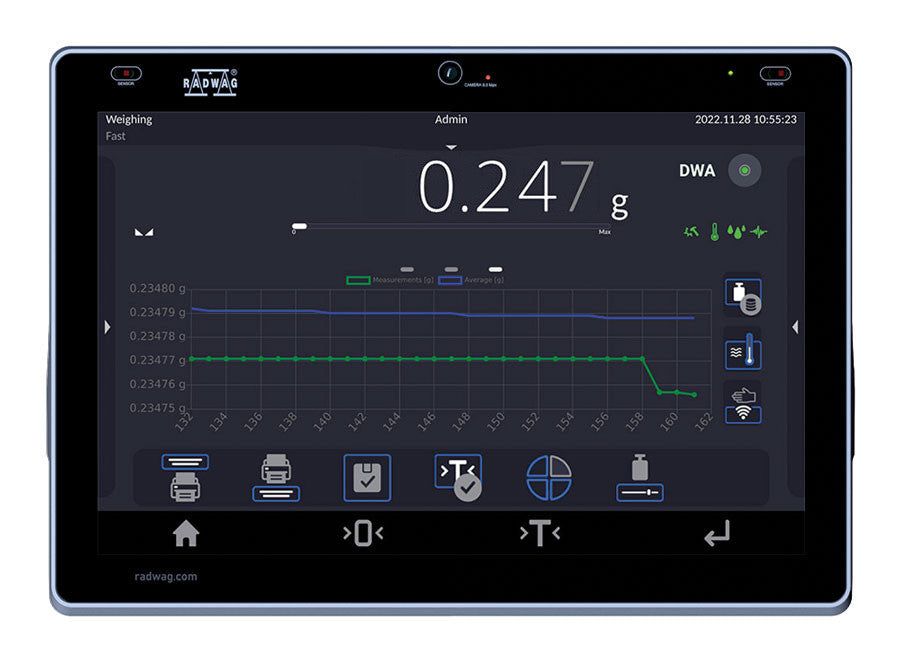

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history. In addition, this series balances are equipped with a number of communication interfaces: 2 x USB-A, USB-C, HDMI, Ethernet and Wi-Fi®.



Uncompromising User Verification

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these. With these advanced verification options, our balance provides not only the highest level of security, but also convenience and customization to each user’s specific requirements.



Ambient Light – An Innovative Way for the Balance to Communicate With the User

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.



Hotspot

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer. Hotspot allows remote operation of the balance in case of lack of access to the terminal or fume cupboard, as well as in other challenging situations.



RFID

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user. It is a weighing technology solution that combines state-of-the-art identification methods with practical solutions for everyday use.



Live Note – Note Down Your Conclusions

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time. Live Note in the 5Y series is a solution that raises the standard for documenting measurement results, enabling better management of information and enhancing the user experience.

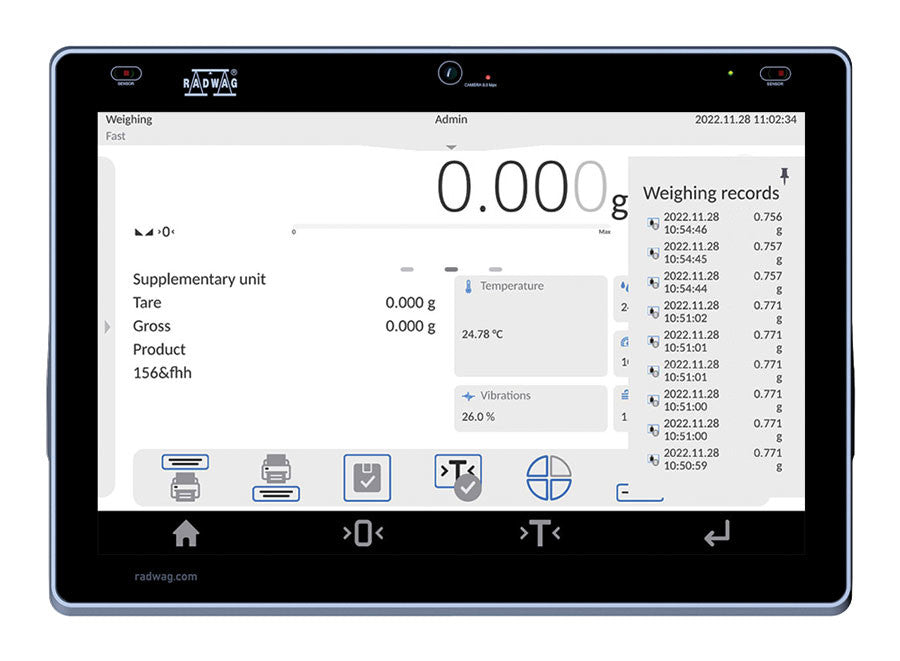

Handy Library

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.



Widgets

Widgets

Prepared to display what you need most at any given moment.



Smart Min Weight

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.



21 CFR Part 11

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails



Modbus TCP/IP

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.




Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

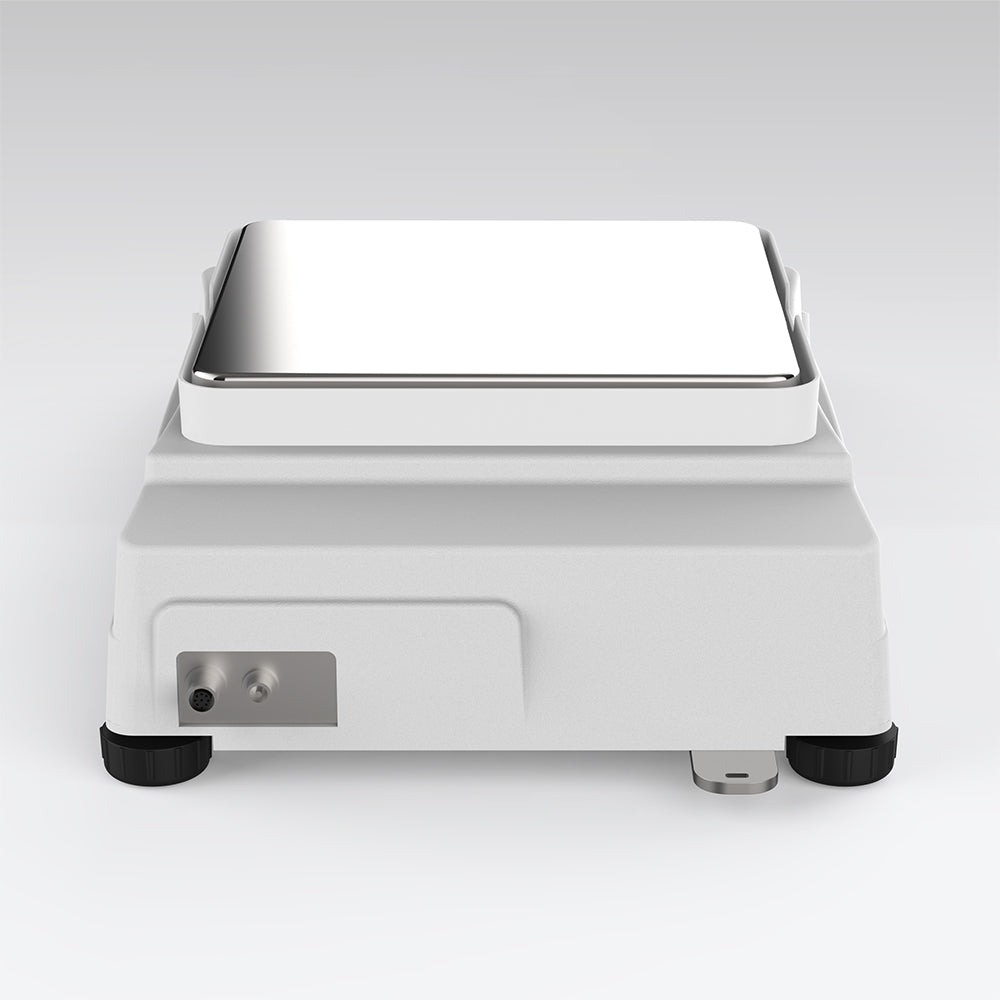

Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.


* RFID ISO/IEC 14443 Type A, 13.56 MHz
