PS 6100.R2.M
PS 6100.R2.M
PS 6100.R2.M
PS 6100.R2.M

PS 6100.R2.M

Vendor: Radwag
SKU: WL-212-0135
Availability: In Stock
$1,638.75 USD
$1,638.75 USD
Subtotal: $1,638.75
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

PS 6100.R2.M

Radwag

PS 6100.R2.M

$1,638.75
PS 6100.R2.M
PS 6100.R2.M
PS 6100.R2.M
PS 6100.R2.M

Radwag

PS 6100.R2.M

$1,638.75
Products Specifications
Products Specifications
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

6100

g

Minimum load

500

mg

Readability [d]

10

mg

Verification unit [e]

100

mg

Tare range

-6100

g

Standard repeatability [5% Max]

5

mg

Standard repeatability [Max]

8

mg

Standard minimum weight (USP)

10

g

Standard minimum weight (U=1%, k=2)

1

g

Linearity

±20

mg

Stabilization time

1.5

s

Adjustment

internal (automatic)

OIML Class

II

Leveling system

manual

Display

5.3” LCD (backlit)

Delivery components

Balance, weighing pan, weighing pan shield, power supply

Weighing pan dimensions

195×195

mm

Device dimensions W x D x H

333x206x107

mm

Packaging dimensions W x D x H

475×380×345

mm

Net weight

4.33

kg

Gross weight

6

kg

Protection class

IP 43

Communication interface

2×RS232¹, USB-A, USB-B, Wi-Fi® (option)

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance: 12 – 15V DC 0.4A max

Power consumption

4 W

Operating temperature

+10 – +40

°C

Storage temperature

-20 – +50

°C

Relative humidity

40% – 80%

Overview
Overview
x

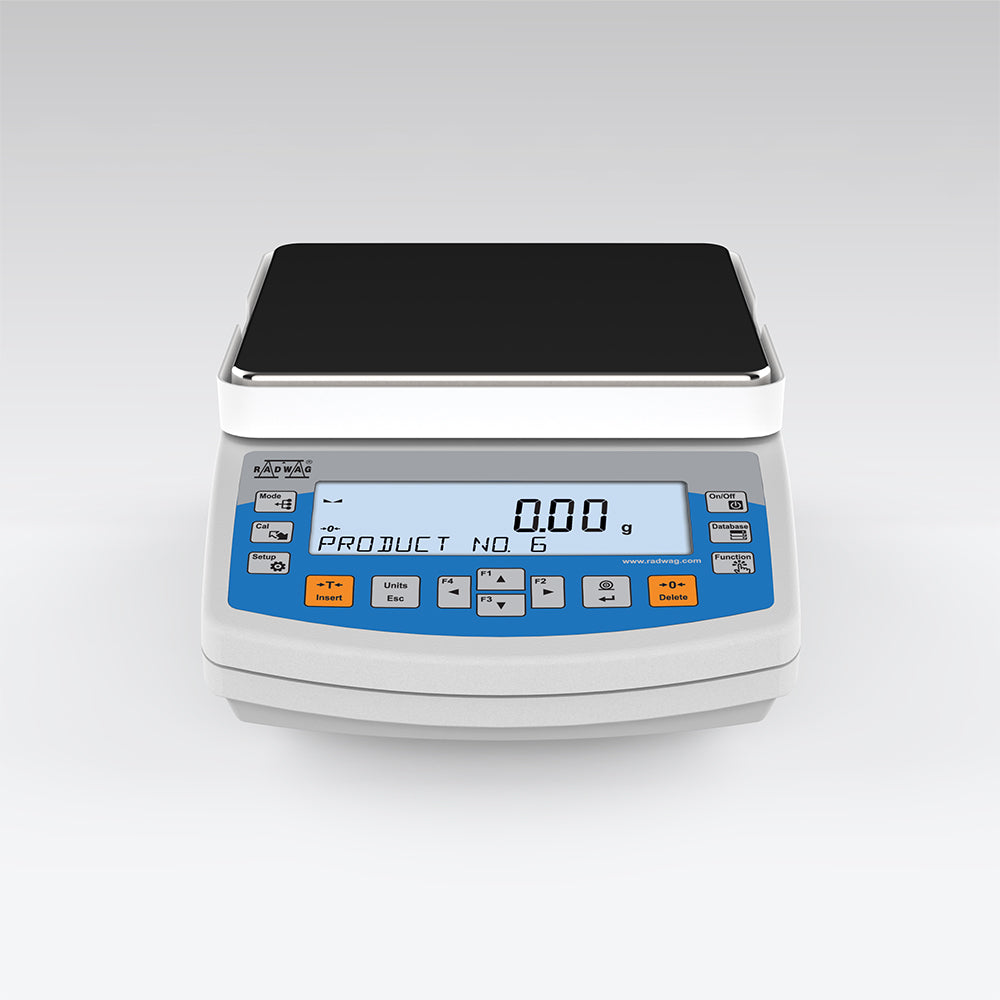

PS 6100.R2.M Precision Balance


PS.R2 series balances represent a new standard of precision balances. They feature a new, readable LCD display which allows
a clearer presentation of the weighing result. Besides, the display has a new text information line allowing to show additional messages and data, e.g. product name or tare value.




Communication interfaces

Communication interfaces

New PS.R2 balances, like previously designed PS series balances, have pans in two possible dimensions: 128x128 mm or 195x195 mm balances with a smaller pan have a draft shield. The balance precision and the measurement accuracy is assured by automatic internal adjustment, which takes into consideration temperature changes and time flow.

PS.R2 balances feature several communication interfaces: 2 x RS 232,
type A USB, type B USB and optional Wireless Connection.

The balance may cooperate with computer by means of USB interface supposing a supplementary software has been installed (respective driver). The said driver may be downloaded from RADWAG website – SOFTWARE link or SUPPORT section.

The housing is made of plastic, and the pan is made of stainless steel.
The balances have a possibility to weigh products out of the pan (under-pan weighing) - the load hangs under the pan.






Databases in R Series Balances

Databases in R Series Balances

The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:
  • users (up to 10 users),
  • products (up to 1000 products),
  • weighments (up to 5000 weighments),
  • tares (up to 100 tares),
  • ALIBI memory (up to 100 000 weighments).








Quick access to information

Quick access to information

There is two directions data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.

Direct access to functions and databases is possible from the level of keyboard.
  • Database - a direct access to databasis
  • Function - a direct access to the basic functions
  • F1 do F4 - programmable function and navigation keys on the menu
ALIBI memory
The used ALIBI memory is a data secure area  and allows to record up to
100 000 weighment records.  It ensures security of constant data register in the long time period.


Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.


THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.

Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications
