| OIML Class | III |
| Maximum quantity of verification units | 6000 e |
| Minimum volatge per verification unit | 0.4 µV |
| Maximum voltage per verification unit | 3.25 µV |
| Minimum load cell impedance | 50 Ω |
| Maximum load cell impedance | 1200 Ω |
| Load cell excitation voltage | 5V DC |
| Maximum increase of signal | 19.5 mV |
| Display | 5.7” Resistive Color Touchscreen |
| Device dimensions W x D x H | 206×140×71 mm |
| Packaging dimensions W x D x H | 300×250×130 mm |
| Net weight | 0.6 kg |
| Gross weight | 1.2 kg |
| Protection class | IP 43 |
| Keypad | touch screen |
| Housing | ABS plastic |
| Database capacity | 16 GB (micro SD) |
| Operating system | Linux |
| Processor | quad-core 64-bit Cortex-A53 1.2 GHz |
| Memory | RAM 1GB LPDDR2 |
| Data memory | 16 GB (micro SD) |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Additional DP6 A/C converter module | 1 (option) |
| Power consumption max. | max. 1 A |
| Operating temperature | -10 – +40 °C |
| Relative humidity | 10% – 85% RH no condensation |
| Number of buttons | 8 |
| Max number of platforms | 2 |
Data Sheet
Software Manual - CBCP 03
Start up Guide
Software Manual - MODBUS communication protocol of PUE 7.1 / PUE HY10
Software Manual - Appendices 01
User Manual - PUE 7.1
Software Manual - PUE 7.1
Conformity Declaration

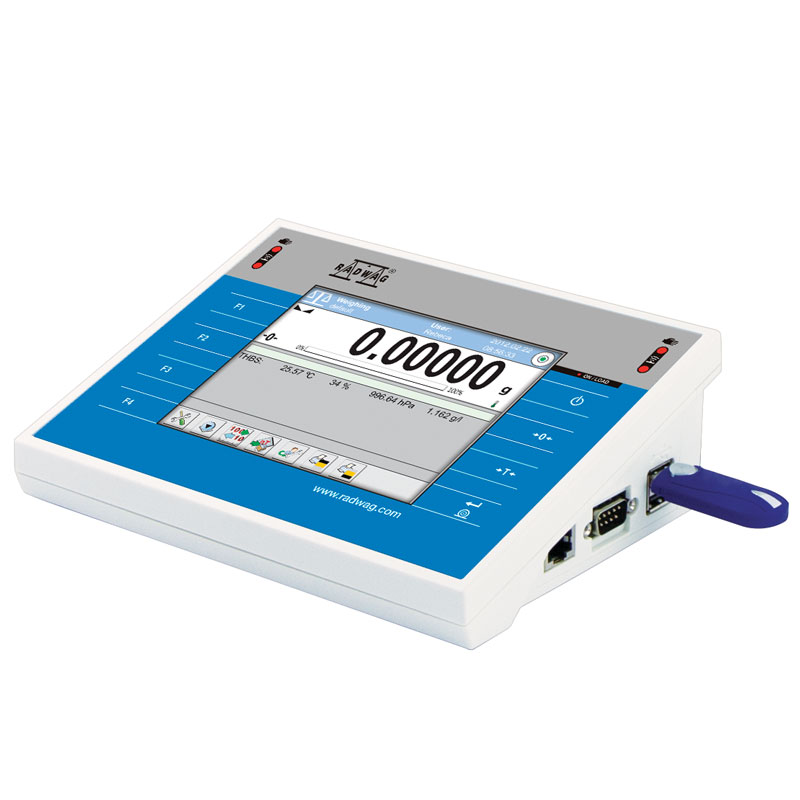

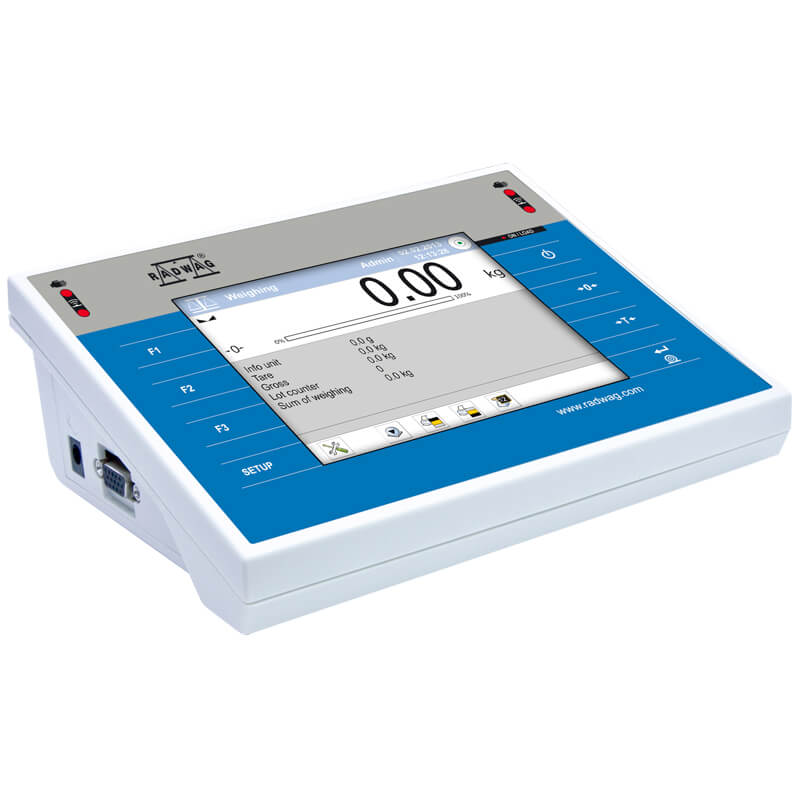

PUE 7.1 Terminal
Terminals and Platforms
