R 50 stirring shaft «high speed»

R 50 stirring shaft «high speed»

Vendor: IKA
SKU: 1689300
Availability: In Stock
Product Type: Dispersers
$3,485.79 USD
$3,485.79 USD
Subtotal: $3,485.79
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

R 50 stirring shaft «high speed»

IKA

R 50 stirring shaft «high speed»

$3,485.79
R 50 stirring shaft «high speed»

IKA

R 50 stirring shaft «high speed»

$3,485.79
Products Specifications
Products Specifications
x
Volume range (H2O)0.25 - 30 l
Rotor diameter40 mm
allowable Speed max.10000 rpm
Circumferential speed max.23.6 m/s
Immersion depth50 - 180 mm
Shaft length323 mm
Material in contact with mediumAISI 316L, AISI 304
pH range2 - 13
Suitable for solventsyes
Suitable for abrasive substancesyes
Working temperature max. 150 °C
Dry Operationyes
Weight1.25 kg
Overview
Overview
x

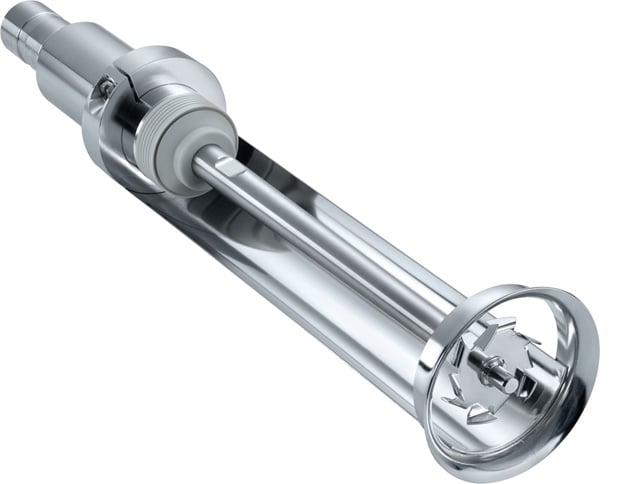

R 50 stirring shaft «high speed»

With the R 50 stirring shaft, the disperser T 50 digital can be converted into a high speed stirrer. This configuration is recommended for applications that require medium to high shearing forces.

The dissolver disk design of the mixing head coupled with the high speed results in rapid mixing, dissolving, and disagglomeration. A protective cage is fitted around the mixing head and shaft to ensure operational safety. The dissolver head R 1402 is included in scope of delivery.

Alternatively, the mixing head can be changed to a propeller design with the accessory R 1405 in order to facilitate low to medium mixing viscosities under low shear at high speed.

Immersion depth: 180 mm
Working range: 0.25 - 30 l
Rotor diameter: 40 mm
Material: stainless steel (AlSl 316L)
