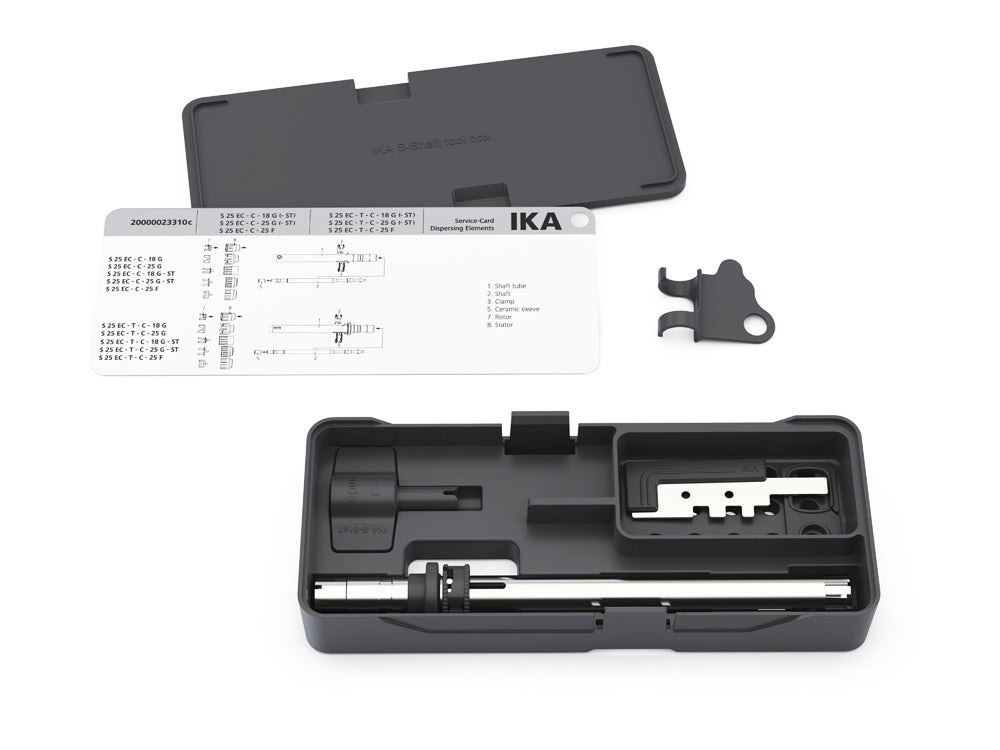

S 25 EC - T - C - 18 G Dispersing tool

S 25 EC - T - C - 18 G Dispersing tool

Vendor: IKA
SKU: 20108998
Availability: In Stock
Product Type: Dispersers
$2,641.41 USD
$2,641.41 USD
Subtotal: $2,641.41
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

S 25 EC - T - C - 18 G Dispersing tool

IKA

S 25 EC - T - C - 18 G Dispersing tool

$2,641.41
S 25 EC - T - C - 18 G Dispersing tool

IKA

S 25 EC - T - C - 18 G Dispersing tool

$2,641.41
Products Specifications
Products Specifications
x
Volume range (H2O)0.01 - 1.5 l
Stator diameter18 mm
Rotor diameter12.7 mm
Gap between rotor and stator0.3 mm
allowable Speed max.25000 rpm
Circumferential speed max.16.6 m/s
Immersion depth45 - 150 mm
Shaft length191 mm
Material in contact with mediumAISI 316L, ceramic
pH range2 - 13
Suitable for solventsyes
Suitable for abrasive substancesyes
Temperature measuring range0 - 125 °C
Accuracy of temperature measurement±1 K
Working temperature max. 120 °C
Sterilization methodsall methods except hot air
Ultimate fineness, suspensions10 - 50 µm
Ultimate fineness, emulsions1 - 10 µm
Weight0.634 kg
Overview
Overview
x

S 25 EC - T - C - 18 G Dispersing tool

The autoclavable dispersing tool S 25 EC - T - C - 18 G is suitable for general applications involving high speed and high shear mixing, crushing in liquid, emulsification, particle size reduction in solution and vigorous dissolving of miscible and immiscible solids and liquids in a liquid medium. It is particularly recommended for dispersing applications in the fields of biochemistry or pharmacy, e.g. to emulsify heat-sensitive intermediate APIs.

The integrated temperature sensor enables temperature measurement during use. Operating time is logged through the associated disperser T 25 easy clean digital or control. An indication on the display informs the user that maintenance is required.

As the name "easy clean" implies, the dispersing tools are particularly easy to clean: by simply turning and lowering the clamp, the shaft and rotor can be extended from the shaft until the whole rotor comes out of the stator. Then the shaft tube of the tool can be completely rinsed from inside.

Note: S 25 EC - T - C - 18 G is only compatible with the dispersers T 25 easy clean digital and control. The temperature sensing function of the T tools can only be activated when used in combination with the T 25 easy clean control.
