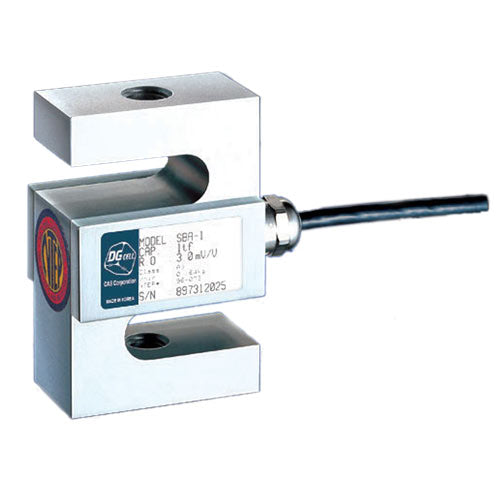

| SKU | SBA Series |
|---|---|
| Rated Output | 3 mV/V ± 10% |
| Combined Error | < 0.02% R.O. |
| Repeatability | < 0.01% R.O. |
| Creep | < 0.017% R.O. |
| Temperature Effect on Zero | 0.014 |
| Recommended Excitation Voltage | DC 10V |
| Maximum Excitation Voltage | DC 15V |
| Input Resistance | 400 ± 25 ohms |
| Output Resistance | 350 ± 3.5 ohms |
| Insulation Resistance | > 2000 Megohms |
| Cable Length | 20’ / 6m - 4 conductor with shield |
| Compensated Temp Range | -10°C - +40°C |
| Safe Overload | 150% Rated Capacity |
| Protection Class | IP 65 |
| Country of Manufacture | South Korea |
| Capacity | 50 lb , 75 lb , 100 lb , 150 lb , 250 lb , 300 lb , 500 lb , 750 lb , 1K , 1.5K , 2K , 2.5K , 3K , 5K , 10K , 15K , 20K |
