Estimated Delivery 10-14 business day
Couldn't load pickup availability
Free standard shipping on orders over 185 AED

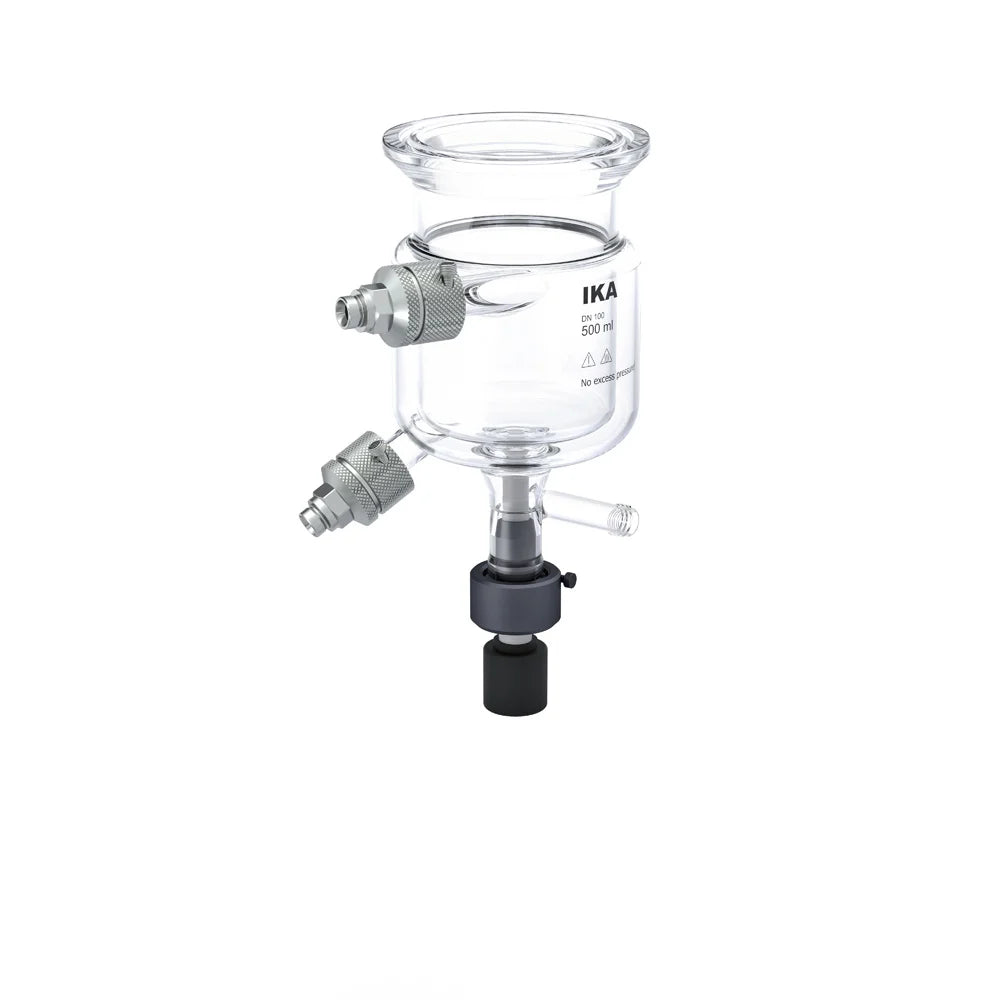

| Volume | 0.5 l |
| Fill level diameter ratio | 1.375 |
| Fill level at nominal volume | 72 mm |
| Vessel inner diameter | 99 mm |
| Vessel outer diameter | 130 mm |
| Height (room dimension) | 313 mm |
| Width (room dimension) | 203 mm |
| Depth (room dimension) | 141 mm |
| Flange type | acc. DIN 12214 with circular groove |
| Flange dimension | DN100 |
| Flange collar diameter | 108 mm |
| Bottom shape | Torispherical head |
| Bottom drain | yes |
| Bottom valve | Safety valve |
| Bottom drain outlet inner diameter | 10 mm |
| Bottom drain outlet outer diameter | 15 mm |
| Bottom drain outlet length | 65 mm |
| Bottom drain shape | straight |
| Tempering jacket filling capacity | 0.40 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Thread closure system | M16x1 |
| Width across flats | WAF 22 |
| Material closure system | stainless steel 1.4404 |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
| Working temperature | -50 - 200 ðC |
| Useable volume | 30 - 610 ml |
| Useable volume with temperature probe min. | 260 ml |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 3 mbar |
| Material in contact with medium | borosilicate glass 3.3 DIN ISO 3585, PTFE |
Data Sheet
Assembly instructions EasySyn Valve
