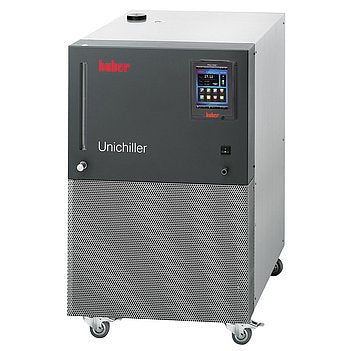

Unichiller P025

Unichiller P025

Performance Characteristics Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water...
Vendor: Huber
SKU: 3052.0029.01
Availability: In Stock
Product Type: Chillers up to 2.5 kW
Dhs. 100,233.00 AED
Dhs. 100,233.00 AED
Subtotal: Dhs. 100,233.00
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

Unichiller P025

Huber

Unichiller P025

Dhs. 100,233.00
Unichiller P025

Huber

Unichiller P025

Dhs. 100,233.00
Products Specifications
Products Specifications
x

Temperature range -10...40 °C
Temperature stability ±0,5 K
Controller Pilot ONE
Safety class I / NFL
Protection class IP20
Dimensions (W x D x H) 460 x 590 x 743 mm
Weight, net 83 kg

Cooling capacity
15 2,5
0 2
-10 1,2

°C

kW
Refrigeration machine air-cooled, CFC- and HCFC-free
Refrigerant 1st stage R-449A (A1, H280)
Refrigerant quantity 1st stage 0,45 kg

Delivery capacity pressure pump max. 25 l/min; 2,5 bar
Pump connection G3/4 AG male
Pump speed adjustable no
Pump type B
Pump characteristics Pressure pump, speed not variable, manual bypass integrated

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Sound pressure level 64 dB(A)
Filling volume min. 3,8 l
Expansion volume 1,7 l
Power supply 208-230V 1~/2~ 60Hz
Current consumption max. 12,5 A
Fuse 16 A
Overview
Overview
x

Functions overview

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Powerful circulation pump
  • Robust stainless construction
  • Reliable continuously operation with warning functions
  • Easy to fill and empty
  • Adjustable bypass, level indicator with sight glass and digital manometer
  • Pilot ONE controller with 5.7" touchscreen
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more
Accessories
