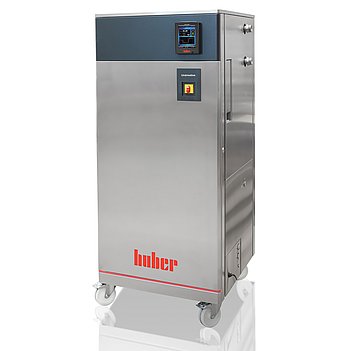

Unimotive GL 20w-XT
Performance Characteristics The Unimotive model series is specially designed for applications in the automotive industry. The temperature...
Vendor:
Huber
SKU:
5033.0004.01
Availability:
In Stock
Product Type:
Unimotive
- Dhs. 1,392,068.00 AED
- Dhs. 1,392,068.00 AED
- Unit price
- per
Subtotal:
Dhs. 1,392,068.00
Estimated Delivery 10-14 business day
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over 185 AED
Free Returns
Authorized distributor
Products Specifications
x| Heating capacity | 24 kW | ||||||||||
| Cooling capacity |
|
||||||||||
| Refrigeration machine | water-cooled, natural refrigerant | ||||||||||
| Refrigerant 1st stage | R-744 (A1, H280) | ||||||||||
| Refrigerant quantity 1st stage | 3,3 kg |
| Delivery capacity pressure pump max. | 201 l/min; 5,3 bar |
| Pump connection | M38x1,5 AG male |
| Max. permissible viscosity | 200 mm²/s |
| Pump speed adjustable | no |
| Pump type | magnetically coupled, stainless steel |
| Pump characteristics | Pressure pump, speed not variable, magnetically coupled |
| External sensor connection | Pt100 |
| Control input | ECS ONE |
| Control output (potential-free contact) | POKO ONE |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 8,9 l |
| Expansion volume | 19,9 l |
| Cooling water connection | G3/4 male |
| Cooling water consumption at 15°C, flow 0°C | 2100 l/h |
| Cooling water differential pressure min. | 1 bar |
| Cooling water pressure max. | 6 bar |
| Power supply | 460V 3~ 60Hz |
Overview
xFunctions overview
- Natural refrigerant CO2, environmentally and climate-friendly
- No ozone depletion potential, very low global warming potential (GWP = 1)
- Direct operation with water-ethylene glycol mixture with corrosion protection (e.g. Glysantin®)
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Options for measuring and controlling pressure and flow rate
- Fast heating and cooling
- Highly accurate and reproducible temperature control results
- Adaptive temperature control, self-optimising
- Variable pressurisation for operating temperatures up to +150°C
- Highly efficient operation saves working time and operating costs
Product impressions
Controller
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
Accessories
x
Temperature sensor Pt100, M38x1,5, for
fluid outlet or return
Temperature sensor Pt100, M38x1,5, for fluid outlet or return
Dhs. 5,453.00
Temperature sensor Pt100, open, Ø
8 mm, 170 mm
Sensor open in protective pipe Ø 8 mm
(Pt100) with 1,5 m cable
Sensor length: 170 mm, Ø 8 mm
Dhs. 4,488.00
Temperature sensor Pt100, closed, Ø
8 mm, 400 mm
with 1,5 m cable
Sensor length: 400 mm, Ø 8 mm
Dhs. 3,628.00
Temperature sensor Pt100, closed, Ø
6 mm, 200 mm
with 1,5 m cable
Sensor length: 200 mm, Ø 6 mm
Dhs. 3,460.00
Temperature sensor Pt100, closed, Ø
6 mm, 180 mm
with 1,5 m cable
Sensor length: 180 mm, Ø 6 mm
Dhs. 3,146.00
Connection cable for Pilot ONE
Connection cable for Pilot ONE for using the controller as remote control (without RS232)
Length: 3m
Using #16160 as remote control does not allow communication via RS232. If required, please u...
Dhs. 881.00
Extension cable for temperature sensor
with coupling and plug (Lemosa)
Cable length: 3 m
Dhs. 2,244.00
Mounting bracket for wall mounting
of Pilot ONE
Mounting bracket for mounting the Pilot ONE wall bracket at the side of the device
Dhs. 588.00
Hose K-260-1-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special in...
Dhs. 6,627.00
Hose K-260-1,5-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special in...
Dhs. 7,969.00
Hose K-260-2-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special in...
Dhs. 9,143.00
Hose K-260-3-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special in...
Dhs. 11,534.00
Hose MT-350-1-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 100 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 8,095.00
Hose MT-350-1,5-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 150 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 8,850.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Hose MT-350-2-M38x1,5
Material: Metal
Temperature range: -100...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
Dhs. 11,827.00
Product Part
x
Related Products
Recently Viewed Products
- Choosing a selection results in a full page refresh.
