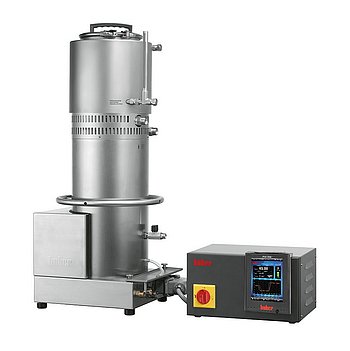

Unistat TR402

Unistat TR402

Performance Characteristics The Unistat range inspires with unique thermodynamic properties and a range of functions to meet...
Vendor: Huber
SKU: 1084.0001.01
Availability: In Stock
Product Type: Unistats up to +425°C
$67,921.88 USD
$67,921.88 USD
Subtotal: $67,921.88
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

Unistat TR402

Huber

Unistat TR402

$67,921.88
Unistat TR402

Huber

Unistat TR402

$67,921.88
Products Specifications
Products Specifications
x

Temperature range 80...425 °C
Temperature stability ±0,05 K
Display resolution 0,01 K
Alarm message optic, acoustic, relay
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 288 x 379 x 870 mm
Weight, net 51 kg

Heating capacity 6 kW

Delivery capacity pressure pump max. 31 l/min; 1 bar
Pump connection M24x1,5 (Flow)
M24x1,5 (Return)
Pump speed adjustable Yes
Pump characteristics Pressure pump, variable speed

External sensor connection Pt100
Control input ECS ONE
Control output (potential-free contact) POKO ONE
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Filling volume min. 3 l
Expansion volume 2,9 l
Cooling water connection G1/2 male
Power supply 208V 3~ 60Hz
Current consumption max. 21 A
Fuse 3x25A
Overview
Overview
x

Functions overview

  • Precise and reproducible temperature control results
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more
Accessories
Accessories
x
Cursor
Temperature sensor Pt100, open, Ø 8 mm, 170 mm
Huber

Temperature sensor Pt100, open, Ø
8 mm, 170 mm

Sensor open in protective pipe Ø 8 mm (Pt100) with 1,5 m cable Sensor length: 170 mm, Ø 8 mm
$1,203.75
Temperature sensor Pt100, closed, Ø 8 mm, 400 mm
Huber

Temperature sensor Pt100, closed, Ø
8 mm, 400 mm

with 1,5 m cable Sensor length: 400 mm, Ø 8 mm
$973.13
Temperature sensor Pt100, closed, Ø 6 mm, 200 mm
Huber

Temperature sensor Pt100, closed, Ø
6 mm, 200 mm

with 1,5 m cable Sensor length: 200 mm, Ø 6 mm
$928.13
Temperature sensor Pt100, closed, Ø 6 mm, 180 mm
Huber

Temperature sensor Pt100, closed, Ø
6 mm, 180 mm

with 1,5 m cable Sensor length: 180 mm, Ø 6 mm
$843.75
Ball valve M24x1,5
Huber

Ball valve M24x1,5

Temperature range: -10...+180°C (max. 6 bar at +180°C)
$343.13
Connection cable for Pilot ONE
Huber

Connection cable for Pilot ONE

Connection cable for Pilot ONE for using the controller as remote control (without RS232) Length: 3m   Using #16160 as remote control does not allow communication via RS232. If required, please u...
$236.25
Control cable Unipump/Unistat (3m)
Huber

Control cable Unipump/Unistat (3m)

$680.63
Extension cable for temperature sensor
Huber

Extension cable for temperature sensor

with coupling and plug (Lemosa) Cable length: 3 m
$601.88
Wall bracket Pilot ONE
Huber

Wall bracket Pilot ONE

Wall bracket for controller Pilot ONE and CC-Pilot
$180.00
Table stand Pilot ONE
Huber

Table stand Pilot ONE

Table stand for controller Pilot ONE and CC-Pilot
$427.50
Mounting bracket for wall mounting of Pilot ONE
Huber

Mounting bracket for wall mounting
of Pilot ONE

Mounting bracket for mounting the Pilot ONE wall bracket at the side of the device
$157.50
Hose MT-350-1-M24x1,5
Huber

Hose MT-350-1-M24x1,5

Material: Metal Temperature range: -100...350°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,237.50
Hose MT-350-1,5-M24x1,5
Huber

Hose MT-350-1,5-M24x1,5

Material: Metal Temperature range: -100...350°C Length: 150 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,518.75
Hose MT-350-2-M24x1,5
Huber

Hose MT-350-2-M24x1,5

Material: Metal Temperature range: -100...350°C Length: 200 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,800.00
Hose MT-350-3-M24x1,5
Huber

Hose MT-350-3-M24x1,5

Material: Metal Temperature range: -100...350°C Length: 300 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$2,362.50
Hose K-260-1-M24x1,5
Huber

Hose K-260-1-M24x1,5

Industrial plastic material hose with braiding Temperature range: -60...260°C Length: 100 cm Connection: M24x1,5 Max. pressure at 20°C: 6 bar Internal diameter: 12 mm Insulation: Special ins...
$1,237.50
Hose K-260-1,5-M24x1,5
Huber

Hose K-260-1,5-M24x1,5

Industrial plastic material hose with braiding Temperature range: -60...260°C Length: 150 cm Connection: M24x1,5 Max. pressure at 20°C: 6 bar Internal diameter: 12 mm Insulation: Special insu...
$1,518.75
Hose K-260-2-M24x1,5
Huber

Hose K-260-2-M24x1,5

Industrial plastic material hose with braiding Temperature range: -60...260°C Length: 200 cm Connection: M24x1,5 Max. pressure at 20°C: 6 bar Internal diameter: 12 mm Insulation: Special insu...
$1,800.00
Hose K-260-3-M24x1,5
Huber

Hose K-260-3-M24x1,5

Industrial plastic material hose with braiding Temperature range: -60...260°C Length: 300 cm Connection: M24x1,5 Max. pressure at 20°C: 6 bar Internal diameter: 12 mm Insulation: Special ins...
$2,362.50
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Hose MT-400-1-M24x1,5
Huber

Hose MT-400-1-M24x1,5

Material: Metal Temperature range: -120...400°C Length: 100 cm Connection: M24x1,5 Nominal width: 12 mm Insulation: Special insulation with additional smooth silicone hose, ends covered with s...
$1,676.25
Product Part
Product Part
x
Cursor
Document
Document
x

Related Products

Vendor
Example product title
$67,921.88 USD
$67,921.88 USD
Vendor
Example product title
$67,921.88 USD
$67,921.88 USD
Vendor
Example product title
$67,921.88 USD
$67,921.88 USD
Vendor
Example product title
$67,921.88 USD
$67,921.88 USD
Vendor
Example product title
$67,921.88 USD
$67,921.88 USD
Vendor
Example product title
$67,921.88 USD
$67,921.88 USD

Recently Viewed Products
