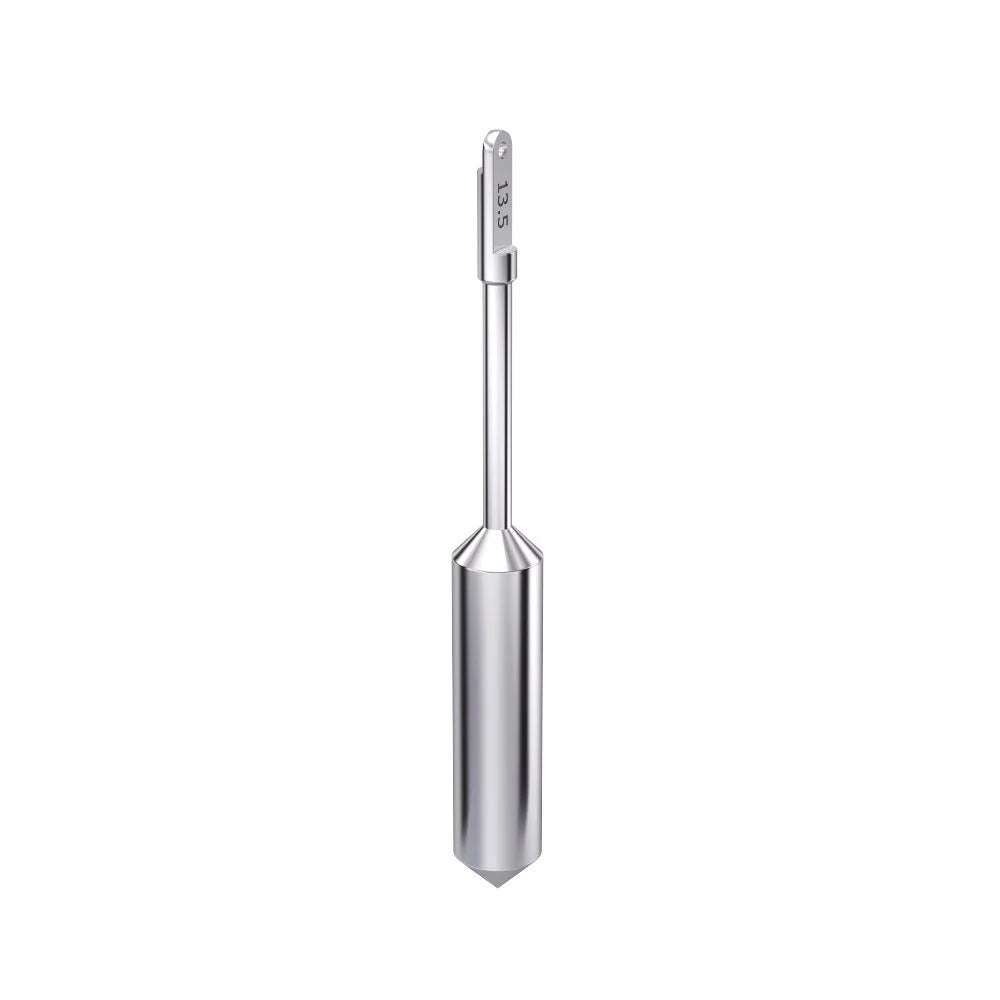

| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter | 7.6 mm |
| Immersion depth | 33.6 mm |
| Spindle length | 66.7 mm |
| Sample volume | 13.5 ml |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 ðC |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 468.7 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 93730 mPa.s |
| Min. FSR match ROTAVISC me-vi | 5000 mPa.s |
| Max. FSR match ROTAVISC me-vi | 1000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 10000 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 2000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 40000 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 8000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 10 x 69 x 10 mm |
| Weight | 0.012 kg |
Data Sheet
Technical info_VOL-SP-13.5
