VOL-SP-2.1

VOL-SP-2.1

Vendor: IKA
SKU: 25007061
Availability: In Stock
Product Type: Viscometers
$666.56 USD
$666.56 USD
Subtotal: $666.56
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

VOL-SP-2.1

IKA

VOL-SP-2.1

$666.56
VOL-SP-2.1

IKA

VOL-SP-2.1

$666.56
Products Specifications
Products Specifications
x
Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter8.7 mm
Immersion depth 19.5 mm
Spindle length42 mm
Sample volume2.1 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi585.8 mPa.s
Max. FSR match ROTAVISC lo-vi117163 mPa.s
Min. FSR match ROTAVISC me-vi6250 mPa.s
Max. FSR match ROTAVISC me-vi1250000 mPa.s
Min. FSR match ROTAVISC hi-vi I12500 mPa.s
Max. FSR match ROTAVISC hi-vi I2500000 mPa.s
Min. FSR match ROTAVISC hi-vi II50000 mPa.s
Max. FSR match ROTAVISC hi-vi II10000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)11 x 44 x 11 mm
Weight0.007 kg
Overview
Overview
x

VOL-SP-2.1

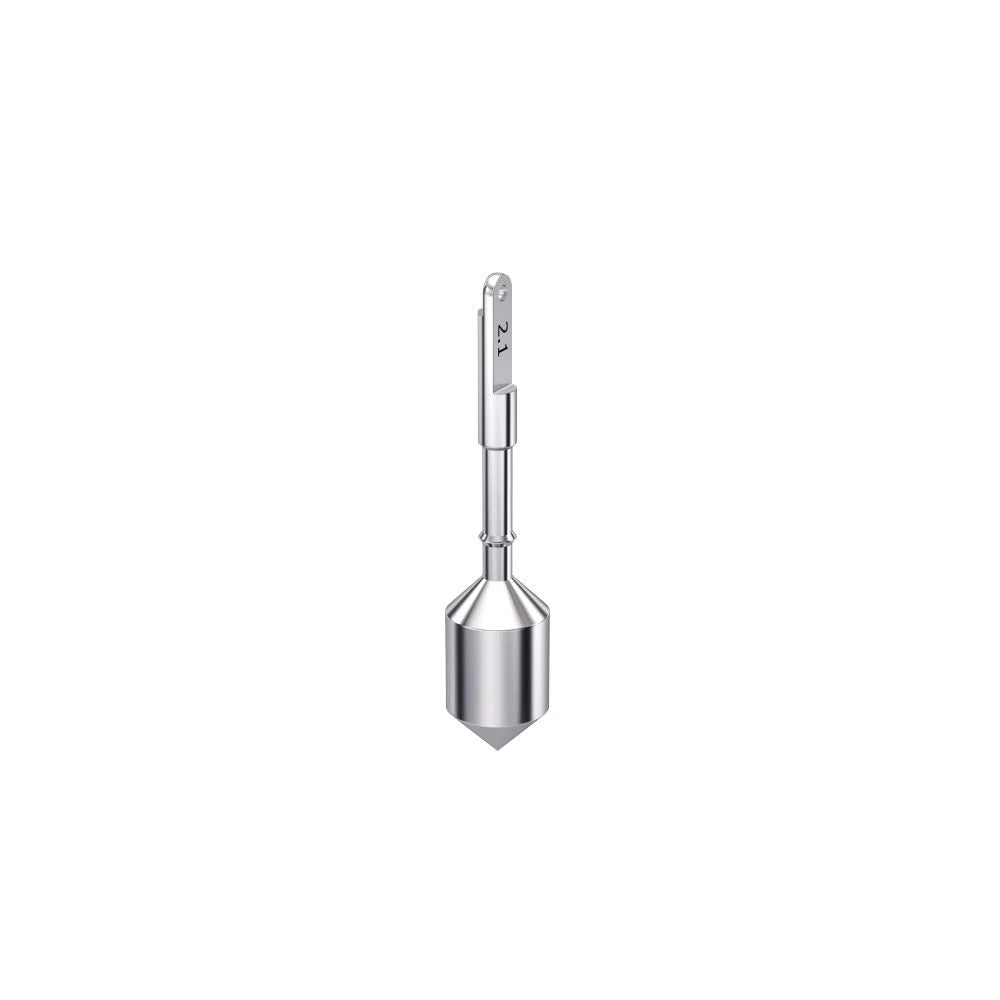

VOL-SP-2.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 2.1 ml.

It is required to use the 2.1 ml chamber VOL-C-RTD-2.1 in combination with the VOL-SP-2.1 spindle. The chamber is available as accessory.
