Vendor: Radwag
SKU: WL-110-0017
Availability: In Stock
Dhs. 43,550.00 AED
Dhs. 43,550.00 AED
Subtotal: Dhs. 43,550.00
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

XA 52.5Y.F

Radwag

XA 52.5Y.F

Dhs. 43,550.00
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F
XA 52.5Y.F

Radwag

XA 52.5Y.F

Dhs. 43,550.00
Products Specifications
Products Specifications
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

52

g

Minimum load

1

mg

Readability [d]

0.01

mg

Verification unit [e]

1

mg

Tare range

-52

mg

Standard repeatability [5% Max]

0.007

mg

Standard repeatability [Max]

0.01

mg

Standard minimum weight (USP)

14

mg

Standard minimum weight (U=1%, k=2)

1.4

mg

Permissible repeatability [5% Max]

0.01

mg

Permissible repeatability [Max]

0.02

mg

Linearity

±0.03

mg

Eccentric load deviation

0.03

mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

5 s (30 s for filters)

Adjustment

internal (automatic)

OIML Class

I

Leveling system

semi-automatic – LevelSENSING

Display

10″ graphic colour touchscreen

Weighing chamber doors

manual

Delivery components

Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.

Weighing pan dimensions

210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option)

Packaging dimensions W x D x H

865×510×690

mm

Net weight

12.7

kg

Gross weight

23.5

kg

Protection class

IP 43

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance: 12 – 15V DC 1.1A max

Operating temperature

+10 – +50

°C

Overview
Overview
x

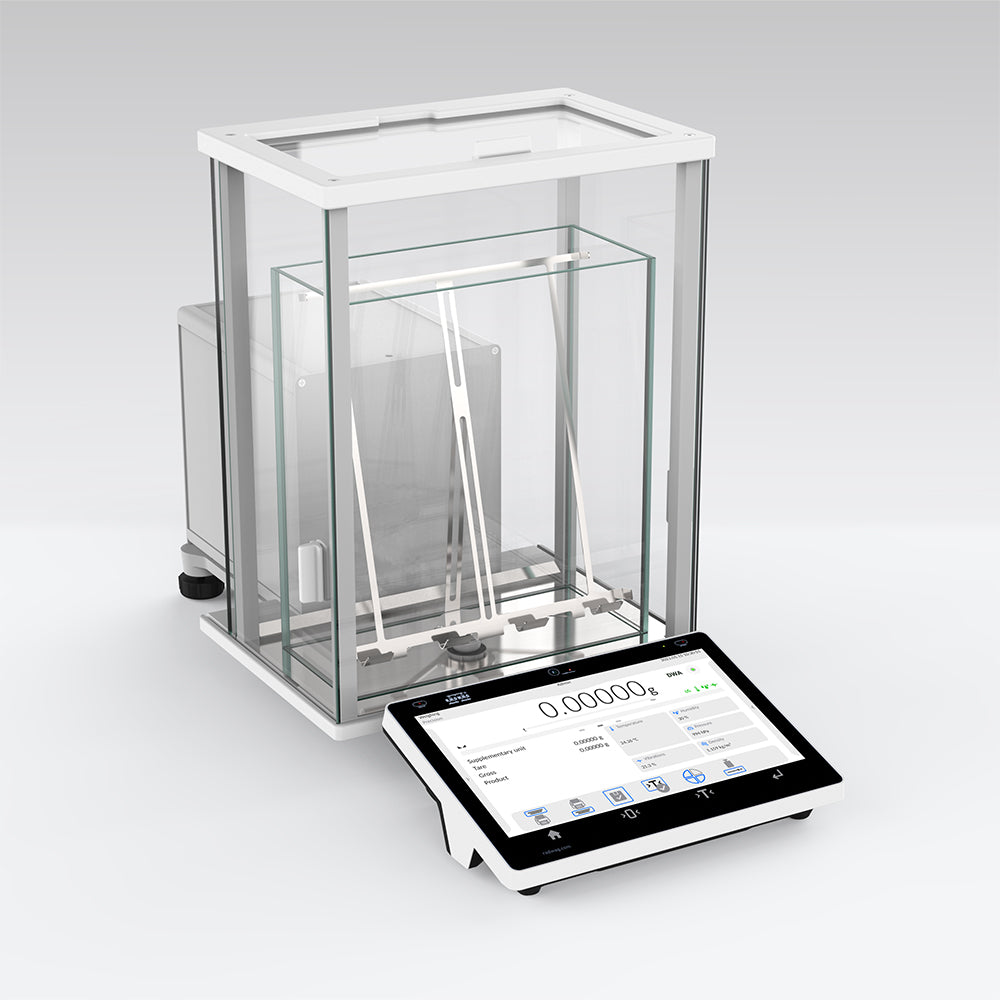

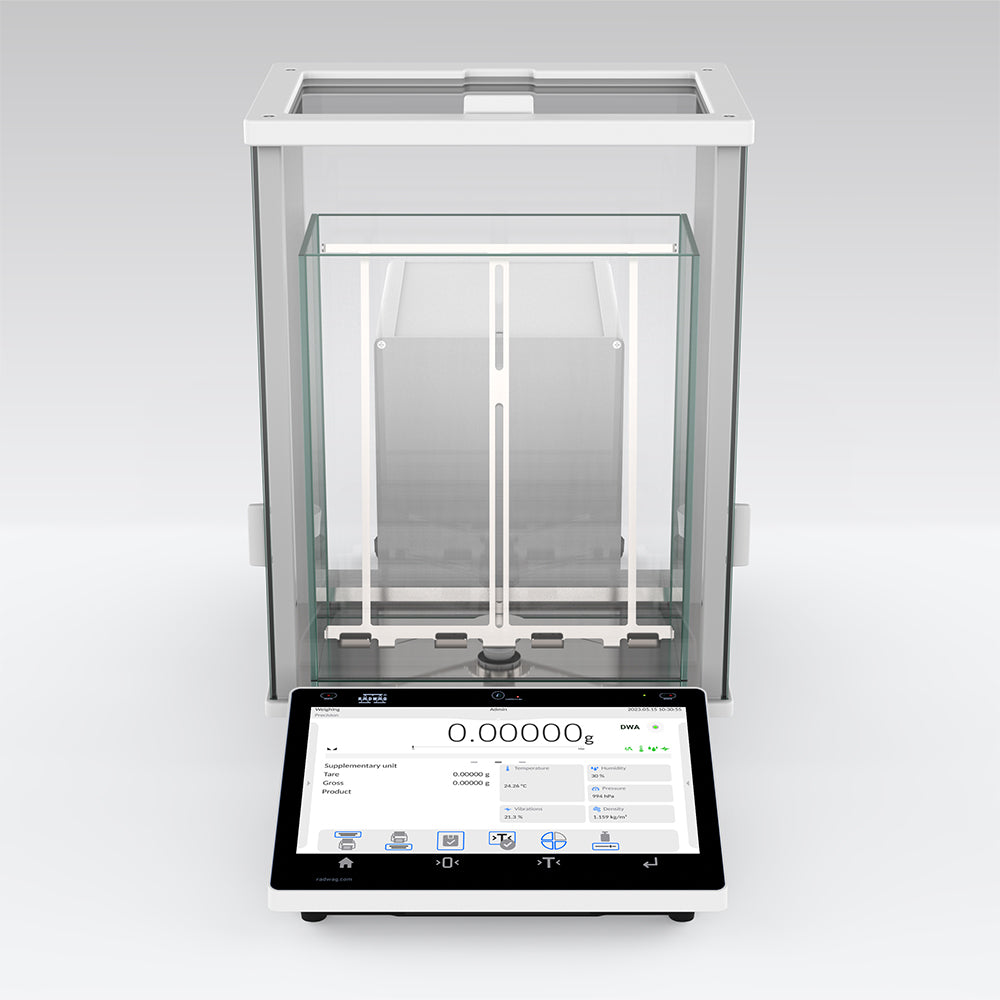

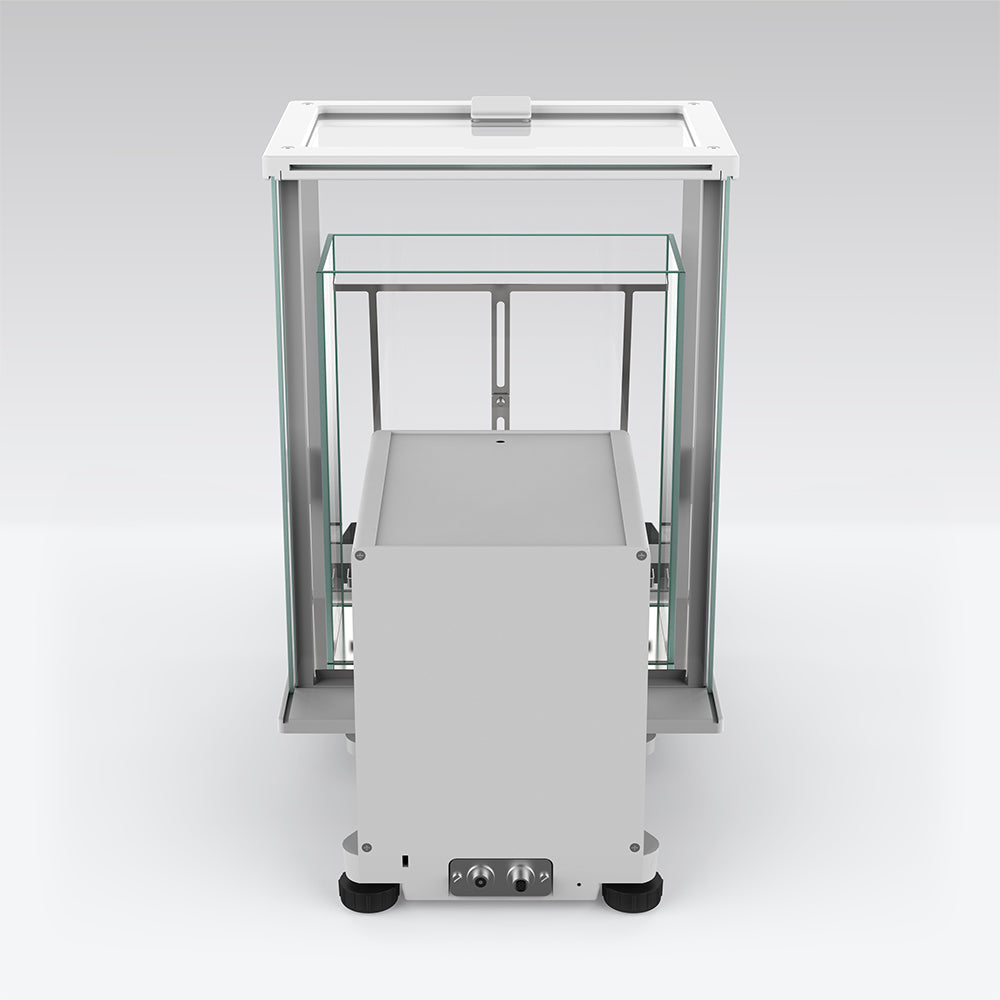

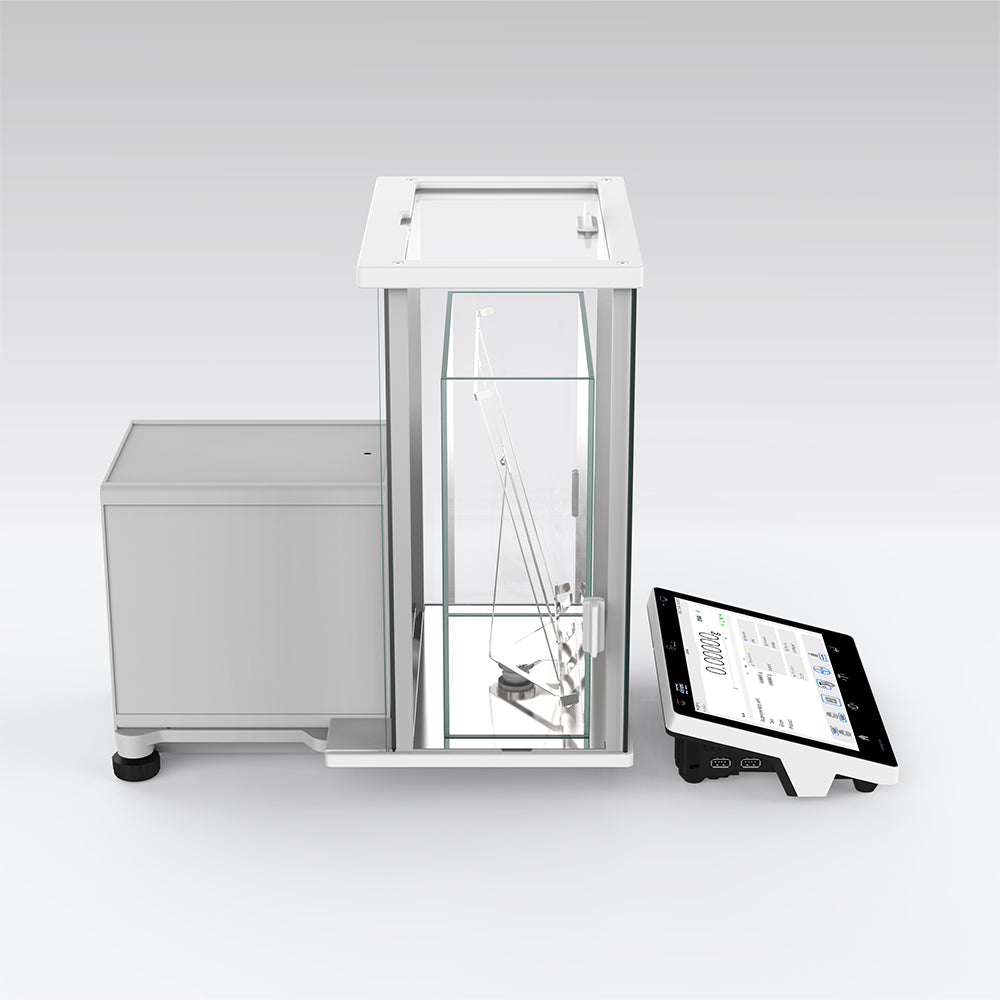

XA 52.5Y.F Analytical Balance for Filters


XA 5Y.F Analytical Balances are used in quality control processes, where accurate weighing of filters is used to assess filtration efficiency or to calculate the mass of particles retained by the filter. This task is made possible by a weighing pan for filters with which these balances are equipped in addition to the regular one.


Semi-automatic Leveling System

Semi-automatic Leveling System

The devices also have a manually opened weighing chamber and use a semi-automatic levelling system. Semi-automatic levelling, the so-called LevelSENSING System, has a great advantage over the manual levelling, in the case of the former one the user is prompted in which direction to level the balance. This shortens the very process.



Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?


If so, learn about the functionality of the ELLIPSIS series of balances:


Digital Weighing Auditor

Digital Weighing Auditor

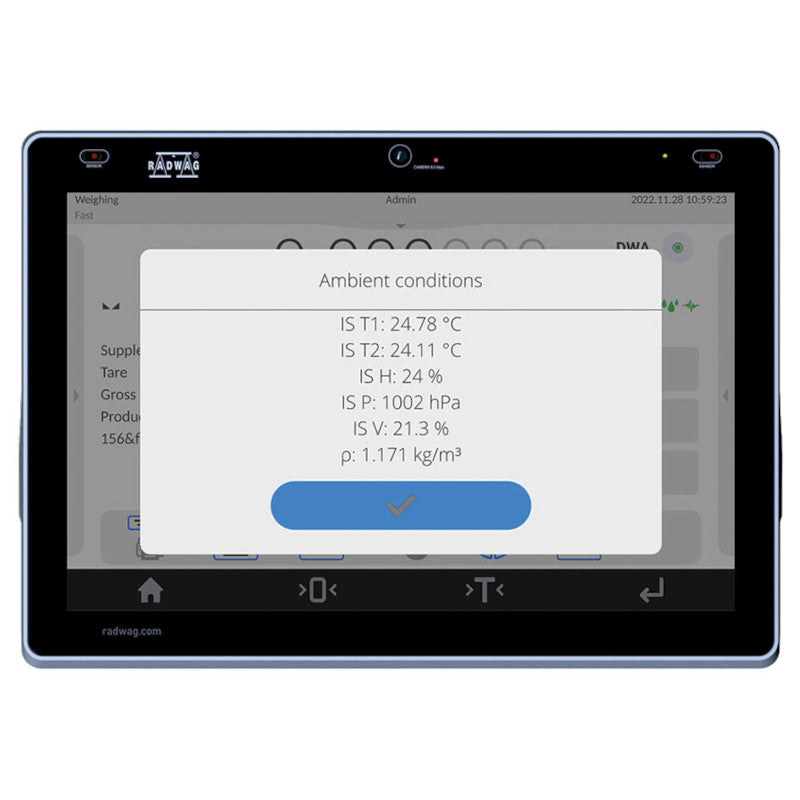

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.




10-Inch Display

10-Inch Display

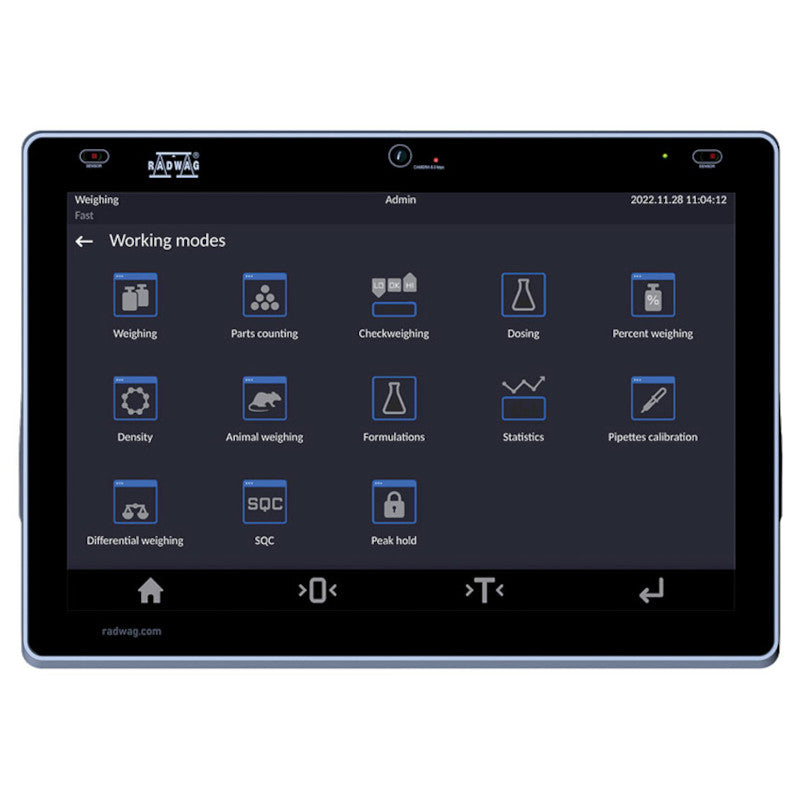

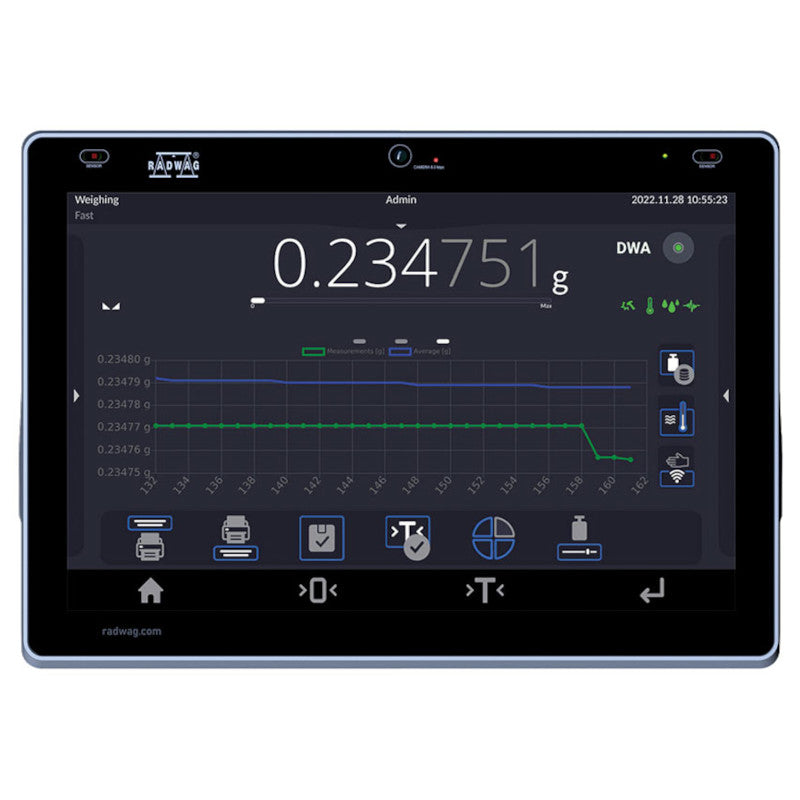

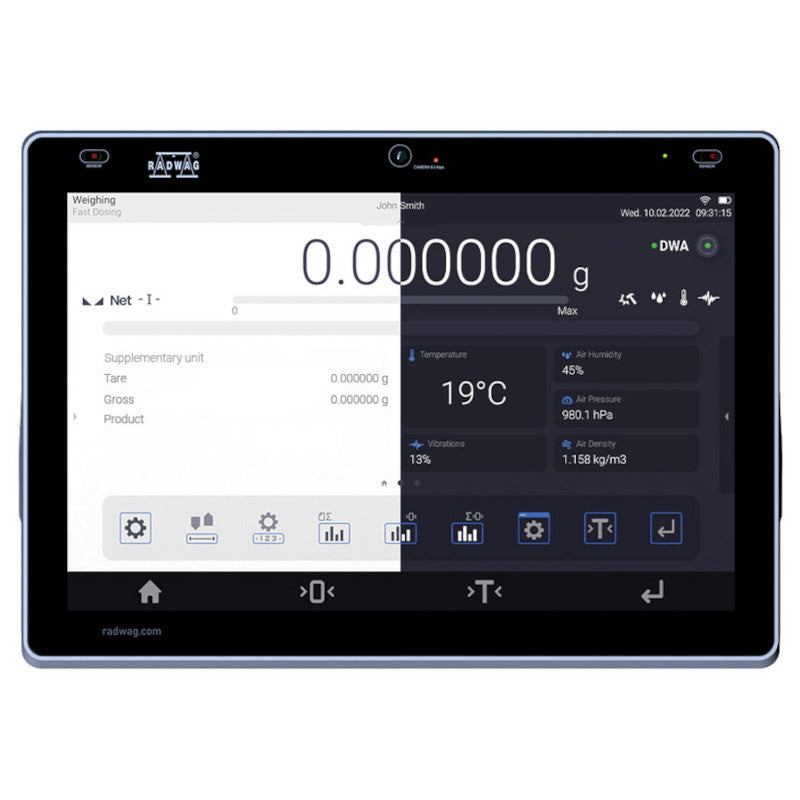

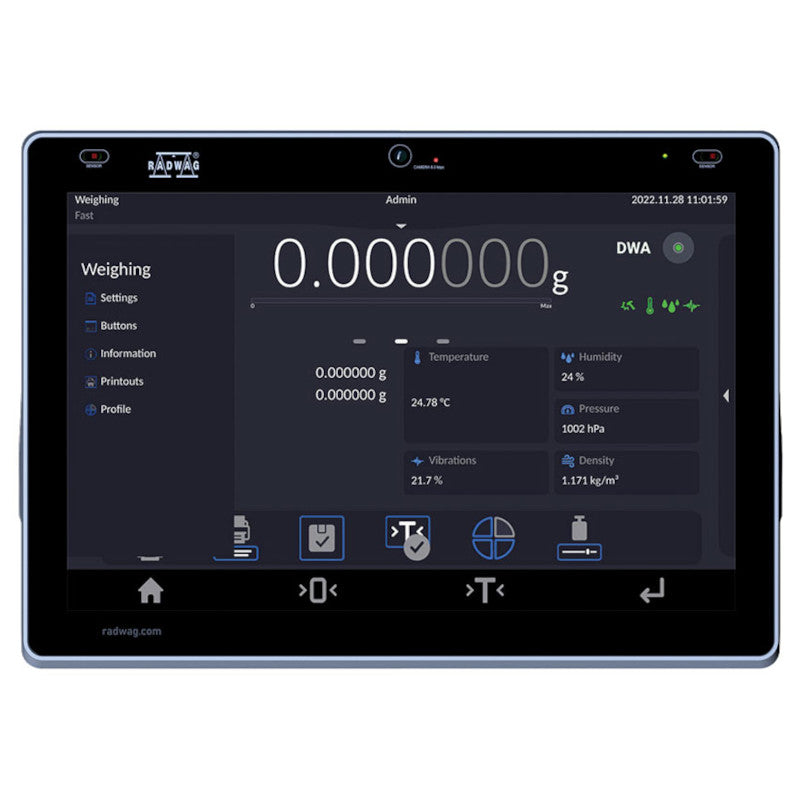

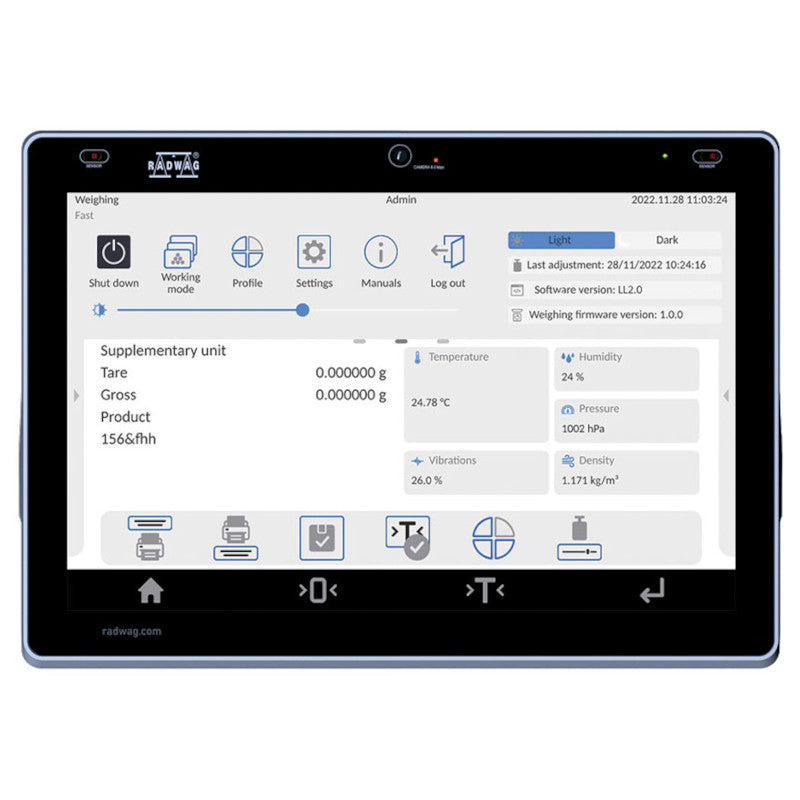

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.



Uncompromising User Verification

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.



Ambient Light – one look and everything is clear

Ambient Light – one look and everything is clear

The color of the backlight will tell you about status, process results, procedures or alerts. Advanced methods of communication of the balance with the user provide efficiency, transparency and convenience in daily work.



Hotspot

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.



RFID

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.



Live Note – Note Down Your Conclusions

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.



Handy Library

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.



Widgets

Widgets

Prepared to display what you need most at any given moment.



Smart Min Weight

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.



21 CFR Part 11

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails



Modbus TCP/IP

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.




Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.


Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.


* RFID ISO/IEC 14443 Type A, 13.56 MHz
