Vendor: Radwag
SKU: WL-110-1001
Availability: In Stock
Dhs. 51,281.00 AED
Dhs. 51,281.00 AED
Subtotal: Dhs. 51,281.00
Terms & Conditions

Estimated Delivery 10-14 business day

Free Shipping

Free standard shipping on orders over 185 AED

Free Returns

Learn More ...

Authorized distributor

XA 82/220.5Y

Radwag

XA 82/220.5Y

Dhs. 51,281.00
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y
XA 82/220.5Y

Radwag

XA 82/220.5Y

Dhs. 51,281.00
Products Specifications
Products Specifications
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

82 / 220

g

Minimum load

1

mg

Readability [d]

0.01 / 0.1

mg

Verification unit [e]

1

mg

Tare range

-220

g

Standard repeatability [5% Max]

0.005

mg

Standard minimum weight (USP)

10

mg

Standard minimum weight (U=1%, k=2)

1

mg

Permissible repeatability [5% Max]

0.012

mg

Permissible repeatability [Max]

0.08

mg

Linearity

±0.06 / 0.2

mg

Eccentric load deviation

0.2

mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4

s

Adjustment

internal (automatic)

OIML Class

I

Leveling system

semi-automatic – LevelSENSING

Display

10″ graphic colour touchscreen

Weighing chamber doors

manual

Delivery components

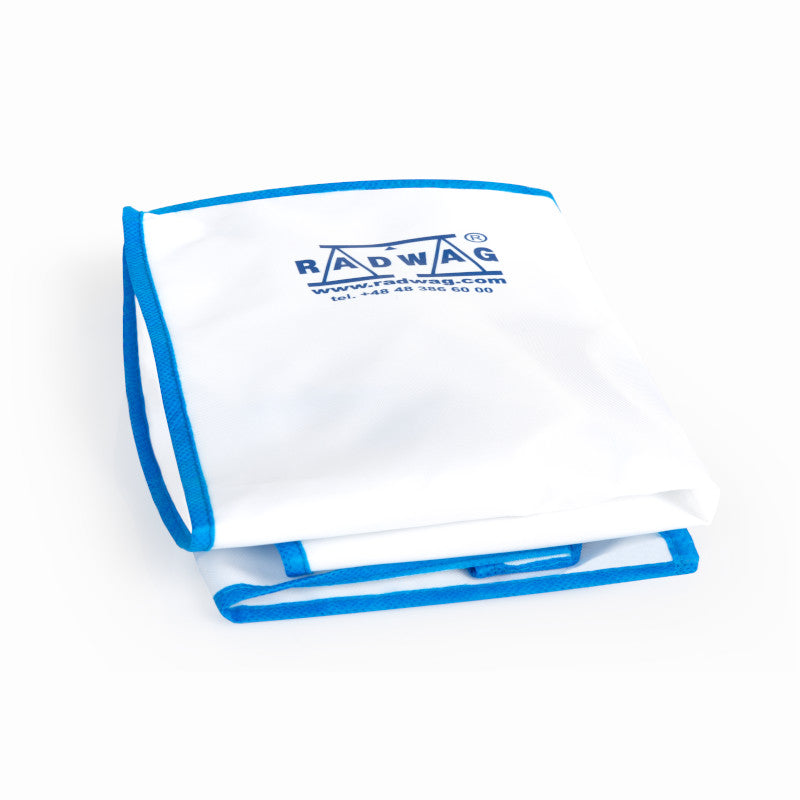

Analytical Balance, weighing pan, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.

Weighing chamber dimensions

168×160×228

mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option)

mm

Packaging dimensions W x D x H

750×492×595

mm

Net weight

9.8

kg

Gross weight

16

kg

Protection class

IP 43

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance: 12 – 15V DC 1.6A max*

Operating temperature

+10 – +40

°C

Operating temperature change rate

±0.3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Overview
Overview
x

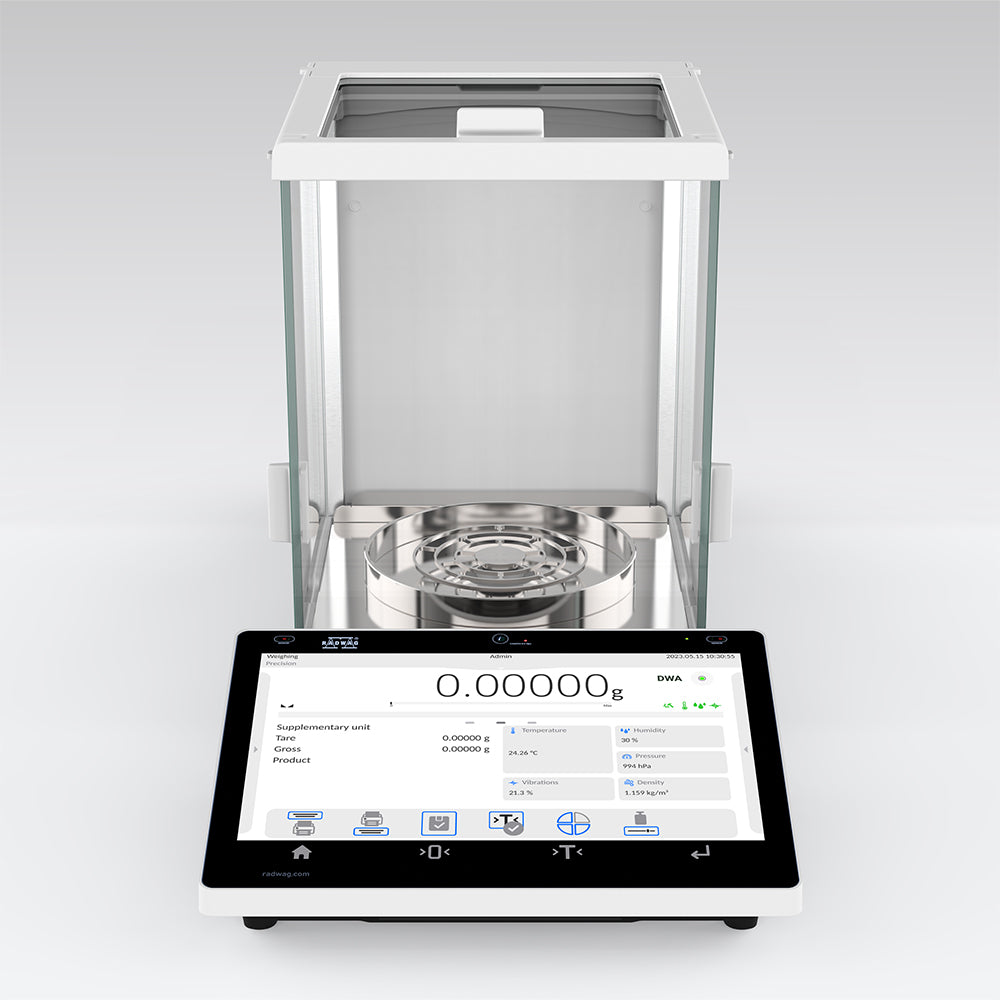

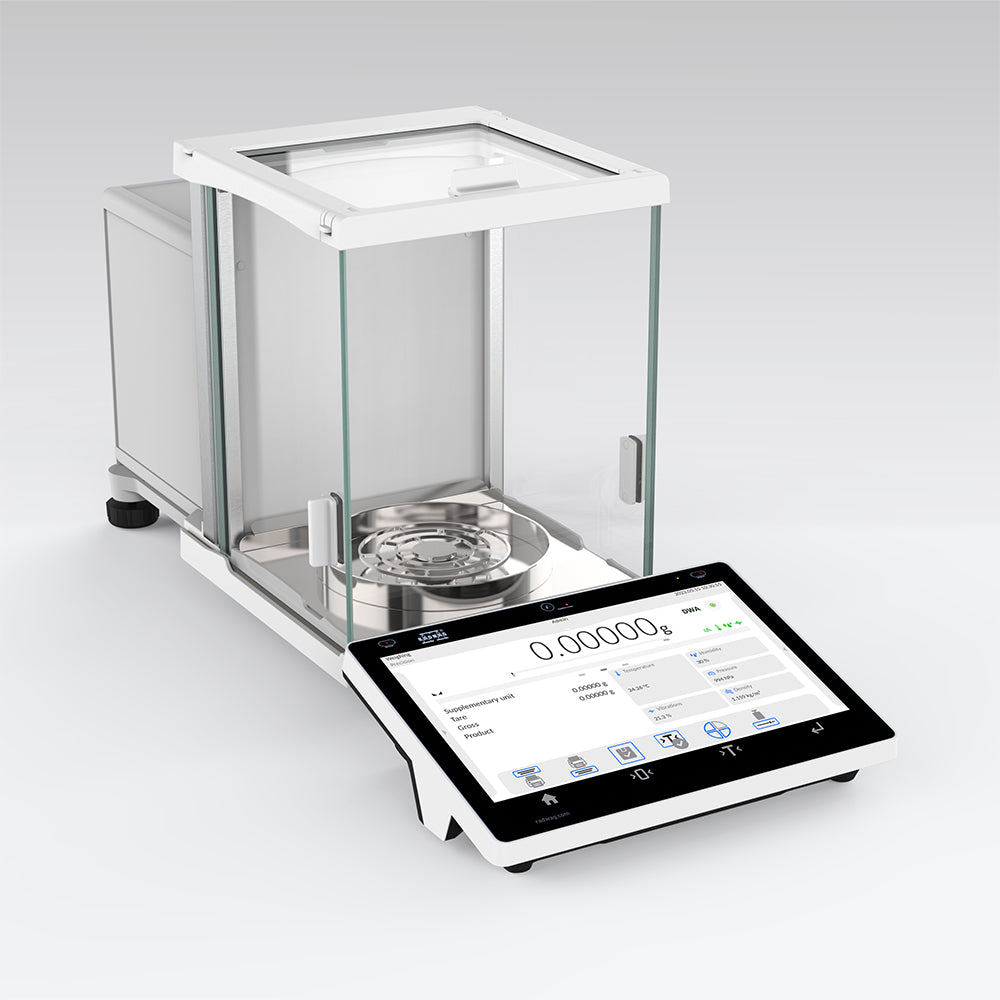

XA 82/220.5Y Analytical Balance


XA 5Y Analytical Balances, as measuring devices renowned for their high readability, high resolution and good repeatability, are key pieces of equipment in pharmaceutical, physical, chemical, biological, medical and many other laboratories.




Why Are the XA 5Y Balances Worthy of Consideration?


Semi-automatic levelling – LevelSENSING System

Semi-automatic levelling – LevelSENSING System

It tells the user which way he should level the balance. The system guides the user step by step, which minimizes the risk of errors during levelling and significantly reduces the time of this process.

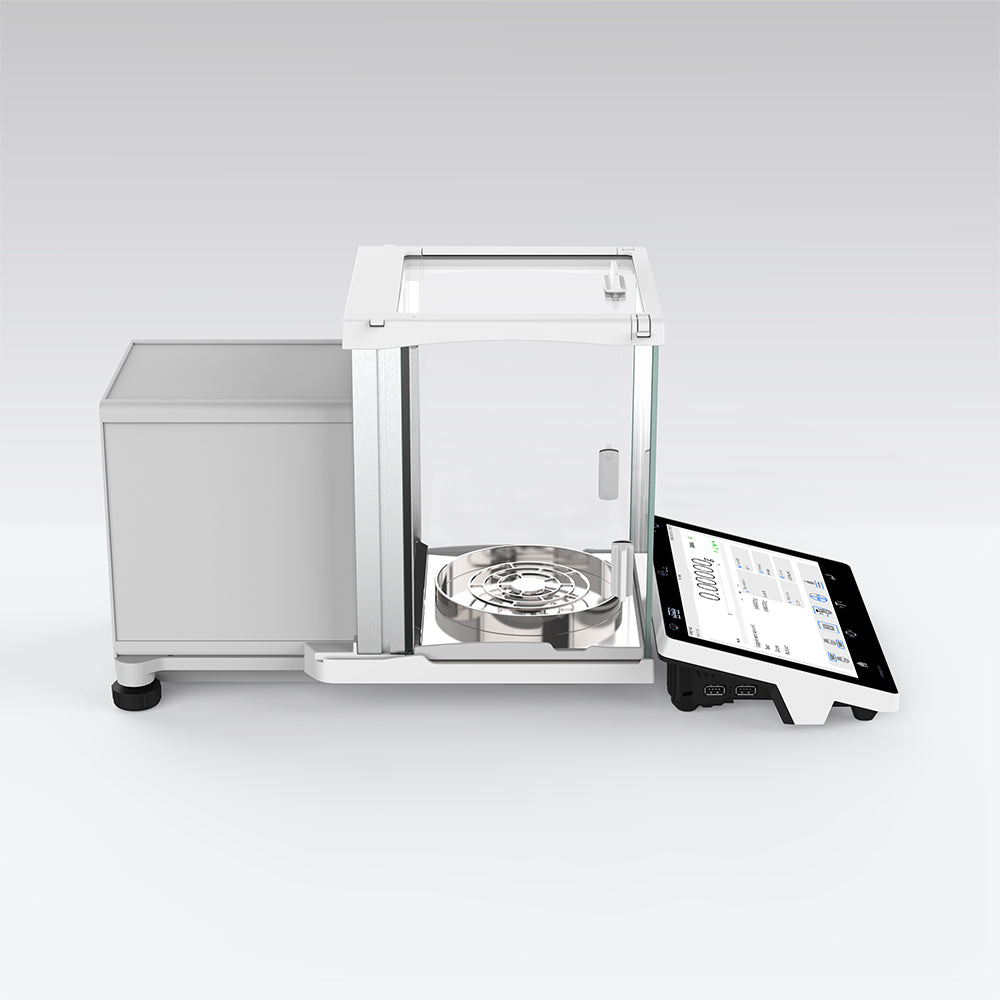

Manually opened weighing chamber

Manually opened weighing chamber

These balances offer a manually opening weighing chamber, which allows easy access to samples and their convenient placement on the balance. Opening the chamber manually allows full control over the weighing process and is ideal for those who need quick access to the sample.


Internal adjustment

Internal adjustment

A built-in internal adjustment and calibration system ensures automatic adjustment and calibration, which guarantees long-term precision and minimizes the need for manual intervention. As a result, users can rest assured that the balance always performs with the highest readability, regardless of operating conditions.

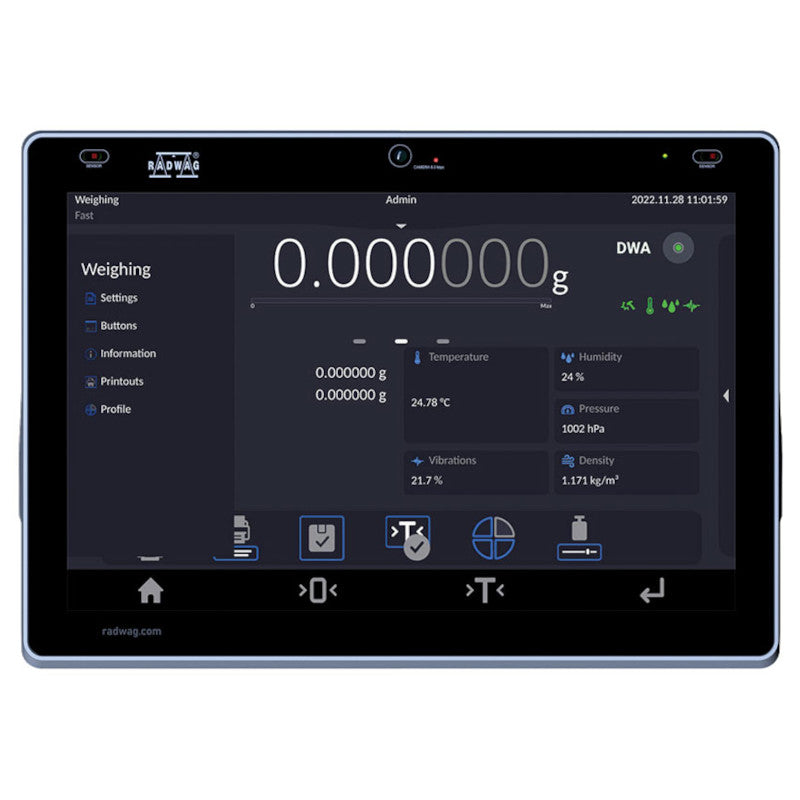

Digital Weighing Auditor

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

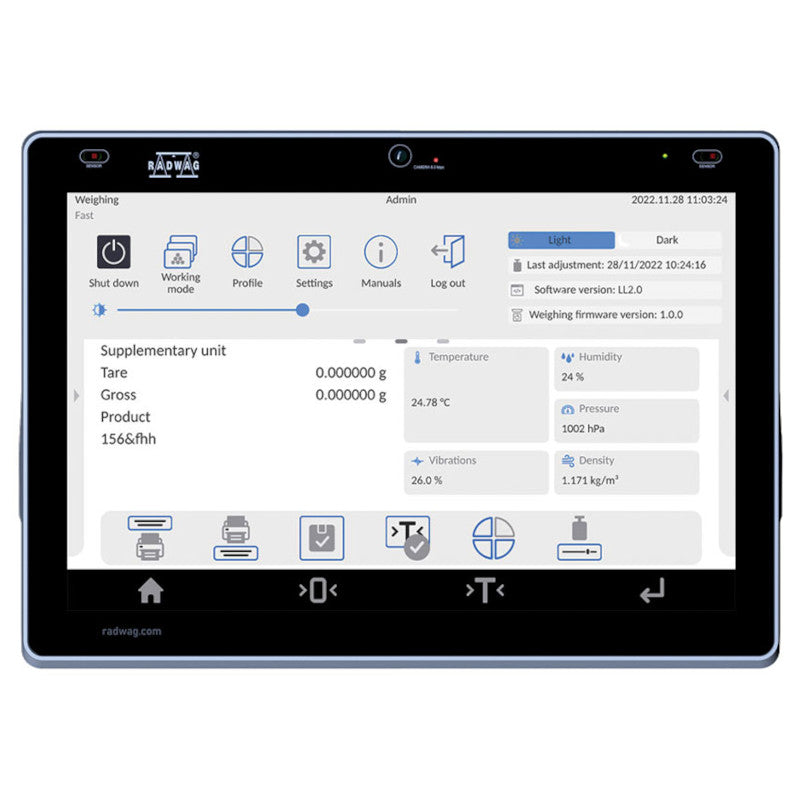

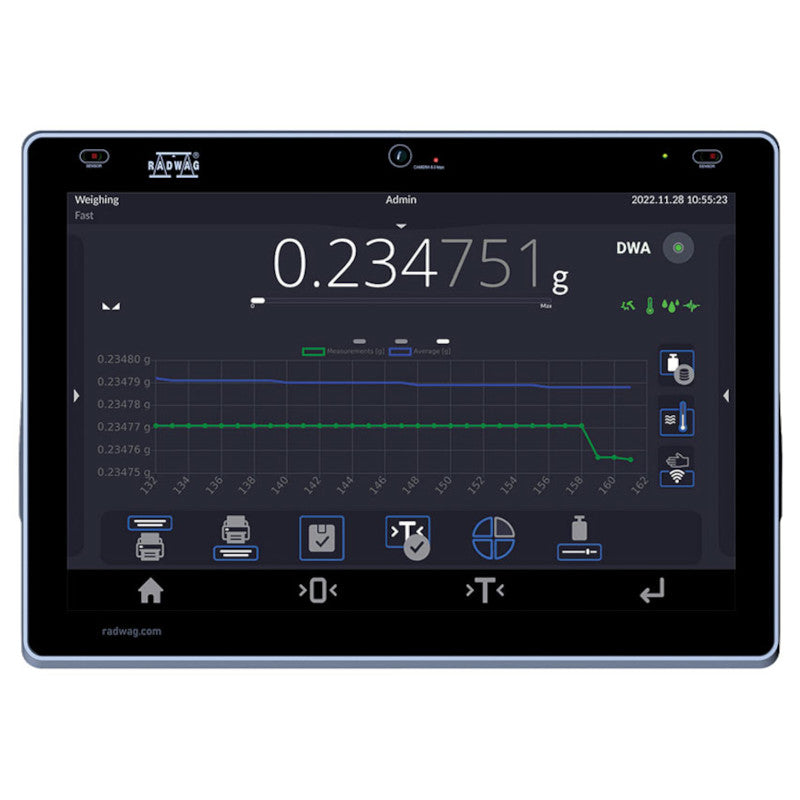

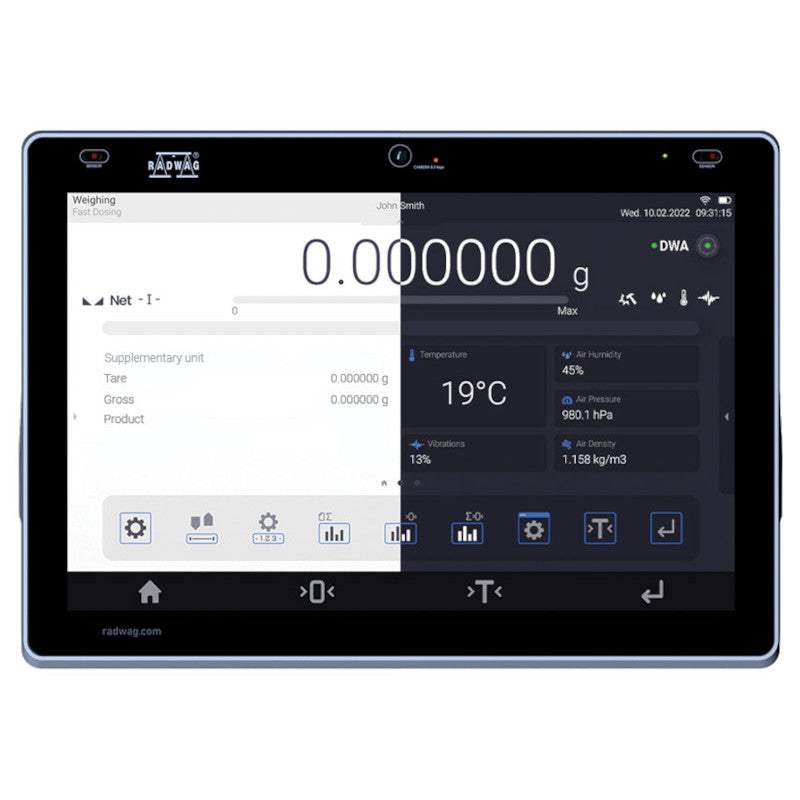

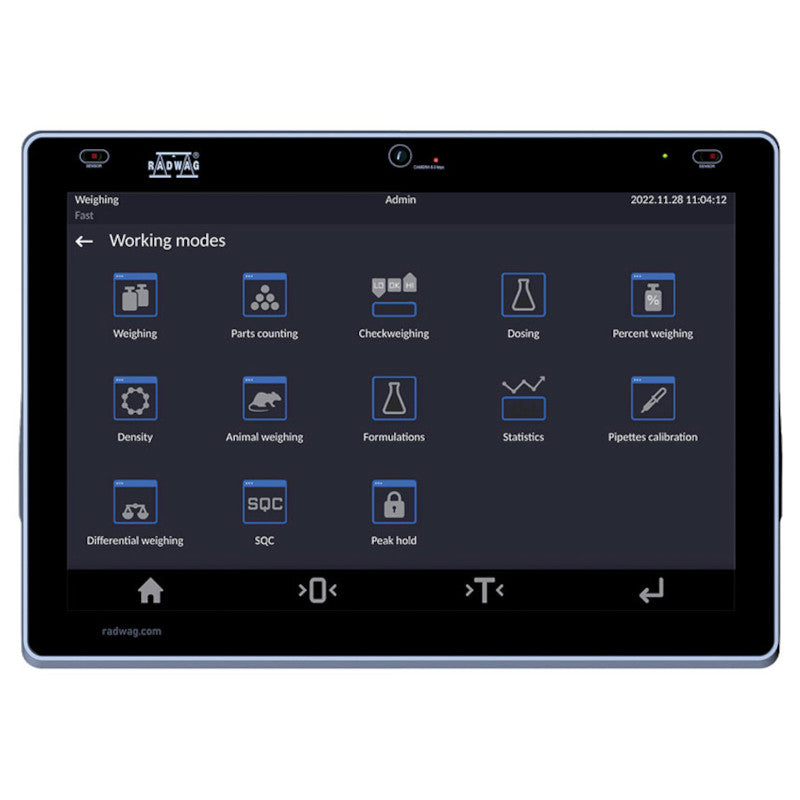

10-Inch Display

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.



Uncompromising User Verification

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.



Ambient Light – one look and everything is clear

Ambient Light – one look and everything is clear

The color of the backlight will tell you about status, process results, procedures or alerts. Advanced methods of communication of the balance with the user provide efficiency, transparency and convenience in daily work.




Hotspot

Hotspot

Lack of space in fume cupboard or no access to a weighing terminal? Or do you want to operate the balance remotely? Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.



RFID

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.



Live Note – Note Down Your Conclusions

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

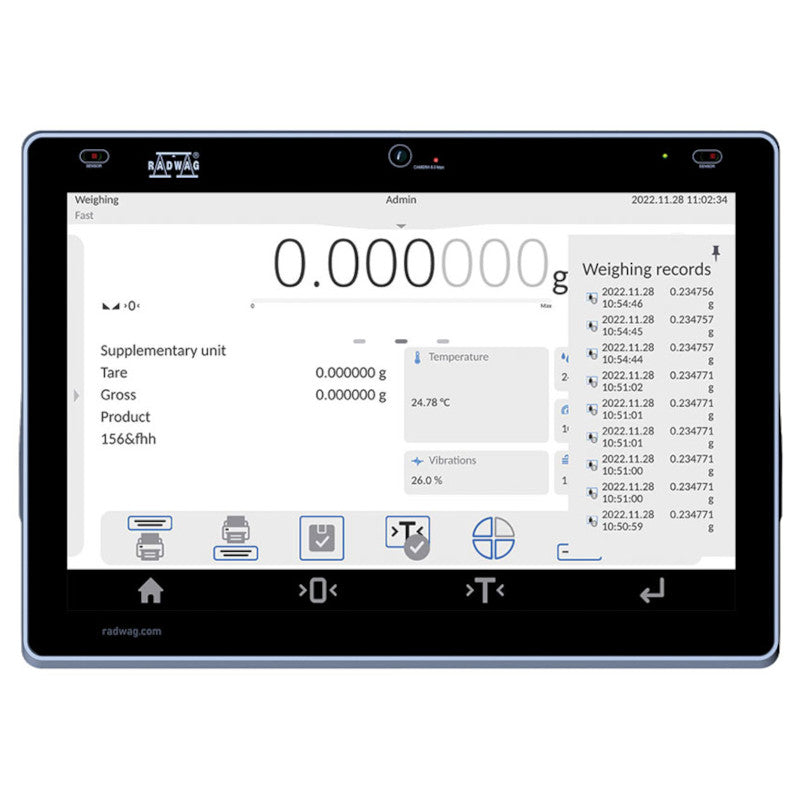

Handy Library

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.



Widgets

Widgets

Prepared to display what you need most at any given moment.



Smart Min Weight

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.



21 CFR Part 11

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails



Modbus TCP/IP

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.




Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.



Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.


* RFID ISO/IEC 14443 Type A, 13.56 MHz
