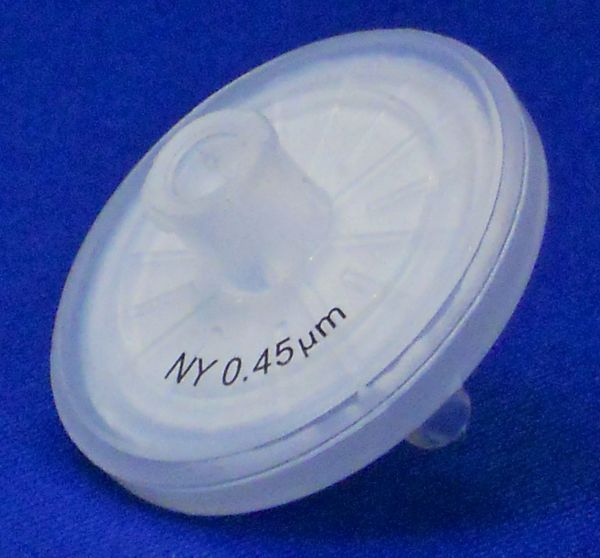

فلتر حقنة غير معقم من تريمونت IWT-ES-10601، قطر 4 مم، 0.22 ميكرومتر، غشاء نايلون، 200 قطعة

Filter Material Specs

Filtration Media / Application Guide (hydrophobic or hydrophilic) Glass microfiber filter media - prefilter versions available in all variations except MultiDensity which includes prefilter

Polyamide/Nylon (PA) - Hydrophilic

• Hydrophilic material; it is recommended for filtration of aqueous or organic/aqueous medium polar liquids.
• Commonly used for general laboratory filtration and filtration of HPLC and GC samples prior to injection
• Filtration of aqueous and organic-aqueous polar medium liquids
• Dissolution sample analysis
• Suitable for use with high pH samples
• Since it binds proteins it is NOT suitable for protein recovery applications
• With microfiber prefilter higher absorption capacity for contamination

Technical Specifications (13mm diameter barrel):

• Surface area (cm²): 0.65
• Sample volume (ml): <15
• Maximum pressure (bar): 45
• Hold up volume (µl): 8.5
• Connector inlet: Luer-Lok
• Connector outlet: luer-slip (non-barb)

Technical Specifications (25mm diameter barrel):

• Surface area (cm²): 3.90
• Sample volume (ml): <105
• Maximum pressure (bar): 90
• Hold up volume (µl): 28.5
• Connector inlet: Luer-Lok
• Connector outlet: luer-slip (non-barb)

Syringe Filter Capabilities

Beyond the extensive product selection found within our standard syringe filter list, we offer OEM capabilities for engineering, molding and insertion of many additional membrane and membrane/pre-filter options. We can work with most of our own membrane and specialty materials as well as convert your supplied product. Please contact us for full engineering capabilities as well as process flow and project management services in this field.

• Filter insertion in clean room by manual as well as fully automated means.
• Molding in place, over molding and support structure molding of fragile media.
• Ultrasonic welding of barrel structure for increased leak / burst resistance.
• Multi-process mold extensions for inclusion of single or multi-level prefiltration media.
• Digital variable print capabilities along arc on barrel face for identification purposes.
• Blister packing for EO and gamma sterilization.
• Pure virgin PP, verified by HPLC against U/L extractables.
