مواصفات المنتجات
مواصفات المنتجات
x
Metrological parameters
Physical parameters
Construction
Components and software
Features of use
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

220

g

Minimum load

10

mg

Readability [d]

0.1

mg

Verification unit [e]

1

mg

Tare range

-220

g

Standard repeatability [5% Max]

0.06

mg

Standard repeatability [Max]

0.07

mg

Standard minimum weight (USP)

120

mg

Standard minimum weight (U=1%, k=2)

12

mg

Permissible repeatability [5% Max]

0.09

mg

Permissible repeatability [Max]

0.1

mg

Linearity

±0.2

mg

Stabilization time

2

s

Adjustment

internal (automatic)

OIML Class

I

Leveling system

semi-automatic – LevelSENSING

Display

10″ graphic colour touchscreen

Weighing chamber doors

manual

Delivery components

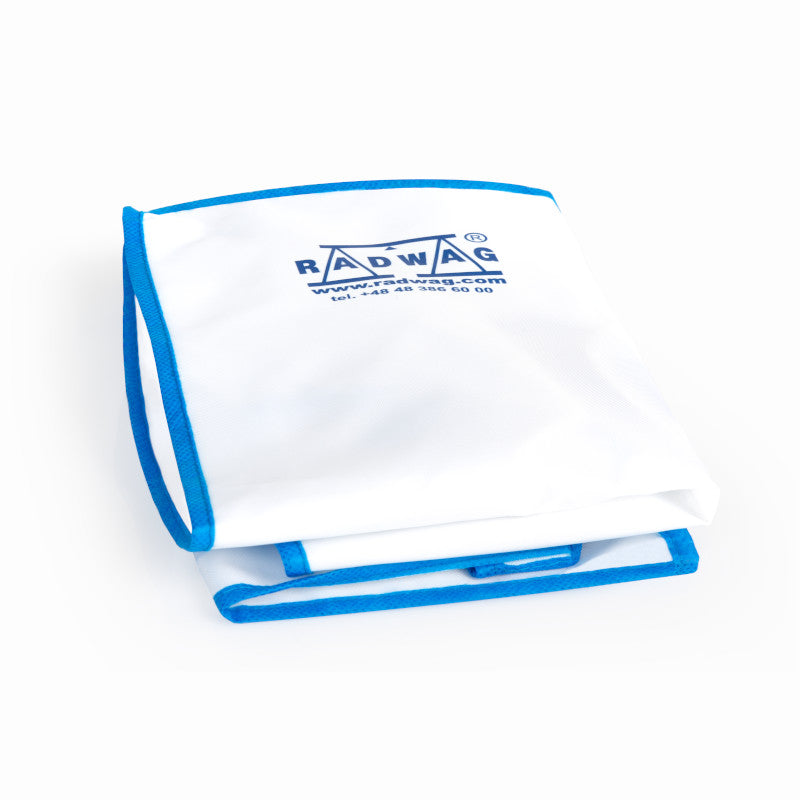

Balance, weighing pan, weighing pan shield, bottom cover, power supply, fabric dust cover.

Weighing chamber dimensions

190×190×227

mm

Weighing pan dimensions

ø100

mm

Packaging dimensions W x D x H

600×400×550

mm

Net weight

8.46

kg

Gross weight

13.05

kg

Protection class

IP 43

Database capacity

7

Touch-free operation

2 IR Sensors

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance: 12 – 15V DC 1.6A max; 10–19W*

Operating temperature

+10 – +40

°C

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity

40% – 80%

الشحن والإرجاع
الشحن والإرجاع
x

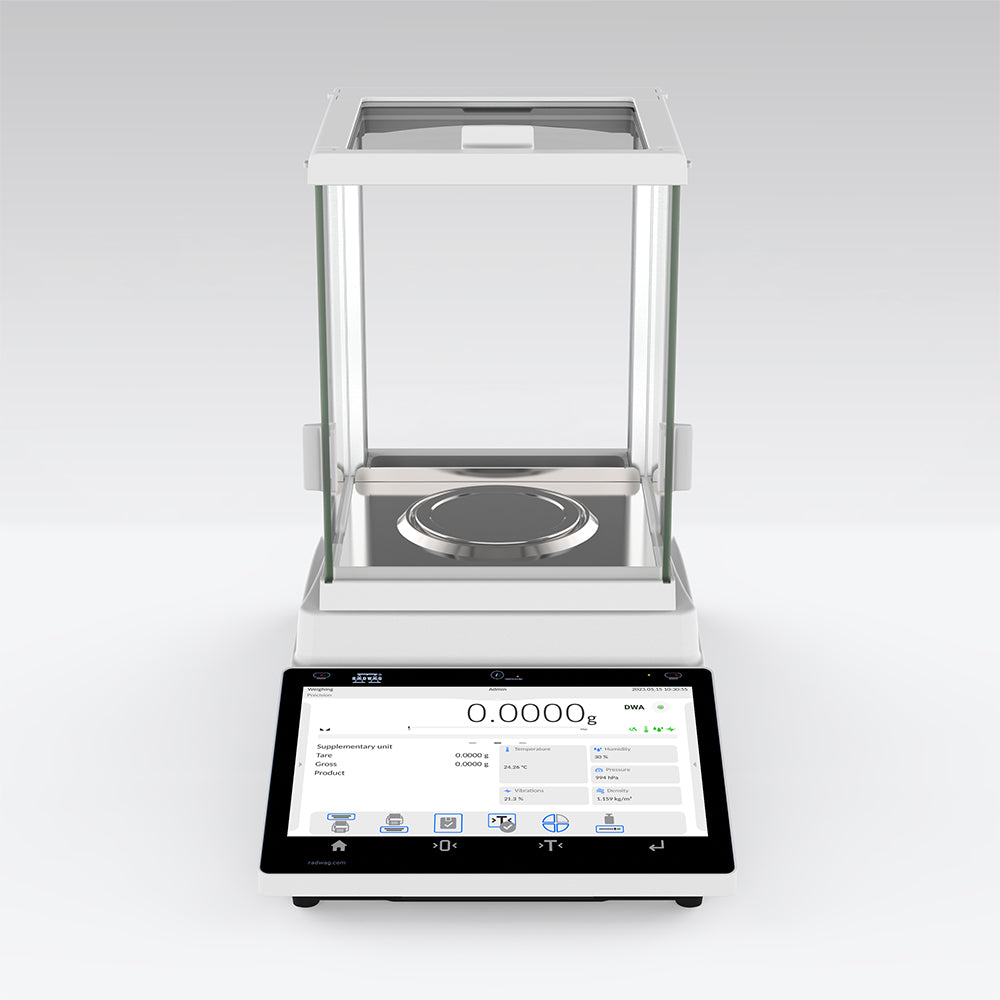

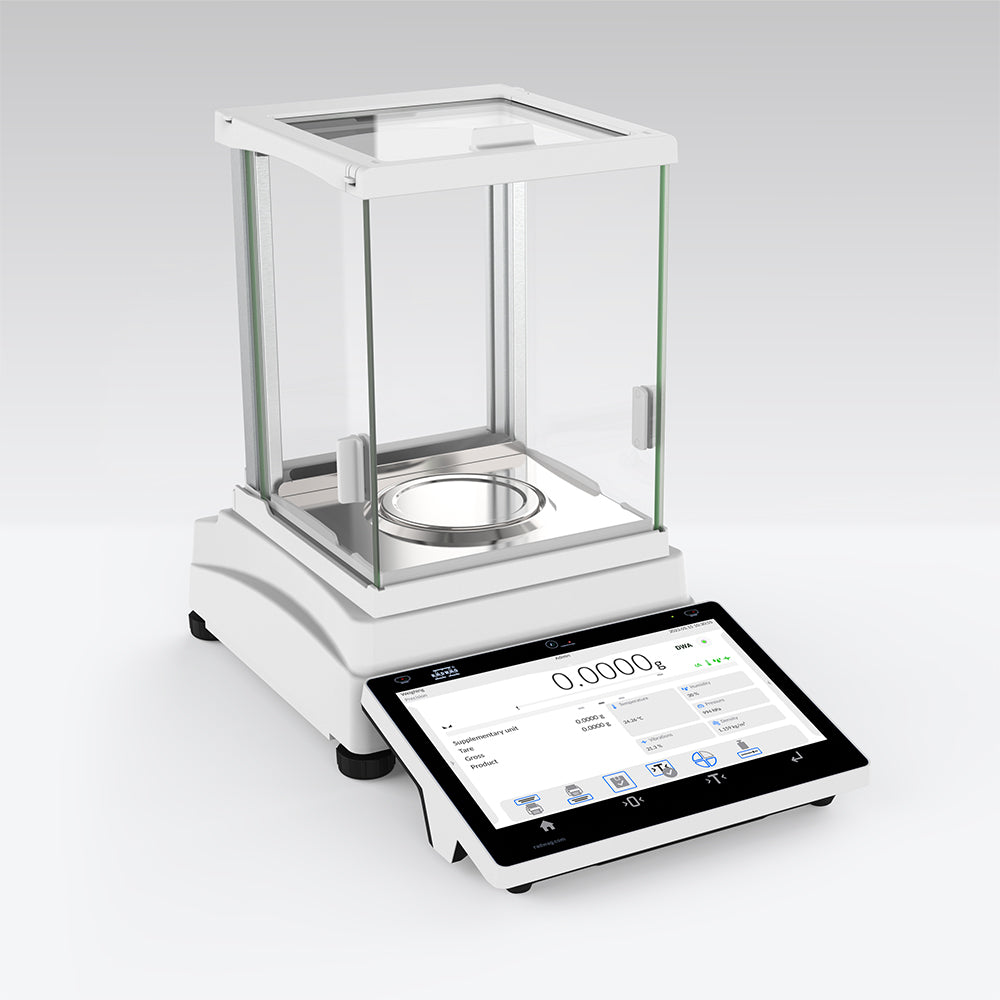

AS 220.5Y Analytical Balance


A very good repeatability, high readability and high resolution are the main features of AS 5Y Analytical Balances. These measuring devices are intended for weighing small masses (up to 3100 g) and, as a type of laboratory balance, are widely used in pharmaceutical, physical, chemical, biological, medical and other laboratories.





What Strengths Do the AS 5Y Analytical Balances Have?




10-Inch Display

10-Inch Display

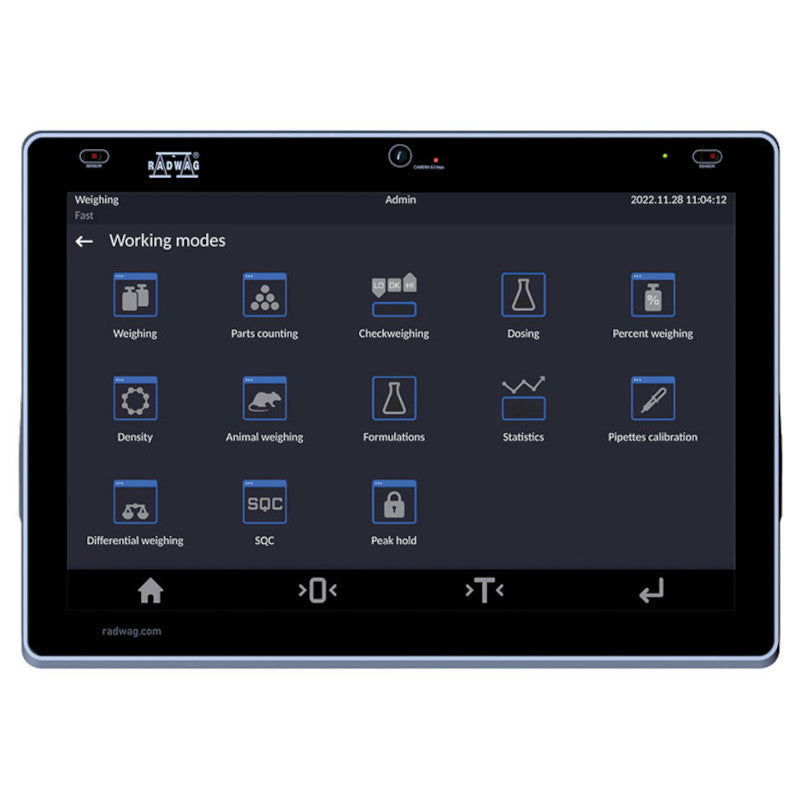

AS 5Y Analytical Balances have a comfortable 10-inch touchscreen display. A large display means more information at the same time. In addition, this series balances are equipped with a number of communication interfaces: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®.



Hotspot

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer. Hotspot allows remote operation of the balance in case of lack of access to the terminal or fume cupboard, as well as in other challenging situations.



Uncompromising User Verification

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.



RFID

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.



Digital Weighing Auditor

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.



Ambient Light – An Innovative Way for the Balance to Communicate With the User

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.



Live Note – Note Down Your Conclusions

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.



Handy Library

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.



Widgets

Widgets

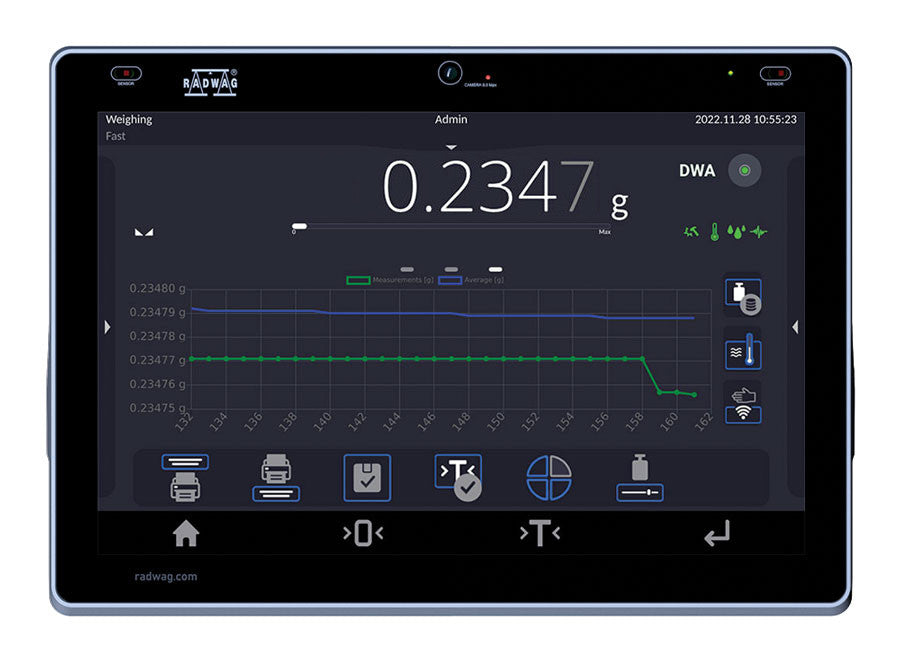

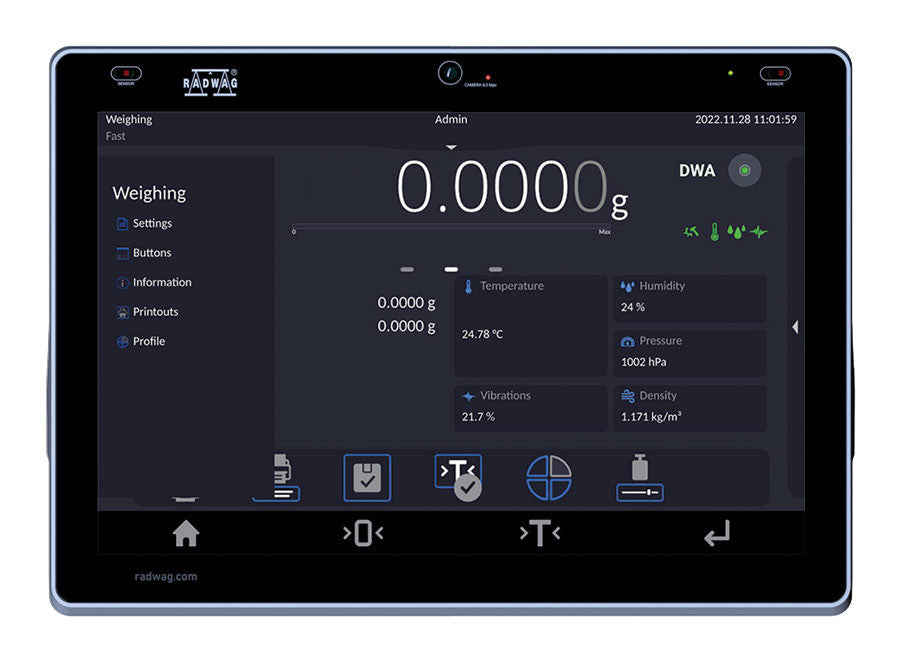

Prepared to display what you need most at any given moment.



Smart Min Weight

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.



21 CFR Part 11

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails



LevelSENSING System

LevelSENSING System

The AS 5Y Analytical Balances use a semi-automatic levelling system. Semi-automatic levelling, the so-called LevelSENSING System, works perfectly with the user, as it displays graphical information so that the user can see which way the balance should be levelled. This solution saves time and simplifies the procedure.



Manually opened weighing chamber

Manually opened weighing chamber

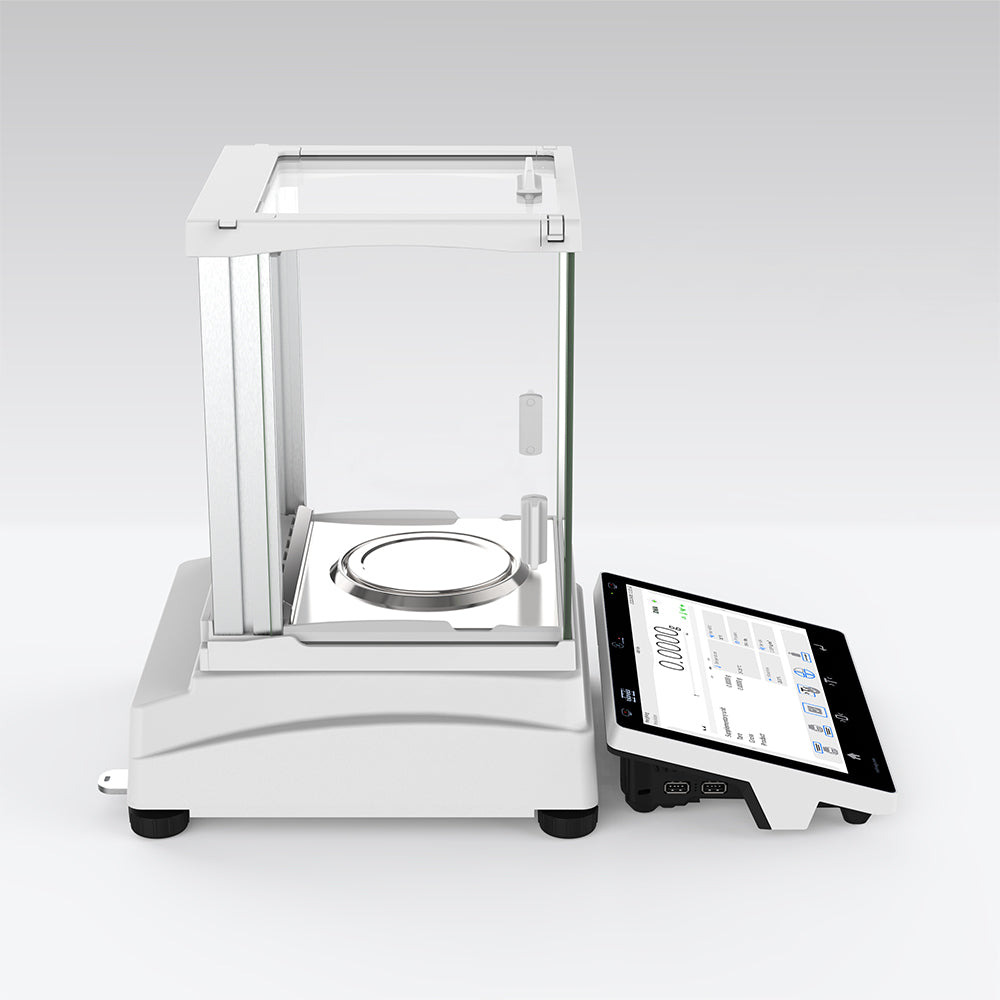

The AS 5Y Analytical Balances have a manually opened weighing chamber that can be disassembled without tools. The manually opened weighing chamber provides easy access to samples and facilitates handling. In addition, it allows you to adjust the work rate to the user and his/ her specific needs, as well as to the conditions in the laboratory. Tool-free disassembly of the chamber is a very ergonomic solution that does not require the user to have his own installation components.



Modbus TCP/IP

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.




Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.


Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.


* RFID ISO/IEC 14443 Type A, 13.56 MHz


Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications

Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
