C32.60.PM

C32.60.PM

بائع: Radwag
رمز المنتج: WL-223-0081
التوفر: في الأوراق المالية
Dhs. 24,007.00 AED
Dhs. 24,007.00 AED
المجموع الفرعي: Dhs. 24,007.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

C32.60.PM

Radwag

C32.60.PM

Dhs. 24,007.00
C32.60.PM

Radwag

C32.60.PM

Dhs. 24,007.00
مواصفات المنتجات
مواصفات المنتجات
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

60

kg

Minimum load

5

g

Preload range

6

kg

Readability [d]

0.1

g

Verification unit [e]

1

g

Tare range

-60

kg

Minimum weight (USP)

82

g

Minimum weight (U=1%,k=2)

8.2

g

Repeatability (Max)

0.15

g

Repeatability (5% Max)

0.041

g

Linearity

±0.3

g

Stabilization time

1

s

Adjustment

internal (automatic)

OIML Class

II

Leveling system

manual

Display

5” graphic colour

Weighing pan dimensions

400×500

mm

Packaging dimensions W x D x H

710×610×240

mm

Net weight

22

kg

Gross weight

25

kg

Protection class

IP 43

Communication interface

2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance: 10 – 12V DC 1A max

Operating temperature

+10 – +40

°C

الشحن والإرجاع
الشحن والإرجاع
x

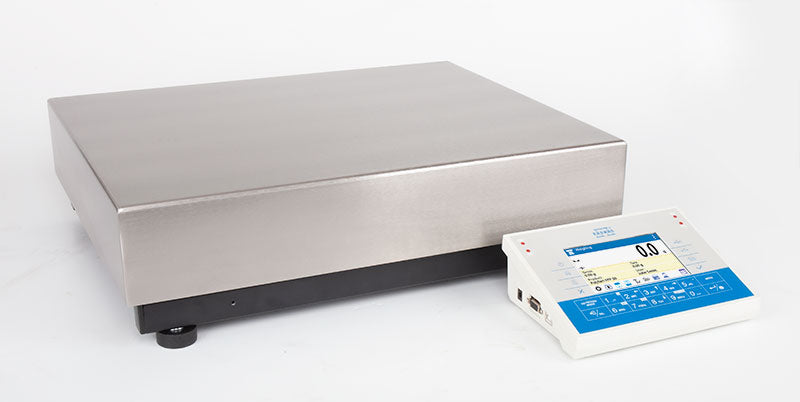

C32.60.PM Precision Balance


C32.PM series balances have been designed to enable precise determination of mass in laboratory.  Dosing, formulation-making, and parts counting are just some of the possible applications of these multi-purpose devices. PM balances not only provide an accurate reading and quick measurement, but they are also versatile, allowing them to be used in a variety of industrial sectors.



Laboratory Precision Under Industrial Conditions

Laboratory Precision Under Industrial Conditions

  • The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
  • minimum eccentricity error over the entire range,
  • quick and stable measurement (achievable within 1 second),
  • parameter stability over time and during transport,
  • weighing pan dimensions adapted to the accuracy of the balance
are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on RADWAG’s enhanced Laboratory Precision Under Industrial Conditions

MONO

BLOCK® technology.

The change in the design of the has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.



PM balances also include:

PM balances also include:

  • robust design based on a larger and taller Monoblock,
  • built-in 4-point overload protection system,
  • IP 43 ingress protection,
  • internal adjustment,
  • 5" colour display,
  • easy start-up, intuitive operation, and ergonomics.
PM balances will find use wherever high-accuracy, high-load-capacity weighing equipment is required.



Communication Interfaces

Communication Interfaces

Standard terminal has been equipped with RS 322, USB-A, USB-B, 4×IN, 4×OUT and Ethernet interfaces which facilitate both cooperation with peripherals such as printer or computer and data exchange using USB drives.

The terminal connects with wireless networks due to a Wireless Connection module, which comes standard.



THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.


* RFID ISO/IEC 14443 Type A, 13,56 MHz


Stainless Steel in RADWAG products
Learn about the use and maintenance of stainless steel products:
Stainless Steel in RADWAG products. Standard and special applications
