HABITAT cell sw 0.5 single-wall, for 0.5 l

HABITAT cell sw 0.5 single-wall, for 0.5 l

بائع: IKA
رمز المنتج: 10007644
التوفر: في الأوراق المالية
نوع المنتج: Bioreactors
Dhs. 57,938.00 AED
Dhs. 57,938.00 AED
المجموع الفرعي: Dhs. 57,938.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

HABITAT cell sw 0.5 single-wall, for 0.5 l

IKA

HABITAT cell sw 0.5 single-wall, for 0.5 l

Dhs. 57,938.00
HABITAT cell sw 0.5 single-wall, for 0.5 l

IKA

HABITAT cell sw 0.5 single-wall, for 0.5 l

Dhs. 57,938.00
مواصفات المنتجات
مواصفات المنتجات
x
ReactorCell Growth
Volume0.5 l
Typesingle wall
Heating blanketyes
Heating sleeve voltage48 V
Heating sleeve power75 W
Multi useyes
Autoclavableyes
Inner diameter90 mm
Ratio = height / inner diameter1.67
Useable volume min.0.25 l
Useable volume max.0.8 l
Reactor vessel materialborosilicate glass
Reactor lid materialstainless steel 1.4404
Net weight reactor vessel0.34 kg
Net weight reactor assembled6.4 kg
Number lid ports10
Lid ports (Baffle)1
Lid ports (pH)1
Lid ports (Reserve)0
Lid ports (Condenser)1
Lid ports (Cooling Finger)0
Lid ports (Inoculation)0
Lid ports (Harvest Pipe)1
Lid ports (Sparger)1
Lid ports (Feed)2
Lid ports (4in1)0
Lid ports (Temperature)1
Lid ports (DO)1
Lid ports (Level)1
Material in contact with mediumAISI 316L, borosilicate glass 3.3, silicone USP class VI
Motor couplingshaft feedthrough
Harvest pipe outer diameter6 mm
Harvest pipe inner diameter4
Harvest pipe designstraight
Harvest pipe, height adjustableyes
Feeding port, outer diamter4.5 mm
Feeding port, inner diamter2 mm
Feeding port, amount4
SpargerMicro sparger
Sparger, outer diameter8 mm
Sparger, inner diameter6 mm
Sparger pore size 5 μm
Stirrer designCentrifugal stirrer, 2-bladed
Stirrer diameter 3 pitchblade34 mm
Ratio = stirrerdiameter 3 blade / inner diameter reactor0.38
Stirrer quantity1
Condenseryes
Condenser, connection threatM16x2
Type of coolingVertical condenser
Condenser Temperature min.5 °C
Temperature min. / Condenser with Peltier15 °C
Temperature min. / Condenser with water cooling5 °C
Filtertypesterile filter
FiltermaterialPTFE reinforced with PP
Filter housing materialPP
Pore size0.22 μm
Filter heateryes
BaffleAccessory
Temperature measuringyes
Working temperature sensorPT1000
pH sensoryes
pH sensor connection threatPG 13.5
pO2 sensoryes
pO2 sensor connection threatPG 13.5
Level sensorIKA HA.s.lv
Foam sensorIKA HA.s.fo
Turbidity sensorAccessory
Conductivity sensorAccessory
CO2 sensorAccessory
Stirring motoryes
Speed range1 - 1400 rpm
Heat controlTouch display
Flowrate Air min.10 cc/min
Flowrate Air max.2000 cc/min
Flowrate O2 min.10 cc/min
Flowrate O2 max.2000 cc/min
Flowrate N2 min.10 cc/min
Flowrate N2 max.2000 cc/min
Flowrate CO2 min.10 cc/min
Flowrate CO2 max.2000 cc/min
Dimensions (W x H x D)185 x 365 x 185 mm
الشحن والإرجاع
الشحن والإرجاع
x

HABITAT cell sw 0.5 single-wall, for 0.5 l

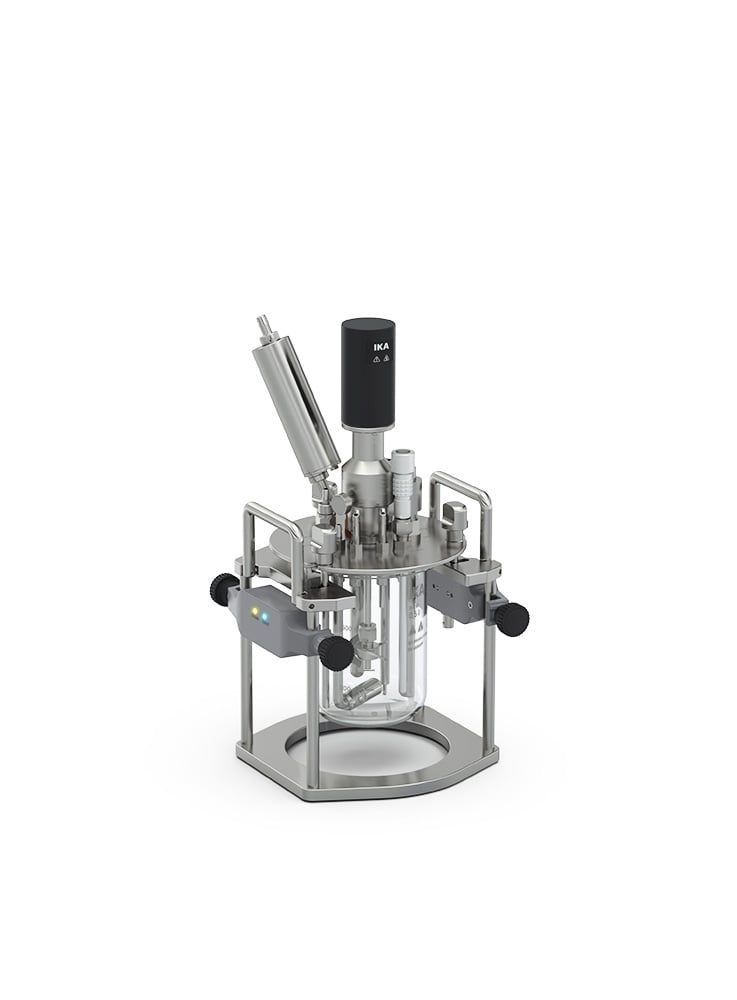

The 0.5-liter vessel package for the bioreactor HABITAT research contains a 0.5-liter single-walled glass vessel for cell culture applications as well as the appropriate stirring drive, including the following sensors: temperature-, pH-, DO-, level- and foam sensors. Additionally, the necessary connection accessories are included. Together with the separately available control tower package (e.g. HABITAT cell) you receive all necessary components for a successful cultivation.

Scope of delivery
  • Stand 0.5
  • HA.gv.sw.0.5 Glass vessel, single-wall, for 0.5 l
  • HA.mt.s.2 Motor, small, for 0.5, 1 and 2 l
  • HA.hp.s.0.5 Harvest pipe, straight, for 0.5 l
  • HA.fd Feeding port (2 pcs.)
  • HA.sp.m.0.5 Micro sparger, for 0.5 l
  • HA.cn Condenser
  • HA.ip.pi.0.5 3-pitched blade impeller, for 0.5 l
  • HA.s.tm.1 Temperature sensor, for 1 l
  • HA.s.ph.0.5 Hamilton pH sensor, for 0.5 l
  • HA.s.do.0.5 Hamilton DO analogue sensor, for 0.5 l
  • HA.s.fo Foam sensor
  • HA.s.lv.1 Fill level sensor, for 0.5 to 1 l
  • HA.hbl.0.5 Heating blanket, for 0.5 l
  • HA.cab.sw Cable & tube set, for single-wall vessels
  • HA.sf.250 Sample flask, 250 ml (4 pcs.)
