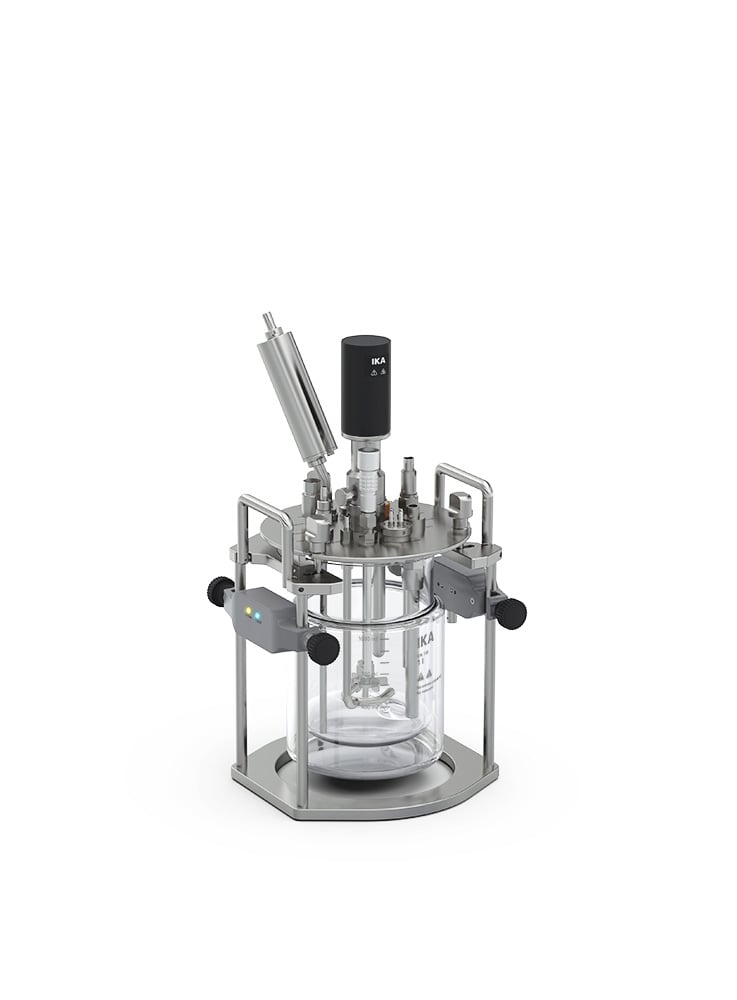

HABITAT ferment dw 1 double-wall, for 1 l

Name: HABITAT ferment dw 1 double-wall, for 1 l
Brand: IKA
SKU: 10007657
Price: 70334.0 USD
Availability: InStock

بائع: IKA

رمز المنتج: 10007657

التوفر: في الأوراق المالية

نوع المنتج: Bioreactors

Dhs. 70,334.00 AED; Dhs. 70,334.00 AED
سعر الوحدة: لكل

كمية:

المجموع الفرعي: Dhs. 70,334.00

انا موافق على الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

بائع: IKA

HABITAT ferment dw 1 double-wall, for 1 l

Dhs. 70,334.00

انا موافق على

كمية:

بائع: IKA

HABITAT ferment dw 1 double-wall, for 1 l

Dhs. 70,334.00

مواصفات المنتجات
الشحن والإرجاع
علامة التبويب المخصصة
Product Part
Document

Reactor	Fermenter
Volume	1 l
Type	double wall
Multi use	yes
Autoclavable	yes
Inner diameter	110 mm
Ratio = height / inner diameter	1.73
Useable volume min.	0.3 l
Useable volume max.	1.6 l
Reactor vessel material	borosilicate glass
Reactor lid material	stainless steel 1.4404
Net weight reactor vessel	1.14 kg
Net weight reactor assembled	8.09 kg
Number lid ports	12
Lid ports (Baffle)	1
Lid ports (pH)	1
Lid ports (Reserve)	2
Lid ports (Condenser)	1
Lid ports (Cooling Finger)	0
Lid ports (Inoculation)	1
Lid ports (Harvest Pipe)	1
Lid ports (Sparger)	1
Lid ports (Feed)	0
Lid ports (4in1)	1
Lid ports (Temperature)	1
Lid ports (DO)	1
Lid ports (Level)	1
Material in contact with medium	AISI 316L, borosilicate glass 3.3, silicone USP class VI
Motor coupling	shaft feedthrough
Harvest pipe outer diameter	6 mm
Harvest pipe inner diameter	4
Harvest pipe design	straight
Harvest pipe, height adjustable	yes
Feeding port, outer diamter	4.5 mm
Feeding port, inner diamter	2 mm
Feeding port, amount	4
Inoculation port, outer diamter	6 mm
Inoculation port, inner diameter	4 mm
Sparger	Ring sparger
Sparger, outer diameter	8 mm
Sparger, inner diameter	6 mm
Sparger pore size	500 Ã¼m
Stirrer design	Propeller stirrer, 6-bladed
Stirrer diameter 6 blade impeller	40 mm
Ratio = stirrerdiameter 6blade / inner diameter reactor	0.36
Stirrer quantity	1
Condenser	yes
Condenser, connection threat	M16x2
Type of cooling	Vertical condenser
Condenser Temperature min.	5 Ã°C
Temperature min. / Condenser with Peltier	15 Ã°C
Temperature min. / Condenser with water cooling	5 Ã°C
Filtertype	sterile filter
Filtermaterial	PTFE reinforced with PP
Filter housing material	PP
Pore size	0.22 Ã¼m
Filter heater	yes
Spin filter	40 Ã¼m
Baffle	Accessory
Temperature measuring	yes
Working temperature sensor	PT1000
pH sensor	yes
pH sensor connection threat	PG 13.5
pO2 sensor	yes
pO2 sensor connection threat	PG 13.5
Level sensor	IKA HA.s.lv
Foam sensor	IKA HA.s.fo
Turbidity sensor	Accessory
Conductivity sensor	Accessory
CO2 sensor	Accessory
Stirring motor	yes
Speed range	1 - 2000 rpm
Flowrate Air min.	100 cc/min
Flowrate Air max.	20000 cc/min
Flowrate O2 min.	100 cc/min
Flowrate O2 max.	20000 cc/min
Flowrate N2 min.	100 cc/min
Flowrate N2 max.	20000 cc/min
Flowrate CO2 min.	100 cc/min
Flowrate CO2 max.	20000 cc/min
Dimensions (W x H x D)	210 x 415 x 210 mm
