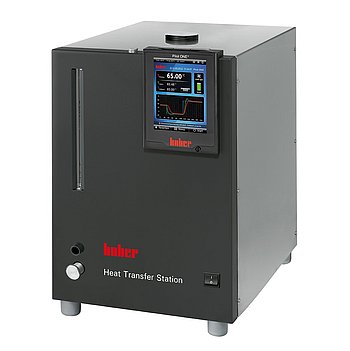

HTS 6

HTS 6

Performance Characteristics The HTS has no mechanical refrigeration but is fitted with a circulation pump and a...
بائع: Huber
رمز المنتج: 3011.0002.01
التوفر: في الأوراق المالية
نوع المنتج: Heat exchanger systems
Dhs. 75,700.00 AED
Dhs. 75,700.00 AED
المجموع الفرعي: Dhs. 75,700.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

HTS 6

Huber

HTS 6

Dhs. 75,700.00
HTS 6

Huber

HTS 6

Dhs. 75,700.00
مواصفات المنتجات
مواصفات المنتجات
x

Temperature range 3...95 °C
Temperature stability ±0,1 K
Alarm message optic, acoustic, relay
Controller Pilot ONE
Safety class I / NFL
Protection class IP20
Dimensions (W x D x H) 400 x 491 x 529 mm
Weight, net 34 kg

Delivery capacity pressure pump max. 25 l/min; 2,5 bar
Pump connection G3/4 AG male
Max. permissible viscosity 50 mm²/s
Pump speed adjustable no
Pump type B
Pump characteristics Pressure pump, speed not variable

External sensor connection Pt100
Control output (potential-free contact) POKO ONE
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Sound pressure level 58 dB(A)
Filling volume min. 5 l
Expansion volume 3 l
Cooling water connection G1/2 male
Cooling water differential pressure min. 2 bar
Cooling water pressure max. 6 bar
Power supply 200-240V 1~/2~ 50/60Hz
Current consumption max. 2 A
الشحن والإرجاع
الشحن والإرجاع
x

Functions overview

  • Efficient circulation pump
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • RS232 interface
  • Powerful circulation pump
  • Pt100 external sensor connection
  • Efficient thermal transfer
  • Low cooling water usage
  • Application protection with cooling stage separation
  • Optionally available with heating and over temperature protection

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more
