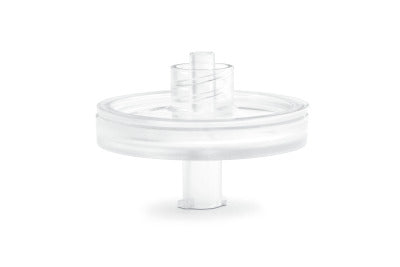

Minisart® HY PTFE Syringe Filter

Minisart® HY PTFE Syringe Filter

Individually packed and sterile Minisart® Standard HY syringe filters Type S6596 with a pore size of 0.2µm...
بائع: Sartorius
رمز المنتج: S6596------FMOSK
التوفر: في الأوراق المالية
نوع المنتج: Syringe Filters
Dhs. 718.00 AED
Dhs. 814.00 AED
Dhs. 718.00 AED
المجموع الفرعي: Dhs. 718.00
Sterilization Method: Ethylene oxide

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

Minisart® HY PTFE Syringe Filter

Sartorius

Minisart® HY PTFE Syringe Filter

Dhs. 814.00 Dhs. 718.00
Minisart® HY PTFE Syringe Filter

Sartorius

Minisart® HY PTFE Syringe Filter

Dhs. 814.00 Dhs. 718.00
Sterilization Method: Ethylene oxide
مواصفات المنتجات
مواصفات المنتجات
x

Applications

  • Application
    Sterilization and cleaning of air, gases and venting
  • Application Area
    • Venting
    • Moisture barrier
    • Sterile filtration

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Lock

Dimensions

  • Filter Diameter
    ⌀ 26 mm
  • Filtration Area
    5.3 cm²

General Specifications

  • Filter Paper/Membrane Color
    Clear
  • Flow Rate
    ≥ 2000 mL/min for air at 0.1 bar (1.45 psi)
  • Total Throughput
    Up to 200 mL
  • pH Range
    4.0 – 8.0

Materials of Construction

  • Housing Material
    Methacrylate butadiene styrene (MBS)
  • Membrane Material
    Polytetrafluorethylene (PTFE)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)
  • Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 1.1 bar (16 psi) with ethanol
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    0.2 µm
  • Wettability
    Hydrophobic

Product Information

  • Brand
    Minisart® HY
  • Device Type
    Syringe Filters
  • Pack Size
    50
  • Packaging
    Single blister packed
  • Sample Type
    Air/Gas

Sterility/Purity

  • Delivery Condition
    Sterile
  • Sterilization Method
    Ethylene oxide

Volume

  • Hold-up Volume
    ≤ 100 – 150 µL
الشحن والإرجاع
الشحن والإرجاع
x

Individually packed and sterile Minisart® Standard HY syringe filters Type S6596 with a pore size of 0.2µm are optimal for immediate usage whenever sterile filtration or venting is needed. Due to its hydrophobic nature the PTFE membrane functions as a water barrier and does not become wetted by aerosols. This keeps the hydrophobic venting filter permeable for gas or air! The housing of the filter is made of MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. Minisart® Standard Syringe Filters without CE marking are not for medical use.

  • Sterile and ready-to-use
  • ETO sterilized
  • Suitable as venting filter
علامة التبويب المخصصة
علامة التبويب المخصصة
x
Cursor
Product Part
Product Part
x
Cursor
Document
Document
x
  • Brochure

    Minisart® Syringe Filters — The Easy Choice – Clean and Safe

  • User Manual

    Instructions for Use Minisart® High Flow | NML | Air | HY | Acticosart Sartorius Syringe Filters for Liquid Filtration and Venting

  • User Manual

    Instructions for Use Minisart® NML, SRP & HY Sartorius Syringe Filters for Filtration Applications and Sterilization of Air
