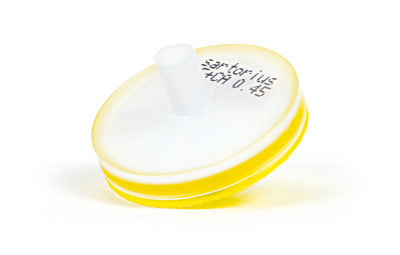

Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Individually packed and sterile Minisart® NML Plus syringe filters are optimal for immediate usage whenever sterile filtration...
بائع: Sartorius
رمز المنتج: 17829----------K
التوفر: في الأوراق المالية
نوع المنتج: Syringe Filters
Dhs. 804.00 AED
Dhs. 911.00 AED
Dhs. 804.00 AED
المجموع الفرعي: Dhs. 804.00
Delivery Condition: Sterile

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Sartorius

Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Dhs. 911.00 Dhs. 804.00
Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Sartorius

Minisart® NML Plus Glass Fiber 0.45 µm Surfactant-free Cellulose Acetate Syringe Filter

Dhs. 911.00 Dhs. 804.00
Delivery Condition: Sterile
مواصفات المنتجات
مواصفات المنتجات
x

Applications

  • Application
    Sterile filtration and clarification of difficult-to-filter aqueous and organic samples
  • Application Area
    • Clarification
    • Particle removal

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Lock

Dimensions

  • Filter Diameter
    ⌀ 28 mm
  • Filtration Area
    6.2 cm²

General Specifications

  • Filter Paper/Membrane Color
    Yellow
  • Flow Rate
    ≥ 160 mL/min for water at 1 bar (14.5 psi)
  • Total Throughput
    Up to 200 mL
  • pH Range
    4.0 – 8.0

Materials of Construction

  • Housing Material
    Methacrylate butadiene styrene (MBS)
  • Material Prefilters
    Glass Fiber (GF)
  • Membrane Material
    Surfactant-free Cellulose Acetate (SFCA)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)
  • Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 2.0 bar (44 29 psi) with water
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    0.45 µm
  • Retention Rate
    0.7 µm²
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Minisart® NML Plus
  • Device Type
    Syringe Filters
  • Pack Size
    50
  • Packaging
    Single blister packed
  • Sample Type
    Aqueous

Sterility/Purity

  • Delivery Condition
    Sterile
  • Sterilization Method
    Ethylene oxide

Volume

  • Hold-up Volume
    ≤ 100 – 150 µL
الشحن والإرجاع
الشحن والإرجاع
x

Individually packed and sterile Minisart® NML Plus syringe filters are optimal for immediate usage whenever sterile filtration or clarification and cell removal from highly particle-laden liquids is needed. The glass fibre prefilter protects the membrane from early clogging and increases total throughput. The very low non-specific binding characteristics of the SFCA membrane makes the filters a perfect choice for biomolecule solutions. The housing is made of the acrylic resin MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. GF and membrane in one filter housing decrease the hold-up volume. If this is no limiting factor a GF-only version is available and can be coupled with a membrane-only syringe filter of choice.

  • Sterile and ready-to-use
  • GF-prefilter for higher total throughout
  • Very low non-specific binding
  • PVC-free
  • GF-only version available
علامة التبويب المخصصة
علامة التبويب المخصصة
x
Cursor
Product Part
Product Part
x
Cursor
Document
Document
x
  • Catalog

    Laboratory Filtration Products Catalog

  • User Manual

    Minisart® Chemical Compatibility Guide

  • User Manual

    Instructions for Use Minisart® NML Plus | NY Plus High-capacity Sartorius Syringe Filters
