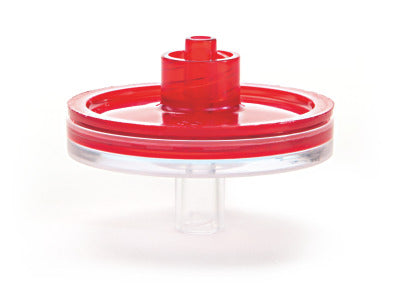

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Non-sterile Minisart® NML Plus syringe filters are supplied in bulk packs. This reduces waste and makes the...
بائع: Sartorius
رمز المنتج: 17825----------Q
التوفر: في الأوراق المالية
نوع المنتج: Syringe Filters
Dhs. 4,730.00 AED
Dhs. 5,363.00 AED
Dhs. 4,730.00 AED
المجموع الفرعي: Dhs. 4,730.00
Pack Size: 500

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Sartorius

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Dhs. 5,363.00 Dhs. 4,730.00
Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Sartorius

Minisart® NML Plus Glass Fiber 1.2 µm Cellulose Acetate Non Sterile Syringe Filter

Dhs. 5,363.00 Dhs. 4,730.00
Pack Size: 500
مواصفات المنتجات
مواصفات المنتجات
x

Applications

  • Application
    Clarification and particle removal of aqueous solutions such as media, buffers and sera
  • Application Area
    • Clarification
    • Particle removal

Connections (Physical)

  • Connector Inlet
    Female Luer Lock
  • Connector Outlet
    Male Luer Lock

Dimensions

  • Filter Diameter
    ⌀ 28 mm
  • Filtration Area
    6.2 cm²

General Specifications

  • Filter Paper/Membrane Color
    Red
  • Flow Rate
    ≥ 350 mL/min for water at 1 bar (14.5 psi)
  • Total Throughput
    Up to 200 mL
  • pH Range
    4.0 – 8.0

Materials of Construction

  • Housing Material
    Methacrylate butadiene styrene (MBS)
  • Material Prefilters
    Glass Fiber (GF)
  • Membrane Material
    Cellulose Acetate (CA)

Operating Conditions

  • Maximum Allowable Working Temperature
    60 °C (140 °F)
  • Maximum Operating Pressure
    4.5 bar (65 psi)
  • Operating Pressure
    4.5 bar (65 psi)

Physicochemical Information

  • Bubble Point
    ≥ 0.7 bar (44 10 psi) with water
  • Burst Pressure
    ≥ 7.0 bar (102 psi)
  • Pore Size
    1.2 µm
  • Retention Rate
    0.7 µm²
  • Wettability
    Hydrophilic

Product Information

  • Brand
    Minisart® NML Plus
  • Device Type
    Syringe Filters
  • Pack Size
    500
  • Packaging
    Bulk packed
  • Sample Type
    Aqueous

Sterility/Purity

  • Delivery Condition
    Non-Sterile
  • Sterilization Method
    • Ethylene oxide
    • Gamma irradiation

Volume

  • Hold-up Volume
    ≤ 100 – 150 µL
الشحن والإرجاع
الشحن والإرجاع
x

Non-sterile Minisart® NML Plus syringe filters are supplied in bulk packs. This reduces waste and makes the handling easier whenever the application allows the removal of particles or cells from highly particle -laden liquids under non-sterile conditions. The glass fibre prefilter protects the membrane from early clogging and increases total throughput. The very low non-specific binding characteristics of the SFCA membrane makes the filters a perfect choice for biomolecule solutions. The housing is made of the acrylic resin MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates. It is glueable, e.g. to tubing, what enables assembly and sterilization by the user. GF and membrane in one filter housing decrease the hold-up volume. If this is no limiting factor a GF-only version is available and can be coupled with a membrane-only syringe filter of choice.

  • Sterile and ready-to-use
  • GF-prefilter for higher total throughout
  • Very low non-specific binding
  • PVC-free
  • GF-only version available
علامة التبويب المخصصة
علامة التبويب المخصصة
x
Cursor
Product Part
Product Part
x
Cursor
Document
Document
x
  • Catalog

    Laboratory Filtration Products Catalog

  • User Manual

    Minisart® Chemical Compatibility Guide

  • User Manual

    Instructions for Use Minisart® NML Plus | NY Plus High-capacity Sartorius Syringe Filters
