MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y

MYA 11/52.5Y

بائع: Radwag
رمز المنتج: WL-109-1001
التوفر: في الأوراق المالية
Dhs. 110,736.00 AED
Dhs. 110,736.00 AED
المجموع الفرعي: Dhs. 110,736.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

MYA 11/52.5Y

Radwag

MYA 11/52.5Y

Dhs. 110,736.00
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y
MYA 11/52.5Y

Radwag

MYA 11/52.5Y

Dhs. 110,736.00
مواصفات المنتجات
مواصفات المنتجات
x
Metrological parameters
Physical parameters
Construction
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max]

11 / 52

g

Minimum load

0.1

mg

Readability [d]

1 / 10

µg

Verification unit [e]

1

mg

Tare range

-52

g

Standard repeatability [5% Max]

0.7

µg

Standard repeatability [Max]

9

µg

Standard minimum weight (USP)

1.4

mg

Standard minimum weight (U=1%, k=2)

0.3

mg

Permissible repeatability [5% Max]

2.7

µg

Permissible repeatability [Max]

15

µg

Linearity

±10 / 30

µg

Eccentric load deviation

6 / 10

µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

3.5

s

Adjustment

internal (automatic)

OIML Class

I

Leveling system

automatic – Reflex Level System

Display

10″ graphic colour touchscreen

Weighing chamber doors

automatic

Delivery components

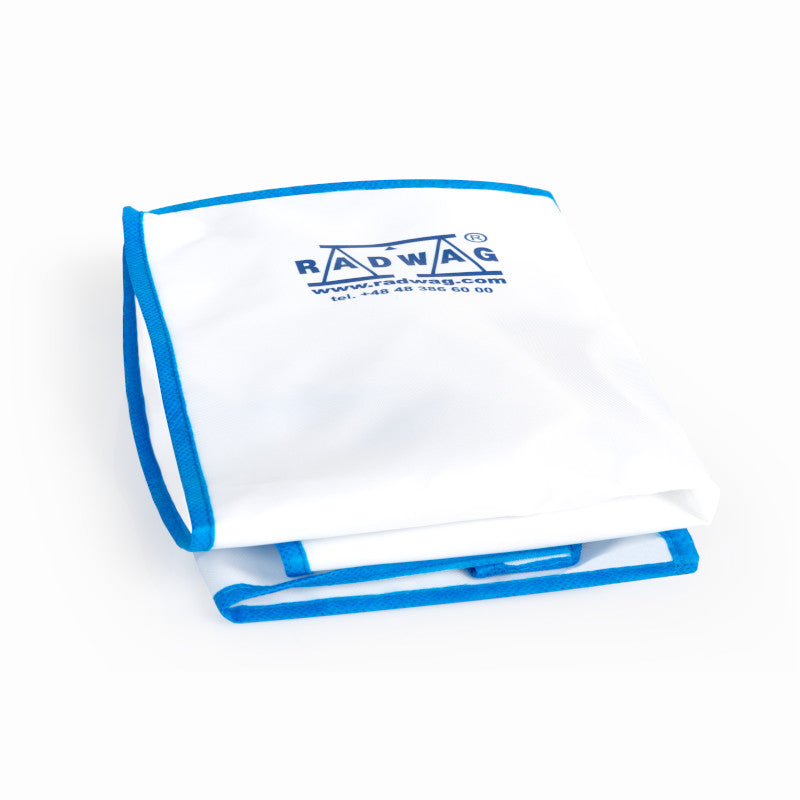

Microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, pincette, brush, fabric dust cover.

Weighing chamber dimensions

ø 90×90

mm

Weighing pan dimensions

ø26 + ø40

mm

Packaging dimensions W x D x H

750×492×595

mm

Net weight

10.6

kg

Gross weight

16.5

kg

Protection class

IP 43

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance: 12 – 15V DC 1.4A max*

Operating temperature

+10 – +40

°C

Operating temperature change rate

±0.3 °C / 1 h (±1 °C / 8 h)

Relative humidity

40% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

الشحن والإرجاع
الشحن والإرجاع
x

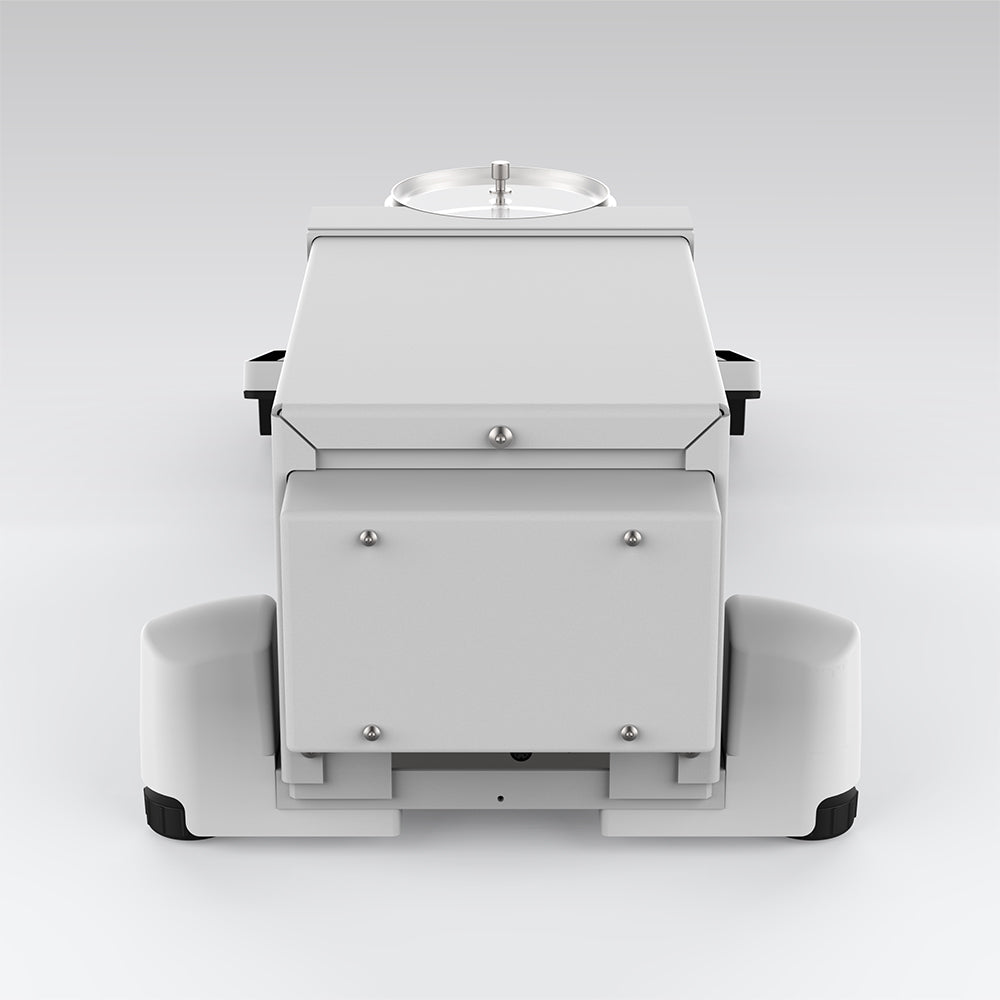

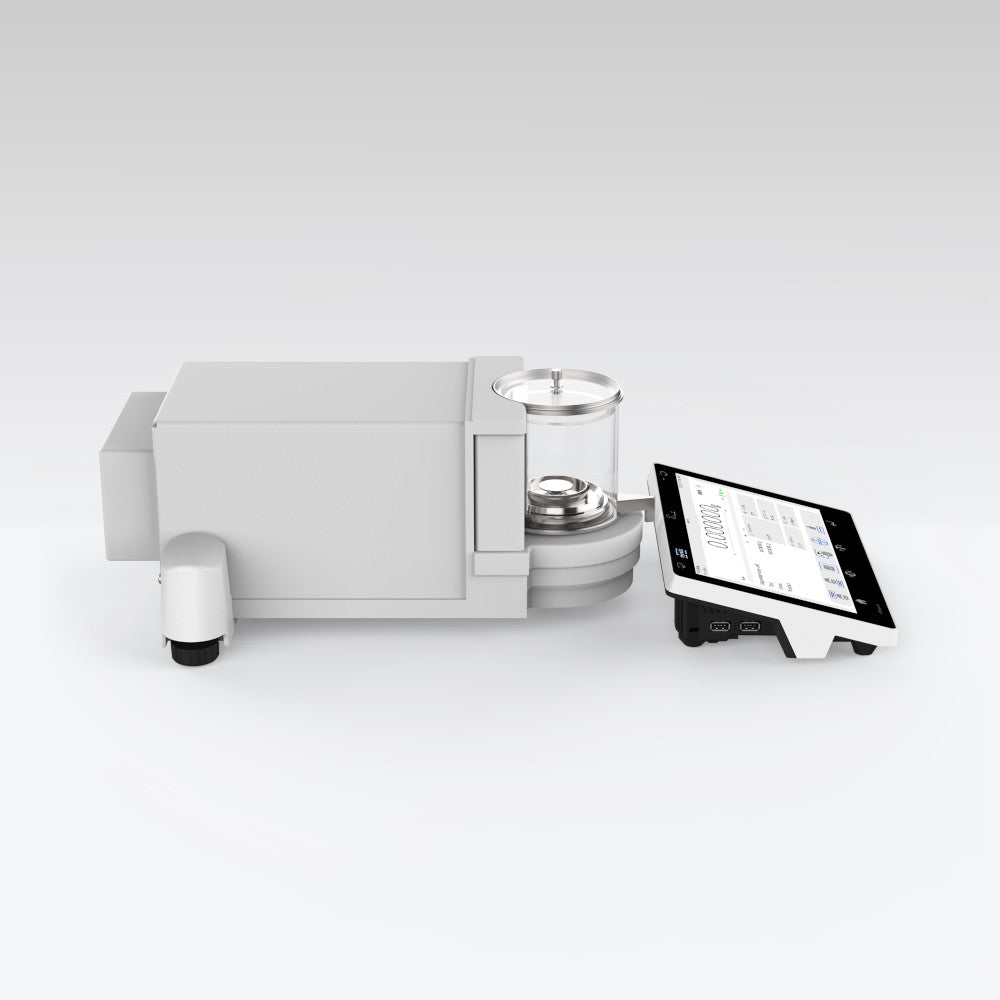

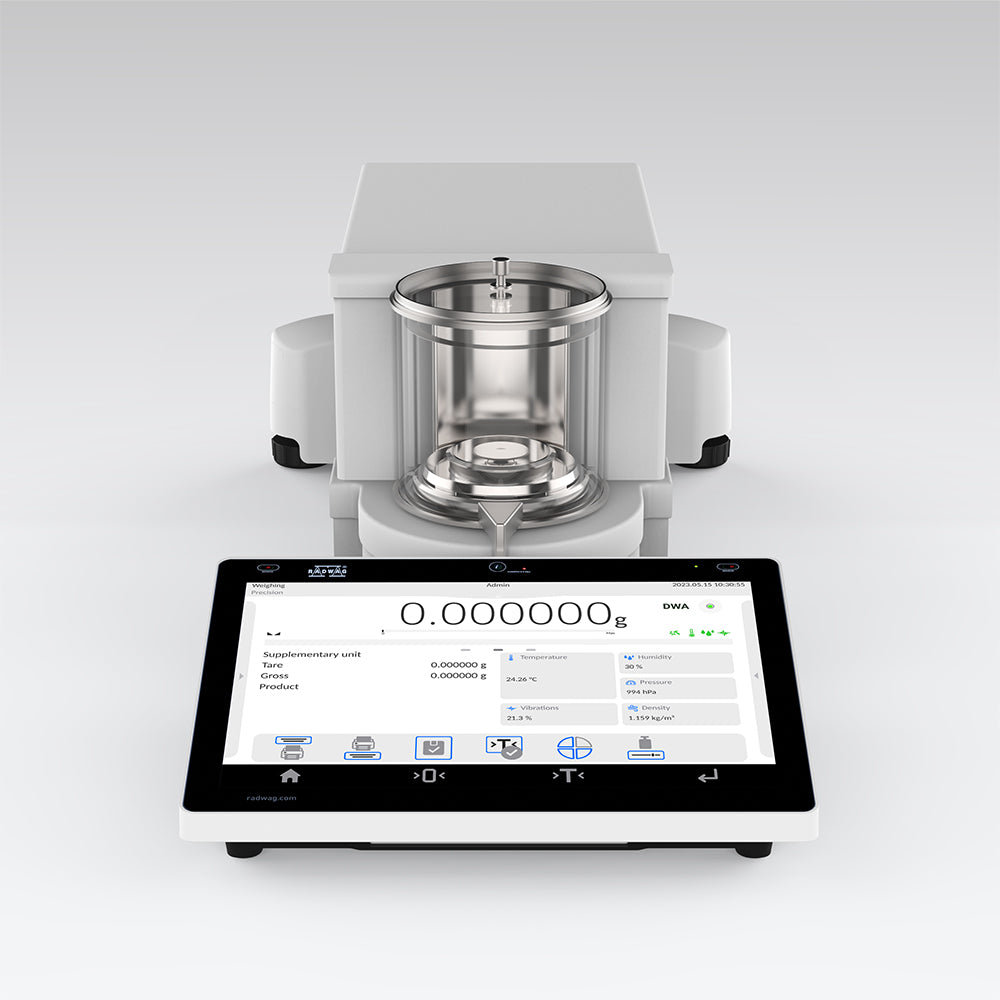

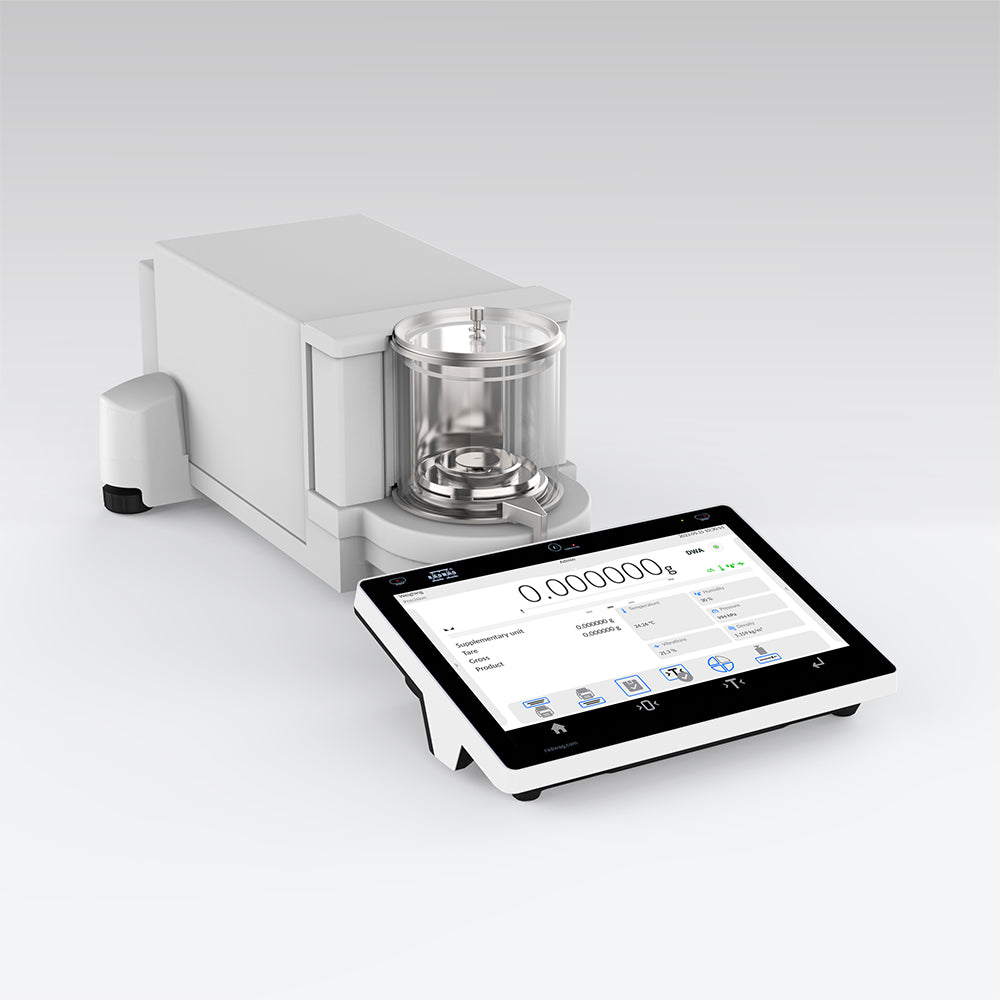

MYA 11/52.5Y Microbalance


MYA Microbalances are very precise laboratory devices. They have unmatched repeatability values, their readability is impressively high (from 1 µg), and their maximum capacity – very small (to 52 g). It is these three features that make MYA Microbalances excellent weighing devices for very small masses, used in research laboratories, including pharmaceutical, physical, chemical, biological and medical ones. Thanks to the best weighing parameters, the microbalances of this series will prove themselves in the most advanced laboratory processes.



What Are the Benefits of Choosing MYA Microbalances?

What Are the Benefits of Choosing MYA Microbalances?

MYA Microbalances have the world’s lowest reading unit [d] 1 μg and the lowest minimum weight [USP] 0.82 mg. They are equipped with an automatic, draft-proof weighing chamber and have a fully automatic levelling system.

We offer a large selection of MYA Microbalance models, and thus a wide spectrum of readability and maximum capacity, which translates into a variety of applications for this series of balances.



Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:


Digital Weighing Auditor

Digital Weighing Auditor

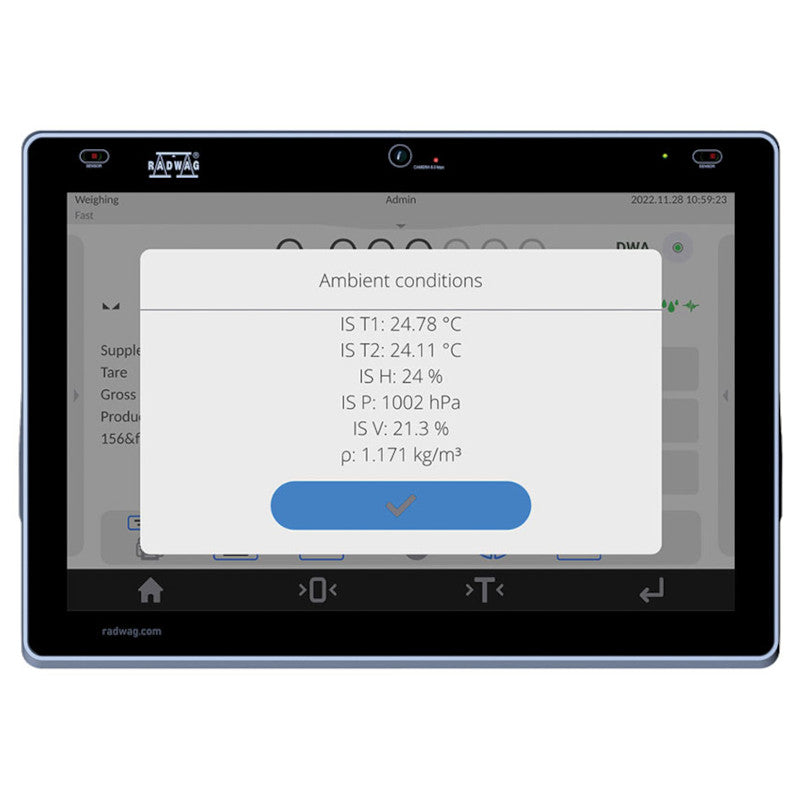

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

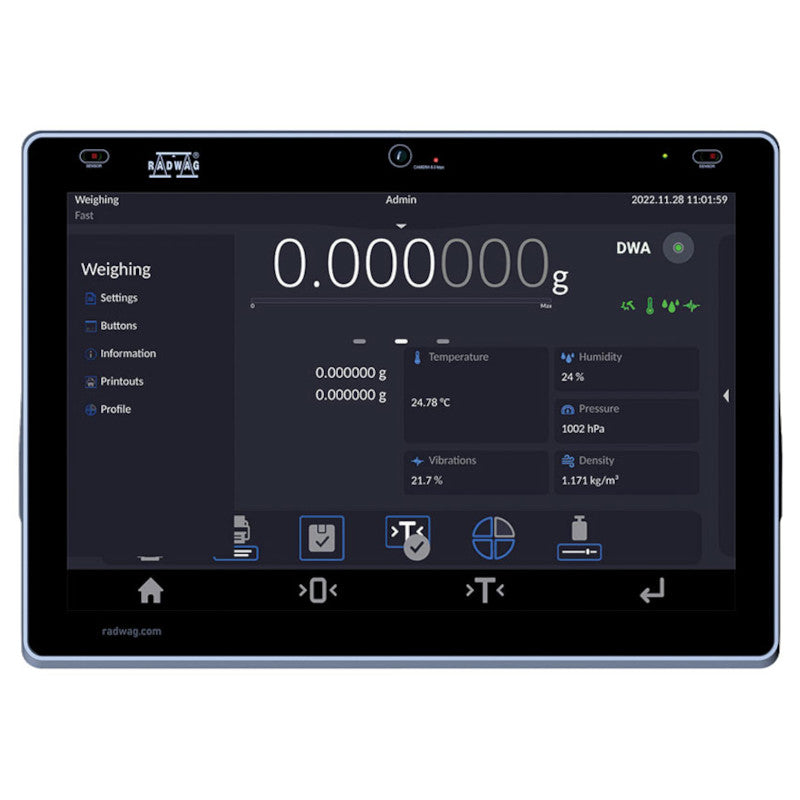

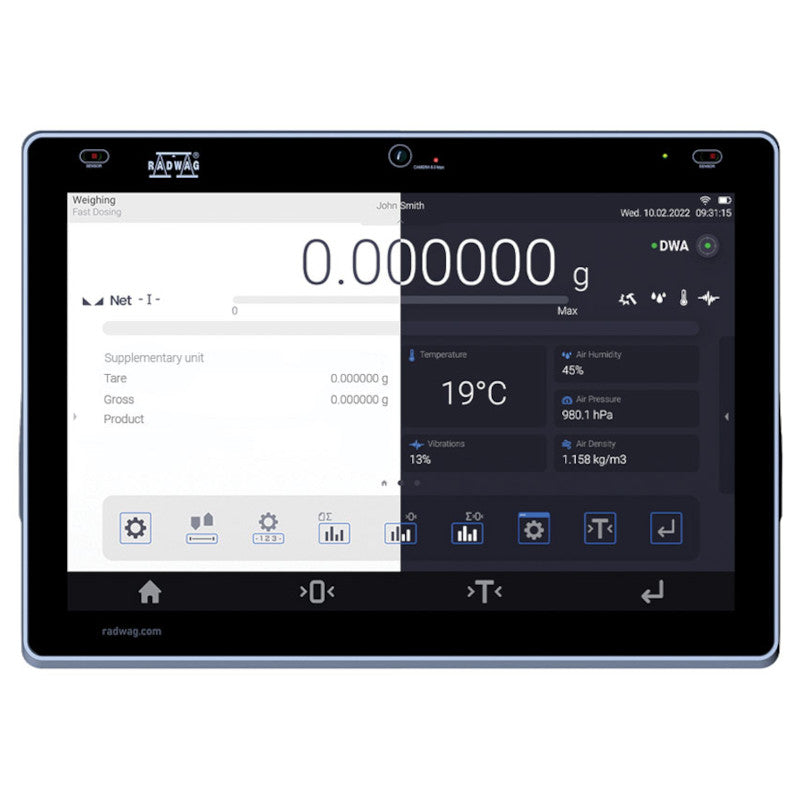

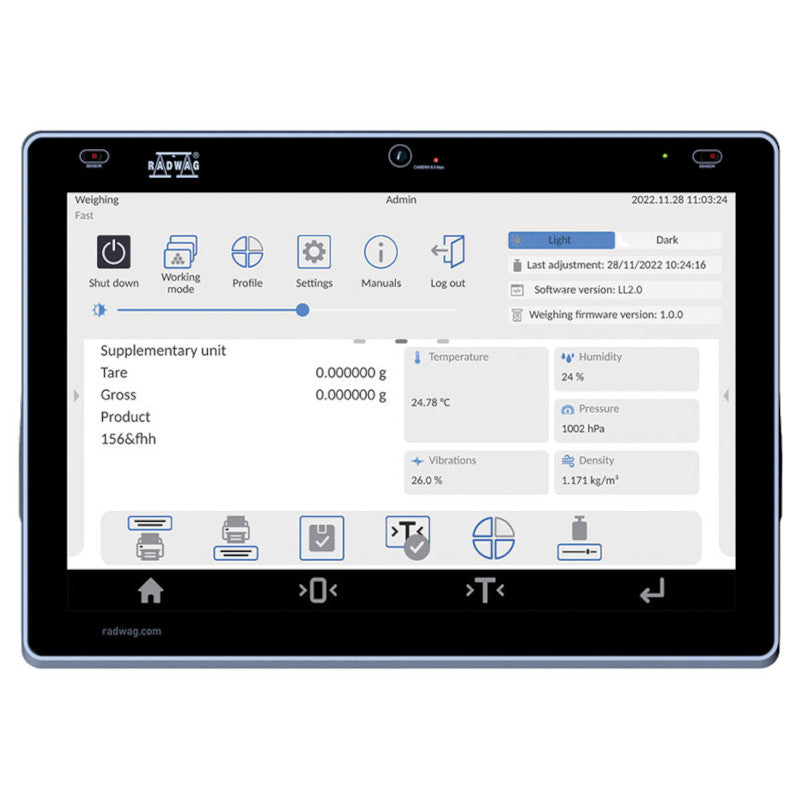

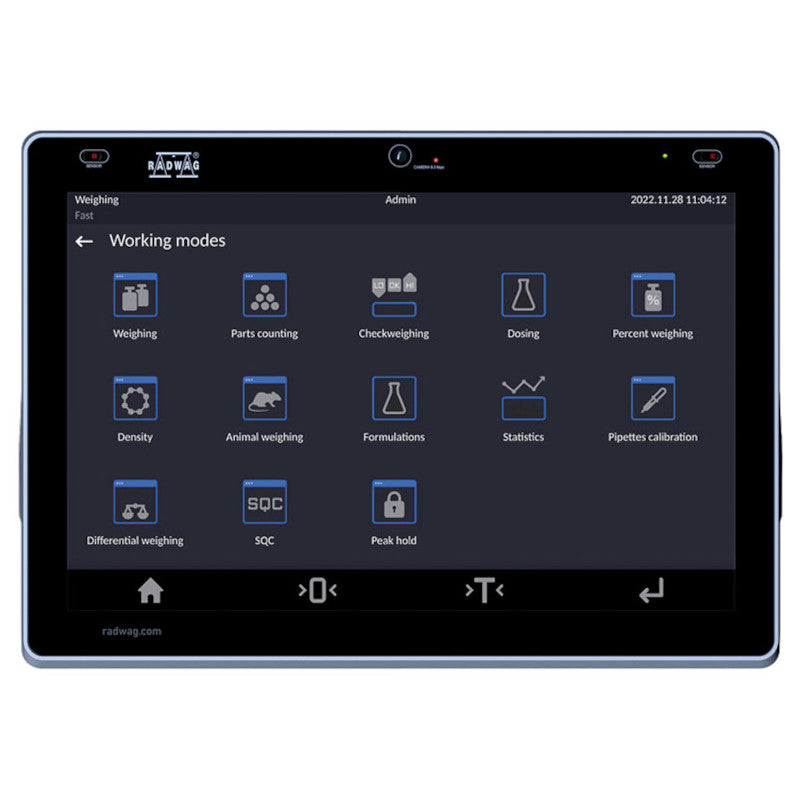

10-Inch Display

10-Inch Display

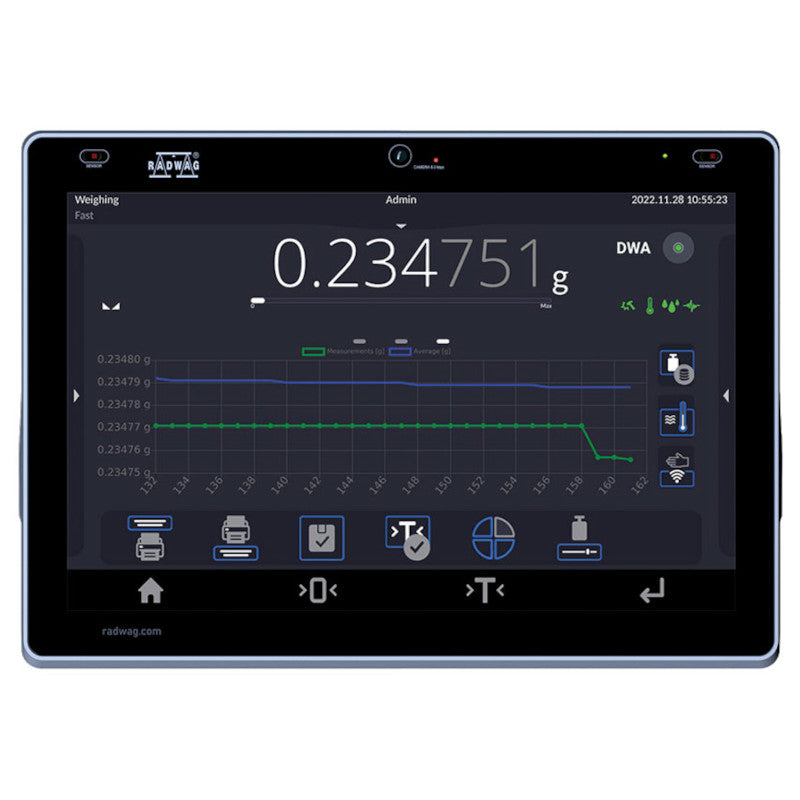

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.



Uncompromising User Verification

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.



Ambient Light – An Innovative Way for the Balance to Communicate With the User

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.



Hotspot

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.



RFID

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.



Live Note – Note Down Your Conclusions

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

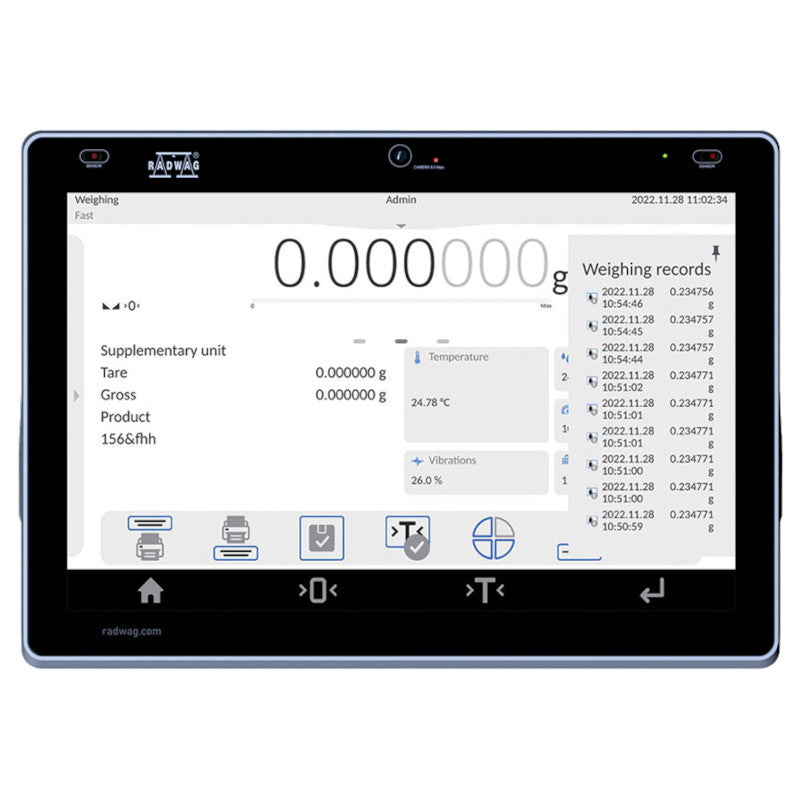

Handy Library

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.



Widgets

Widgets

Prepared to display what you need most at any given moment.



Automatic Leveling of the Balance ReflexLEVEL System

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.



Smart Min Weight

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.



21 CFR Part 11

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails



Modbus TCP/IP

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.




Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.





* RFID ISO/IEC 14443 Type A, 13.56 MHz
