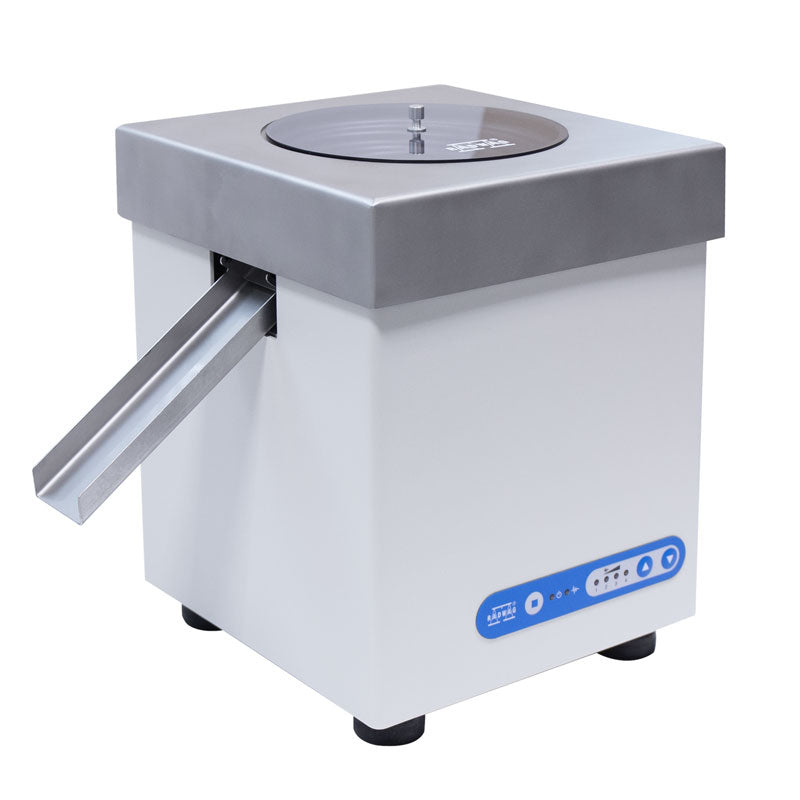

PA-04/H Automatic Feeder

PA-04/H Automatic Feeder

بائع: Radwag
رمز المنتج: WX-001-0105
التوفر: في الأوراق المالية
Dhs. 39,762.00 AED
Dhs. 39,762.00 AED
المجموع الفرعي: Dhs. 39,762.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

PA-04/H Automatic Feeder

Radwag

PA-04/H Automatic Feeder

Dhs. 39,762.00
PA-04/H Automatic Feeder

Radwag

PA-04/H Automatic Feeder

Dhs. 39,762.00
مواصفات المنتجات
مواصفات المنتجات
x
Construction
Communication interface
Electrical parameters
Environmental conditions
Physical parameters
Protection class

IP 34

Communication interface

RS232

Power supply

100 – 240 V AC 50/60 Hz

Power consumption

95 W

Operating temperature

+5 – +40

°C

Device dimensions W x D x H

229×229×303

mm

Net weight

17

kg

Gross weight

26

kg

Diameter of fed objects

ø 3 – ø 25

mm

Feeder diameter

ø 180

mm

Throughput

1 – 15 pcs/min

Controling

external, from balance level

الشحن والإرجاع
الشحن والإرجاع
x


PA-04/H Automatic Feeder



The automatic feeder is dedicated for automatic dispensing of small objects onto the weighing pan of RADWAG-manufactured balance to which it is connected. The feeder ensures regular feeding of the elements in accordance with determined time intervals.

Operation and Compatibility
The PA-04/H feeder cooperates with XA 4Y and AS 3Y analytical balances and PS 3Y precision balances. Both the feeder and the balance are automated devices. The balance carries out analysis of dosed elements and sends signal to the feeder to dispense subsequent element. The feeder features diodes, signalling its operation, and keypad allowing to control the process. Automatic feeder is equipped with function of automatic emptying of the storage bin.

Vibrating Feeder
Cylindrical vibrating feeder with storage bin enables safe and precise dosing of elements. The storage bin has a conical and stepped shape and is continuously welded. The stainless steel surface of adequate roughness reduces elements grating during dosing process.

Variety of Applications
The feeder is appropriate for dosing pills of diameter ranging from 3 to 25 mm, round and oblong, as well as details of similar shapes and dimensions

Design
The device is equipped with powder-coated steel housing and stainless steel cover. The storage bin features transparent lid that allows verifying quantity of remaining elements.

Compatible with scales:
  • All analytycal XA 5Y.A
  • All analytycal XA 5Y
  • Microbalances:
    - XA 21.5Y.M.A
    - XA 21/52.5Y.M.A
    - XA 52.5Y.M.A
    - XA 53.5Y.M.A
  • Microbalances:
    - XA 21.5Y.M
    - XA 21/52.5Y.M
    - XA 52.5Y.M
    - XA 53.5Y.M

Note!
To make the feeder work, simply buy the PT0453 cable, which is not part of the set.
