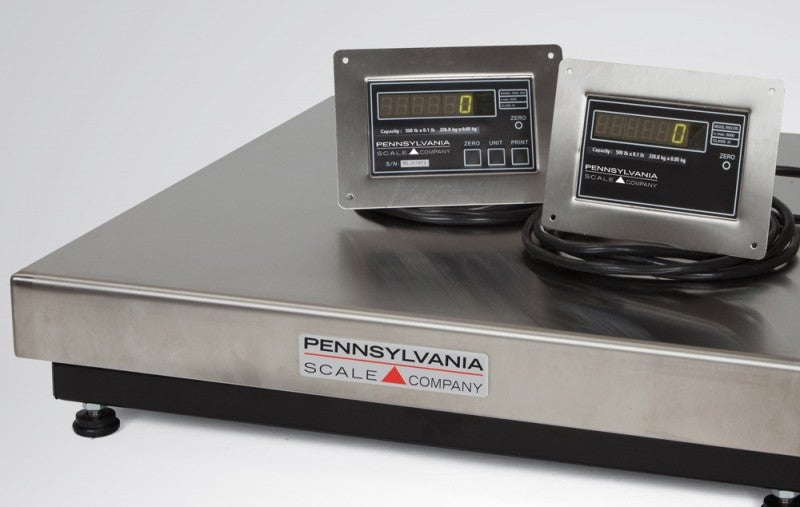

شركة Pennsylvania Scale Company M64-1824-250، سعة 250، ميزان أمتعة للخطوط الجوية مع ضمان لمدة عامين

Features:

• Capacity: 250 lb
• Superb performance and Sustained Accuracy
• Up to (4) four remote displays with/without buttons
• SS flush panel mount displays or custom surface mount
• Standard green or high intensity red LED displays
• Weighing 5000 divisions in two units of measure, typically lbs/kgs
• Suitable for commercial applications
• Ship fully calibrated and ready for installation
• Fully supported designs back to 1991; modular interchangeable parts
• Easy installation and attachment for bagwell or kiosk
• Simple calibration and maintenance
• True heavy duty construction
• Two-Year Limited Warranty
• Base Size: 18" X 24"

Specifications

• Universal PLUS+ series Main Board is interchangeable and retrofits existing scales
• Power 110/115 VAC 50/60 Hz or specify 220/240 VAC or DC power 12/24 VDC
• HD power cord to main controller and Y-cable to remote displays standard 10' (or specify longer length)
• Optional solid state relays or 12 VDC relay outputs for operator alerts
• Standard RS-232 output is versatile and programmable
• Sizes > 24" x 24" use (4) HD industrial SESB load cells for extra heavy duty performance, 3" nominal height with height adjustment and anchor plates
• Sizes < 24" x 24" use proven single point HD load cell and standard anchor brackets
• Buttons ZERO, UNITS, PRINT or no buttons as per application

Electronics Conversion Kit Package for Existing Platforms

• Wide range of capacities and resolutions; suitable for Commercial
• Applications up to 10,000 divisions
• Aluminum enclosure with (1), (2), (3), or (4) remote displays with 10' cables
• Remote displays with/without buttons ZERO, UNITS, PRINT
• AC power via HD power cord to CPU unit only
• Fast, easy calibration to existing platforms for remodeling situations
• Opening requirement for flush mount display: 5-3/4" x 3-1/2" - contact factory for drawings

Data Communication

• Standard fully programmable RS-232 communication
• DB9 connector or screw terminals for Send/Receive/Ground

Documents:

• Data Sheet

2 Year Warranty
