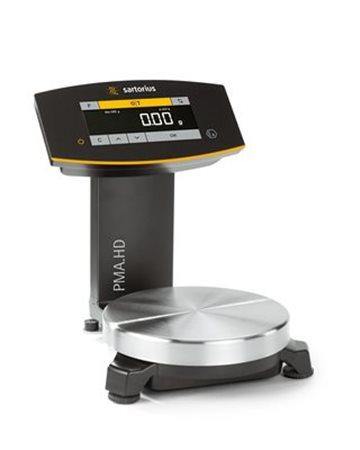

Sartorius LAB1X2N1 PMA.HD المنطقة الخارجية 1، 10 أمتار، 33 قدمًا

The PMA.HD is the ideal solution for Painters, shops, and labs where higher accuracy for smaller amounts is needed.

With a high 10mg (0.01g) resolution, the Ex Zone1/Class I, Division 1 approval and the ability to connect to your color software, the PMA.HD provides the ideal specifications for fast and effective results in your color development lab.

The ergonomic design uses a smaller footprint, saving space, and the superior display and versatile power options make the PMA.HD the ideal solution for your mobile repairs

• Higher accuracy for smaller amounts
• Ideal solution for mobile applications
• Versatile USB power options
• Software compatibility

Specifications:

• Dust / Water Protection According to IEC 529: IP 40
• Ex Approval/Zone: Ex zone 1
• Data Interface: USB, Type B
• Cable Length: 10 m
• Depth: 294 mm
• Dimensions: 8.3 inch x 11.6 inch x 10.3 inch
• Height: 261 mm
• Weighing Pan Diameter: ? 180 mm
• Width: 212 mm
• Calculation by Factor Function (to mix fractional amounts): 0.25 - 6.0
• Display: High contrast B & W
• Readability: 0.01 g
• Maximum Weighing Capacity: 2,200 g
• Power Consumption: 2.0 W
• Power Plug: EU / UK / US
• Power Requirements: 100 - 240 V~, -10 % / +10 %
• External Calibration Weight: 1, 2 kg (class F1 or better)
• Temperature Range: +5 degree C - +40 degree C
• Net Weight, approximate: 3.3 kg

Brochure
PMA.HD When every drop counts

User Manual
PMA.Evolution | PMA.HD - EVO1X | LAB1X - Paint-Mixing Scales for Use in Potentially Explosive Atmospheres
