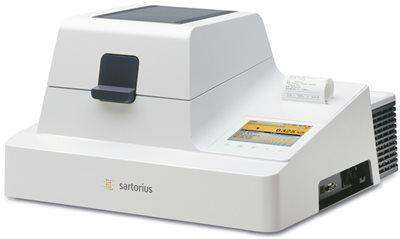

جهاز تحليل الرطوبة Sartorius LMA200PM-000US، قياس الوزن الحراري

In addition, an air humidity sensor monitors the progress of a moisture analysis, thereby providing twice the certainty to guarantee reliable results.

• Can be used for liquid and pasty samples with a moisture content from approx. 8 to 100%
• Analysis time approx. 40 - 120 seconds (depends on sample type and moisture content)
• Easy two-button operation for routine moisture measurements
• End point determination: Fully automatic, using mass and humidity sensors; User defined as loss and weight / unit of time for measurement; Timer mode
• Built-in analytical weighing system with a capacity of 70 g and a resolution of 0.1 mg for weight values

Specification:

• Data printer: Built-in thermal printer
• Application: Very moist samples, fluid or pasty
• 1x RS232 port for PC
• 1x Ethernet port
• Dimensions (WxDxH): 510 mm x 535 mm x 304 mm
• Heating power control: 2-100%, adjustable in 1% increments
• End point determination: Fully automatic, through mass and humidity sensors; User defined as loss and weight / time unit: 1-50 mg / 1-99 sec., 0.1-9.9% / 1-99 sec .; Timer mode: 0.1 - 99.9 min.
• Readability: 0.1 mg, 0.001%
• Presentation mode for results: % moisture, humidity ppm,% volatile components,% dry weight (solids), dry weight ppm, dry weight g, weight loss mg,% REASON
• Maximum number of programs: 320
• Operator guidance: Through menus, alphanumeric dialog text (English, French, German, Italian and Spanish available); 5 pre-programmed function keys
• Moisture measurement report: GLP report defined by the user; The report can be printed on paper without fading by the built-in thermal printer
• Reproducibility (repeatability) on average for initial sample weights of 1 g or greater (%): +/- 0.05
• Heating unit (choice of): Microwave generator with 1000 W power input
• Maximum weighing capacity: 70 g
• Maximum power consumption: 1200 VA
• Recommended humidity range: 8 - 100%
• Line frequency: 50 Hz
• Line tension: 115 V
• Type of sample holder: Fiberglass bases, diameter 90mm (3.5 ")
• Analysis time: Approx. 40-120 (depends on type of sample and moisture content)
• Heating source: Microwave radiation for ultra-short measurement times
• Weighing system accuracy: 0.0001 g
• Weight: 22 kg

Data Sheet

• Sartorius LMA200PM - Speed ??meets analytical precision
• Sartorius LMA200PM - Where speed meets analytical precision

User Manual

• Microwave moisture analyzer - Model LMA200PM
• Sartorius Microwave Moisture Analyzer - Model LMA200PM
