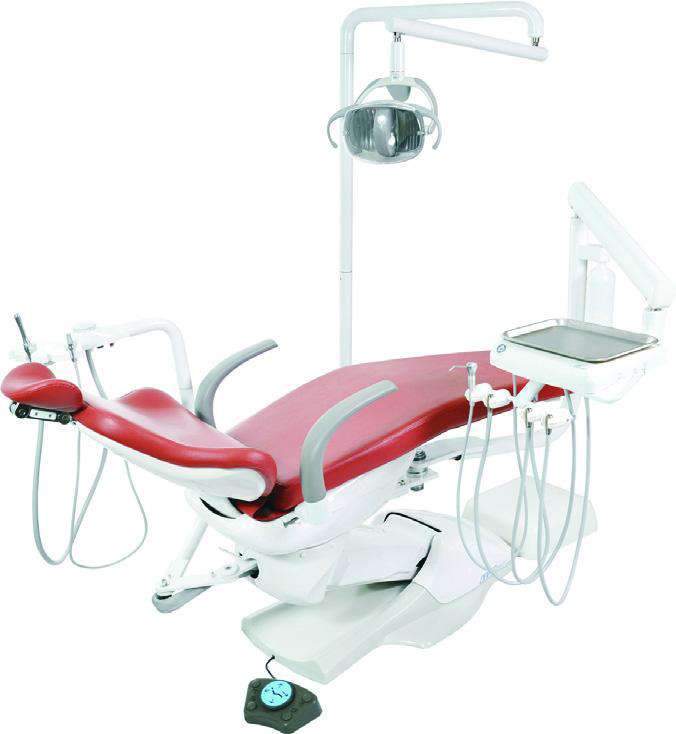

نظام التشغيل TPC Dental MSP3500-LED550 Mirage Swing Mount مع ضوء L550-LED

Packages include the following:

4000 Hydraulic patient chair with wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 4 programmable positions with automatic return and foot contro.

3500 Rotating asepsis 3 Handpiece automatic control with coolant controls, ex arm with air brake, diaphragm block design, wet/dry variable speed foot control, deluxe utility center with air /water lters and regulators, master shut o valves. Includes 3 way syringe and clean water system.

3550 Rear radius asepsis assistant's arm system, Hve and saliva ejector, water quick disconnect and solids collector.

Packing Dimensions

• Chair: 54 x 34 x 31 - 310 lbs
• Cushion: 51 x 24 x 10 - 27 lbs.
• 3500: 44 x 36 x 27 - 103 lbs.
• 3550: 21 x 20 x 16 19 lbs.
• LP100: 38 x 7 x 30 27 lbs.

Five Year Warranty

Options:

• 3500 Mirage swing mount unit with chair bracket (for TPC chair only)
• 3550 Mirage rear swing mount suction package (for TPC chair only)
• LP-100 Mirage swing mount light post (ordered w/unit)
• LP-105 Mirage swing mount monitor post with monitor mounting bracket (ordered w/unit)
• L600-LED Lucent LED Operatory Light
• L690-LED Lucent LED Ceiling Mounted Operatory Light
• TPC3WAY-PR T Additional autoclavable 3 way syringe with tubing
• P2330+TB Deluxe autoclavable Hve valve with tubing
• WIC800 Standard flat screen monitor bracket
• WIC825 Deluxe flat screen monitor bracket with 16" extension
• WIC840 Mirage flat screen monitor bracket with 16" extension
• MO17 17" LCD multi media flat screen monitor
• H7000 Illumination System - ISO B (5 hole) - tubing, control box, bulb, power supply
• H7040 Illumination handpiece tubing - 5 hole
• H7070 Fiber optic bulb cartridge
• H7660 Illumination System - ISO C (6 pin) - tubing, control box, power supply
• H7045 Illumination handpiece tubing - 6 pin
• XV100 Super thin X-ray film viewer
• XV150-R X-ray film viewer bracket (curved) for TPC Mirage Unit only
• TPCRDSBRKT TPC Radius Bracket
• 53016-L Disposable Solids Collector Trap 2 1/8" (pack of 100)
• EMB-901 Built in Electric Motor System
