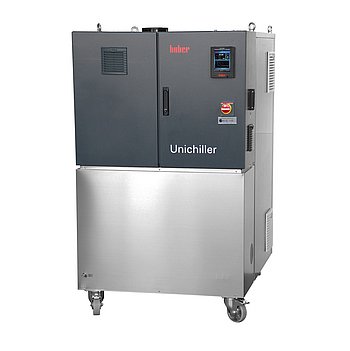

Unichiller 700Tw-H

Unichiller 700Tw-H

Performance Characteristics Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water...
بائع: Huber
رمز المنتج: 3032.0007.01
التوفر: في الأوراق المالية
نوع المنتج: Chillers up to 80 kW
Dhs. 1,206,946.00 AED
Dhs. 1,206,946.00 AED
المجموع الفرعي: Dhs. 1,206,946.00
الشروط والأحكام

Estimated Delivery 10-14 business day

ًالشحن مجانا

شحن قياسي مجاني على الطلبات التي تزيد قيمتها عن 99 دولارًا

إرجاع مجاني

يتعلم أكثر.

تم تصنيعها وشحنها خلال 5 - 7 أيام عمل

Unichiller 700Tw-H

Huber

Unichiller 700Tw-H

Dhs. 1,206,946.00
Unichiller 700Tw-H

Huber

Unichiller 700Tw-H

Dhs. 1,206,946.00
مواصفات المنتجات
مواصفات المنتجات
x

Temperature range -20...100 °C
Temperature stability ±0,2 K
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 1000 x 1100 x 1635 mm
Weight, net 634 kg

Heating capacity 2,6 kW
Cooling capacity
15 70
0 50
-10 30
-20 20

°C

kW
Refrigeration machine water-cooled, CFC- and HCFC-free
Refrigerant 1st stage R-449A (A1, H280)
Refrigerant quantity 1st stage 6 kg

Delivery capacity pressure pump max. 234 l/min; 4,9 bar
Pump connection G1 1/4 AG male
Pump speed adjustable no
Pump type D3
Pump characteristics Pressure pump, speed not variable

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Filling volume min. 12,7 l
Expansion volume 7 l
Cooling water connection G1 1/4 male
Cooling water consumption at 15°C, flow -10°C 1980 l/h
Cooling water consumption at 15°C, flow 0°C 2940 l/h
Cooling water consumption at 15°C, flow 15°C 3780 l/h
Cooling water differential pressure min. 1,5 bar
Cooling water pressure max. 6 bar
Power supply 460V 3~ 60Hz
الشحن والإرجاع
الشحن والإرجاع
x

Functions overview

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Powerful circulation pump
  • Intelligent energy management
  • Reliable continuously operation with warning functions
  • Pilot ONE controller with 5.7" touchscreen
  • Digital filling level indicator
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Heater options available

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more
